Scanner
D0CA/D0C9/D0C8/D0CB 4-72 SM

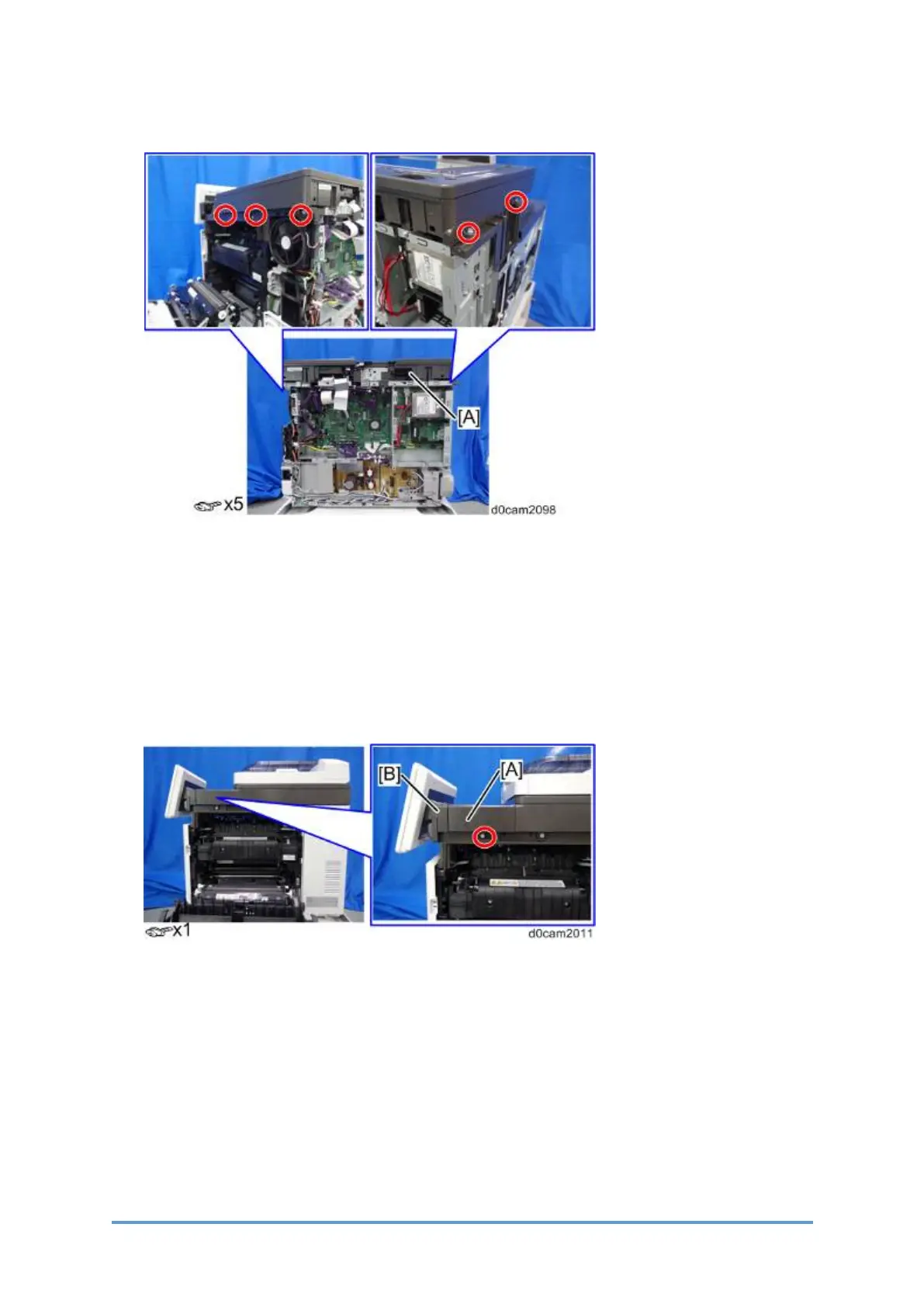

7. Remove the scanner unit [A].
4.7.2 SCANNER UNIT WITH THE ADF
1. Remove the following parts
• Rear Cover
• Right Rear Cover
• Upper Left Cover
2. Remove the front right cover [A] and the hinge cover [B].
3. Remove the scanner rear cover [A] and scanner rear small cover [B].
To Next Page
