Ricoh IM C300

Input and Output Check
SM Appendices
3-461 D0CA/D0C9/D0C8/D0CB
Appendices
SP Mode Tables
No. Part Name SP Name SP No. Remark
4 PFU transport motor 1 (M1) PFU Transport Motor 1: High 5-804-080 Tray 1
PFU Transport Motor 1: Low 5-804-081 Tray 1
PFU transport motor 2 (M1) PFU Transport Motor 2: High 5-804-082 Tray 2
PFU Transport Motor 2: Low 5-804-083 Tray 2
PFU transport motor 3 (M1) PFU Transport Motor 3: High 5-804-115 Tray 3
PFU Transport Motor 3: Low 5-804-116 Tray 3
5 PFU paper feed clutch 1 (CL2) PFU Paper Feed CL1 5-804-084 Tray 1
PFU paper feed clutch 2 (CL2) PFU Paper Feed CL2 5-804-085 Tray 2
PFU paper feed clutch 3 (CL2) PFU Paper Feed CL3 5-804-117 Tray 3

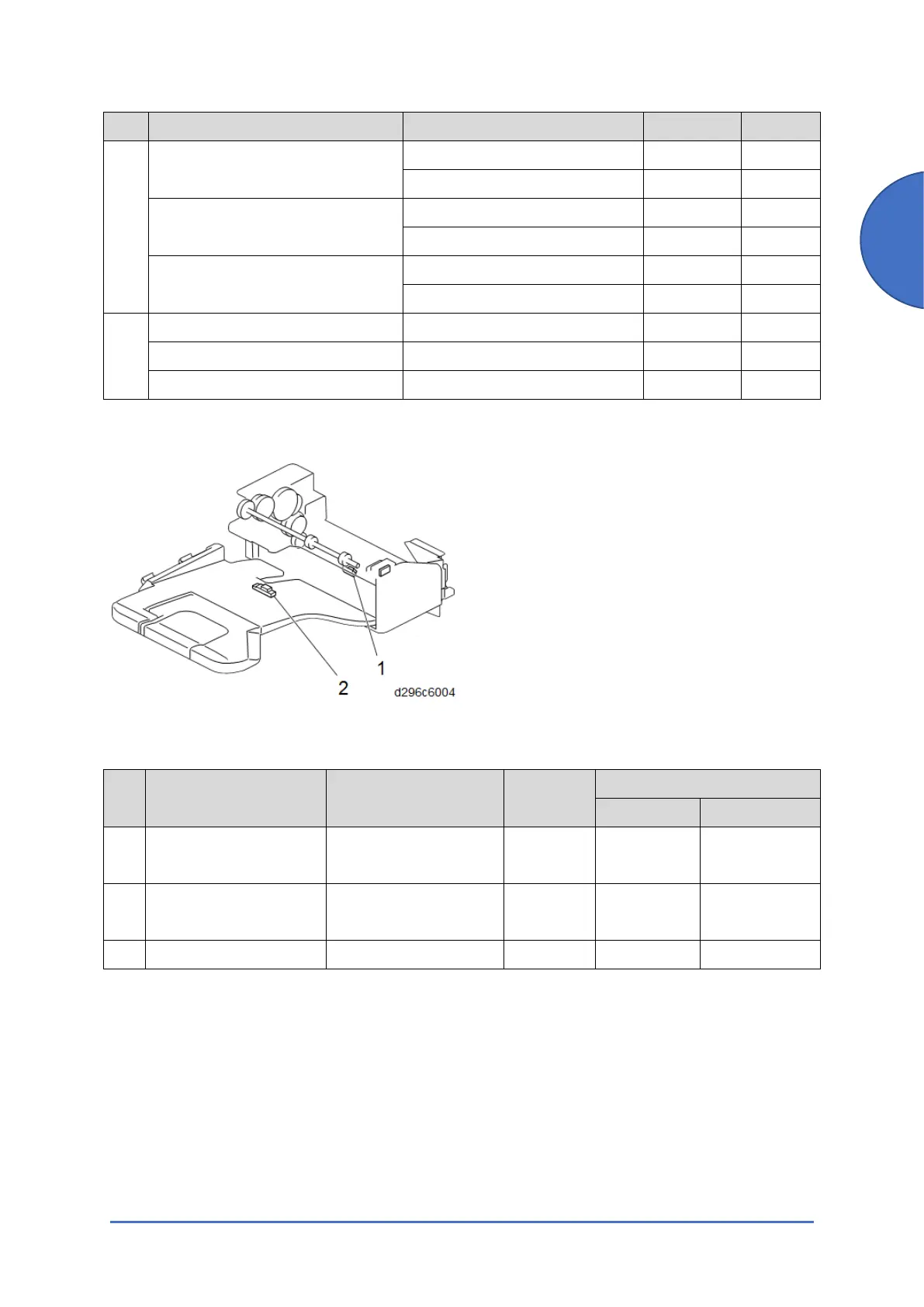

3.13.11 1 BIN TRAY UNIT (BASIC MODEL)
Input Check
No. Part Name SP Name SP No. Reading
0 1
1 1-bin tray exit sensor 1-Bin:Exit Sensor 5-803-050 Paper
detected
Paper not
detected
2 1-bin tray paper
remaining sensor
1-Bin:Paper
Remaining Sensor
5-803-051 Paper
detected
Paper not
detected
- - 1-Bin: Set Detection 5-803-052 Set Not set
