Scanner
SM 4-83 D0CA/D0C9/D0C8/D0CB
&
Adjustment

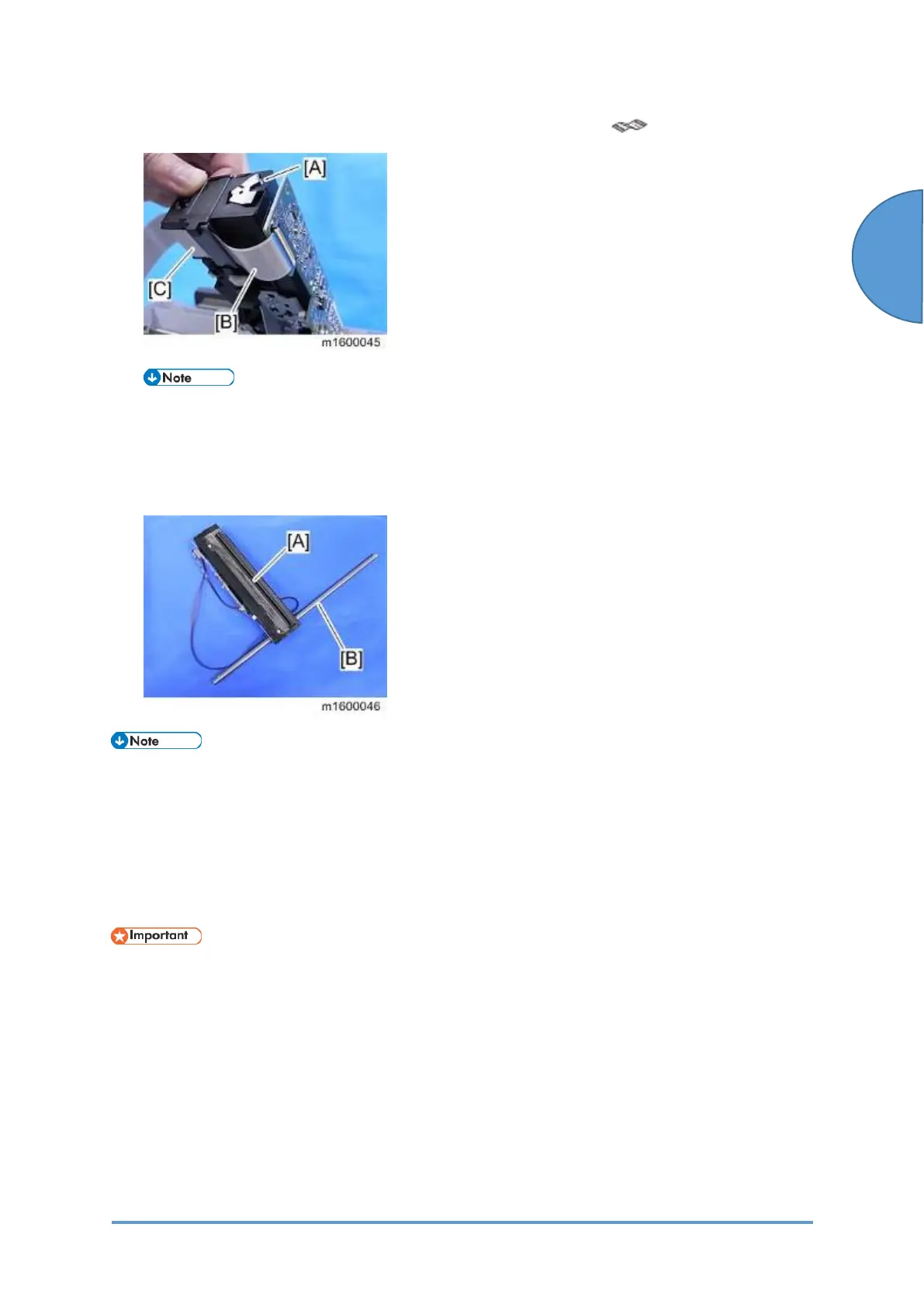

7. Disconnect the FFC [B] while lifting up the scanner carriage [A]. ( x1)
• In the area [C], the FFC is attached with double-sided tape. Do not try to strip the
FFC [B] off by force.
• When reassembling, be sure to align the tape position where originally attached.
8. Remove the shaft [B] from the carriage [A].
• Never wipe off the grease on the shaft of the scanner carriage.
Reinstalling the Scanner Carriage
Make sure that the FFC of the carriage is correctly connected and routed referring to the
following points.
• The FFC [A] must be connected straight, and not at an angle.
• Never connect the FFC to the carriage connector at an angle. Otherwise, the BiCU
(PCB1) or the SBU (PCB11) may be damaged.
