ITB/ Paper Transfer
D0CA/D0C9/D0C8/D0CB 7-62 SM

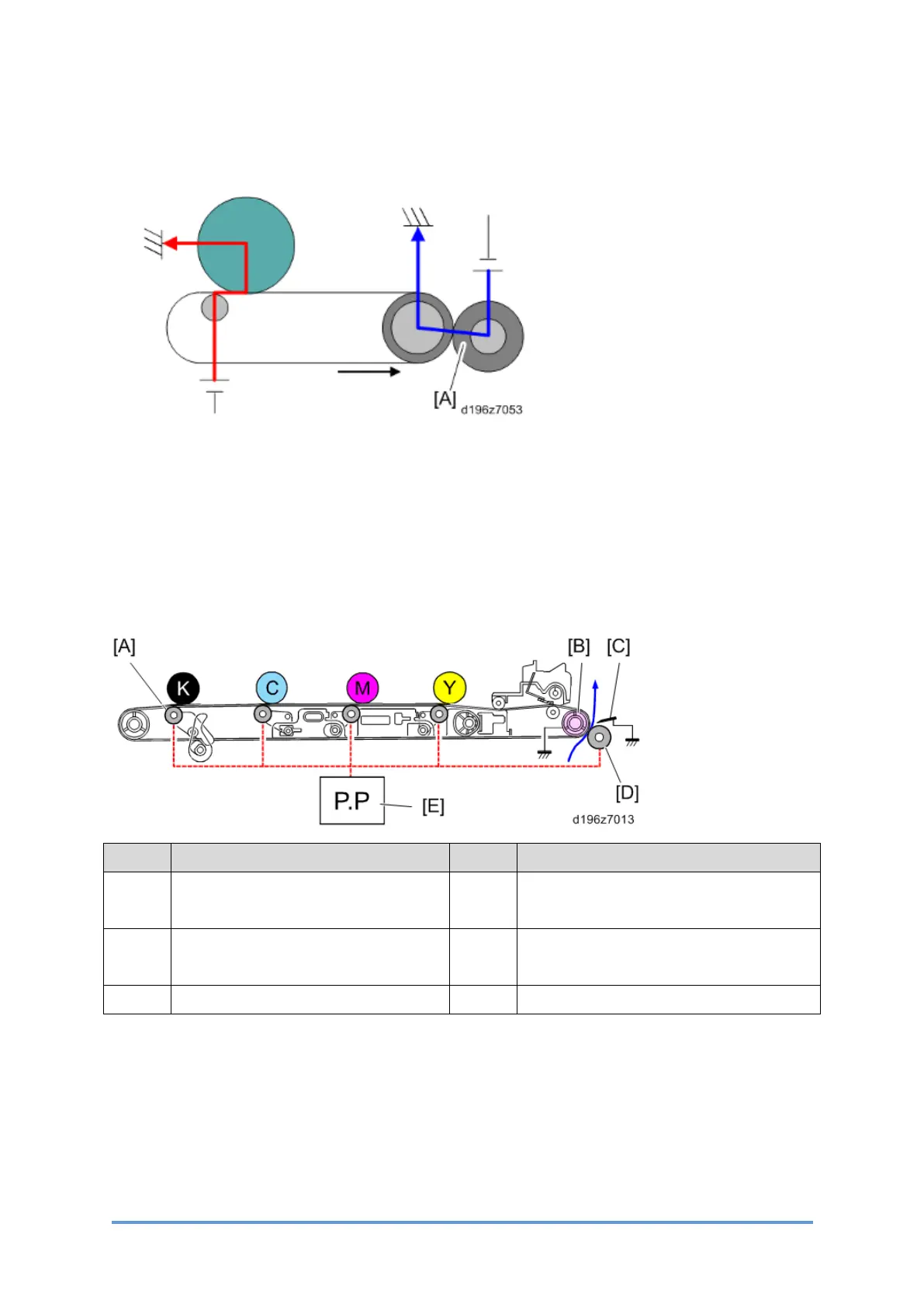

• Indirect Image Transfer + Attraction Transfer Method :
There is an attraction method where bias is applied to the paper transfer roller [A].
7.9.3 TRANSFER BIAS
The High-Voltage Power Supply (Transfer) (PCB23)[E] applies a transfer bias to the image
transfer roller [A].
The ITB drive roller [B] and discharge plate [C] are grounded through a diode.
There is no contact/release mechanism for the paper transfer system, which the previous model
uses, to reduce noise.
Callout Item Callout Item
[A] Image Transfer Roller (First Transfer
Roller)
[D] Paper Transfer Roller
[B] ITB Drive Roller [E] High-Voltage Power Supply (Transfer)
(PCB23)
[C] Discharge Plate - -
