• Install the PSU exhaust fan (FAN4) with its label facing the inside of the machine.
4.19.11 PCDU COOLING FAN (FAN3)
1. Remove the upper left cover. (Upper Left Cover)
2. Remove the left cover. (Left Cover)

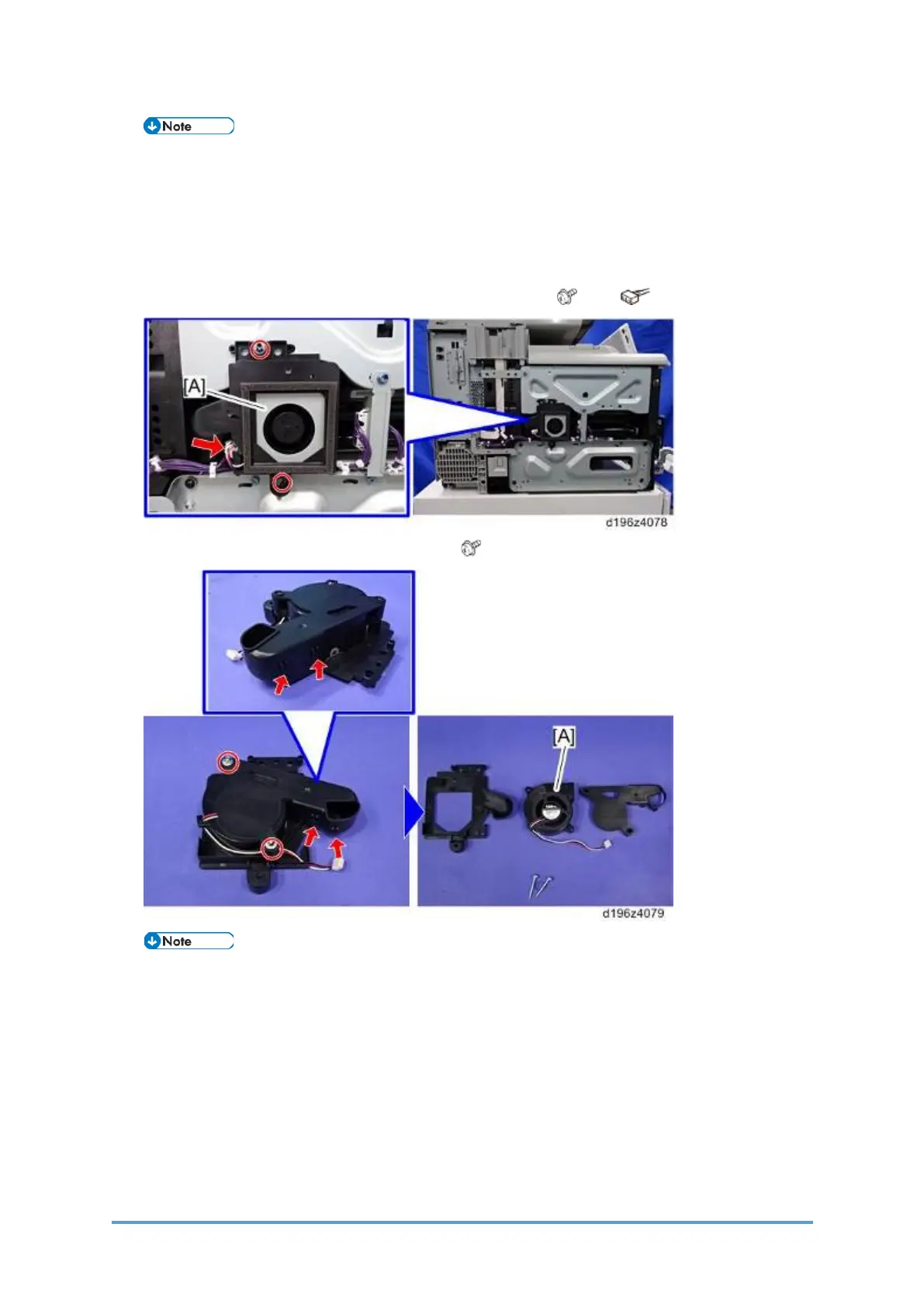

3. Remove the PCDU cooling fan (FAN3) [A] with the duct. ( × 2, × 1)
4. Remove the PCDU cooling fan (FAN3) [A]. ( × 2, hook × 4)
• Install the PCDU cooling fan (FAN3) with its label facing the inside of the machine.
