Dehumidification Heater (main unit)
D0CA/D0C9/D0C8/D0CB 2-112 SM
2.18 DEHUMIDIFICATION HEATER (MAIN UNIT)
2.18.1 ACCESSORY CHECK FOR IM C300 SERIES

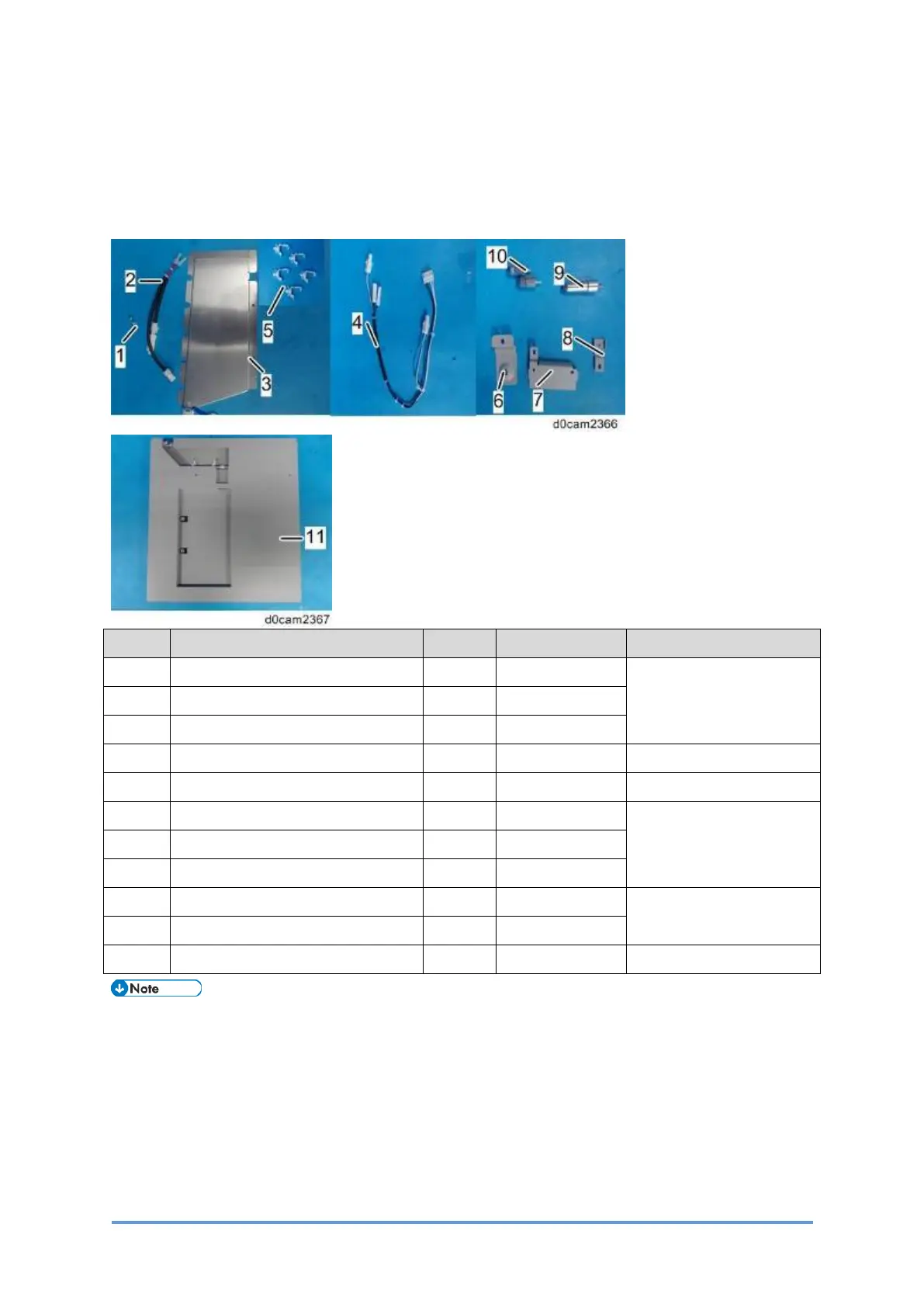

No. Items Q’ty Remarks See Note *2
1 Screw M4 x 6 2 A: Heater Kit
2 Harness 1
3 Heater 1
4 Harness 1 *1 B: Harness
5 Clamps 5 A: Heater Kit
6 Bracket 1 C: Bracket Set
7 Bracket 1
8 Bracket 1
9 Locating pin (Long) 1 E: Pin Set
10 Locating pin (Short) 1
11 Base 1 D: Base Set
• *1 This harness (P/N: D1965265) is also used as a harness for Dehumidification
Heater (PFU), and Anti-condensation Heater. If you have already ordered this harness
for these heaters, it is not necessary to order this harness again at this time.
• *2 All the accessories required to install the dehumidification heater (main unit) are
available as the following kits or components. Order these separately from the heater:
A: Heater Kit (D5730400 for NA/TWN, D5730401 for EU/AA/CHN)
B: Harness (D1965265)
C: Bracket Set (D1965093)
To Next Page
