Ricoh IM C300

Bypass Tray
SM 7-93 D0CA/D0C9/D0C8/D0CB
Detailed
Descriptions
7.15 BYPASS TRAY

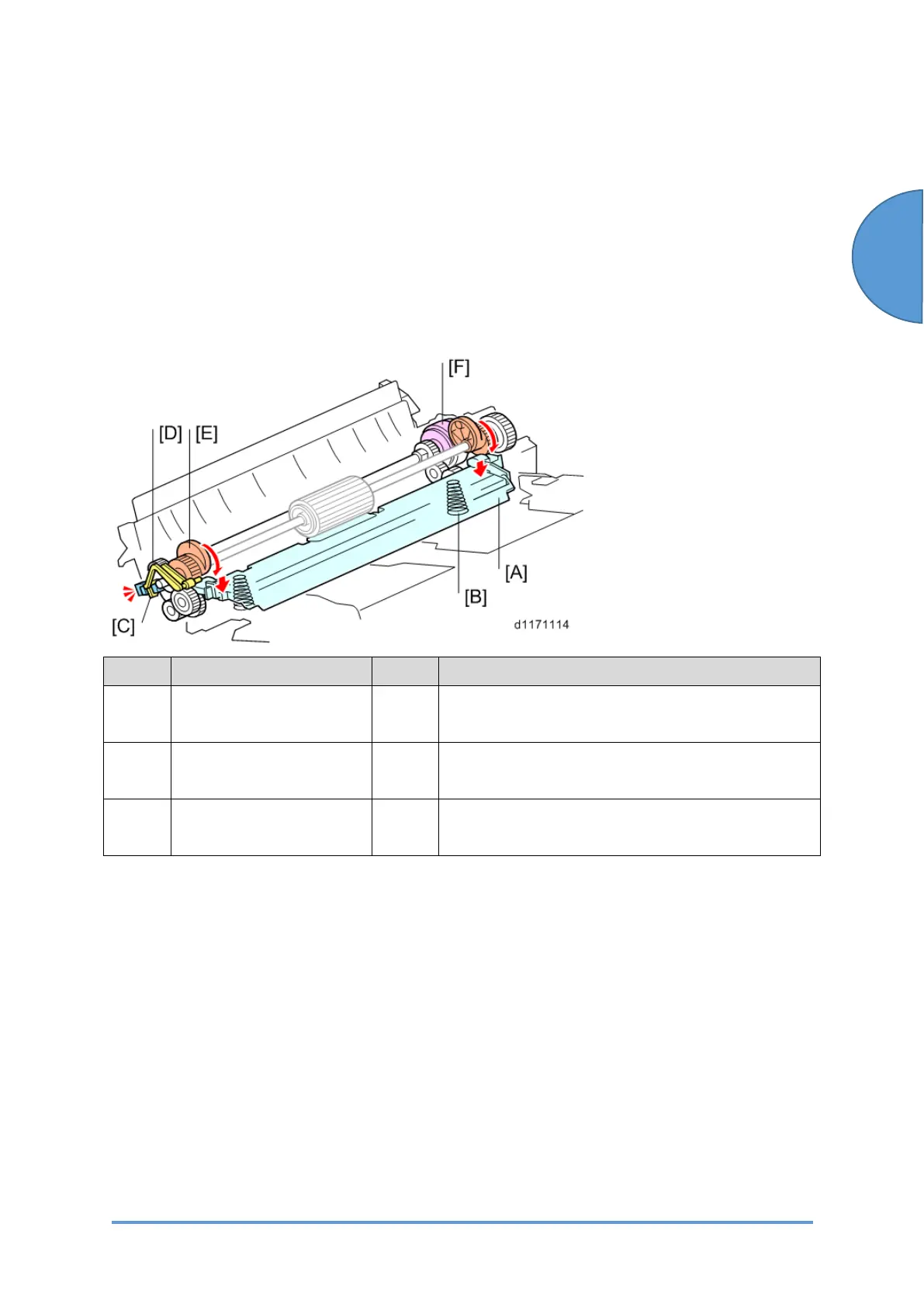

7.15.1 BYPASS TRAY BOTTOM PLATE LIFT MECHANISM
The paper transport motor (M12) rotates the bypass tray lift clutch (CL1) [F], and this moves the
bypass tray bottom plate [A] up and down.
The position of the bypass tray bottom plate lift cams (and because of this, the bypass tray
bottom plate) is detected by the bypass tray lift sensor (S4) [C].
Callout Item Callout Item
[A] Bypass Tray Bottom
Plate
[D] Actuator
[B] Pressure Spring [E] Bypass Tray Bottom Plate Lifting-up Cam (Front
and Rear)
[C] Bypass Tray Lift Sensor
(S4)
[F] Bypass Tray Lift Clutch (CL1)
