Image/Paper Transfer
SM 4-123 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.12 IMAGE/PAPER TRANSFER
4.12.1 ITB (IMAGE TRANSFER BELT) UNIT
Before replacing the ITB unit, reset the PM counter.
1. Turn the power ON.
2. Reset the PM counter. (Refer to Replacement Procedure of the PM/Yield Parts)
3. Turn the power OFF.
Remove the following parts.
• Waste Toner Bottle
• PCDU (Photo Conductor and Development Unit)
• Fusing Unit

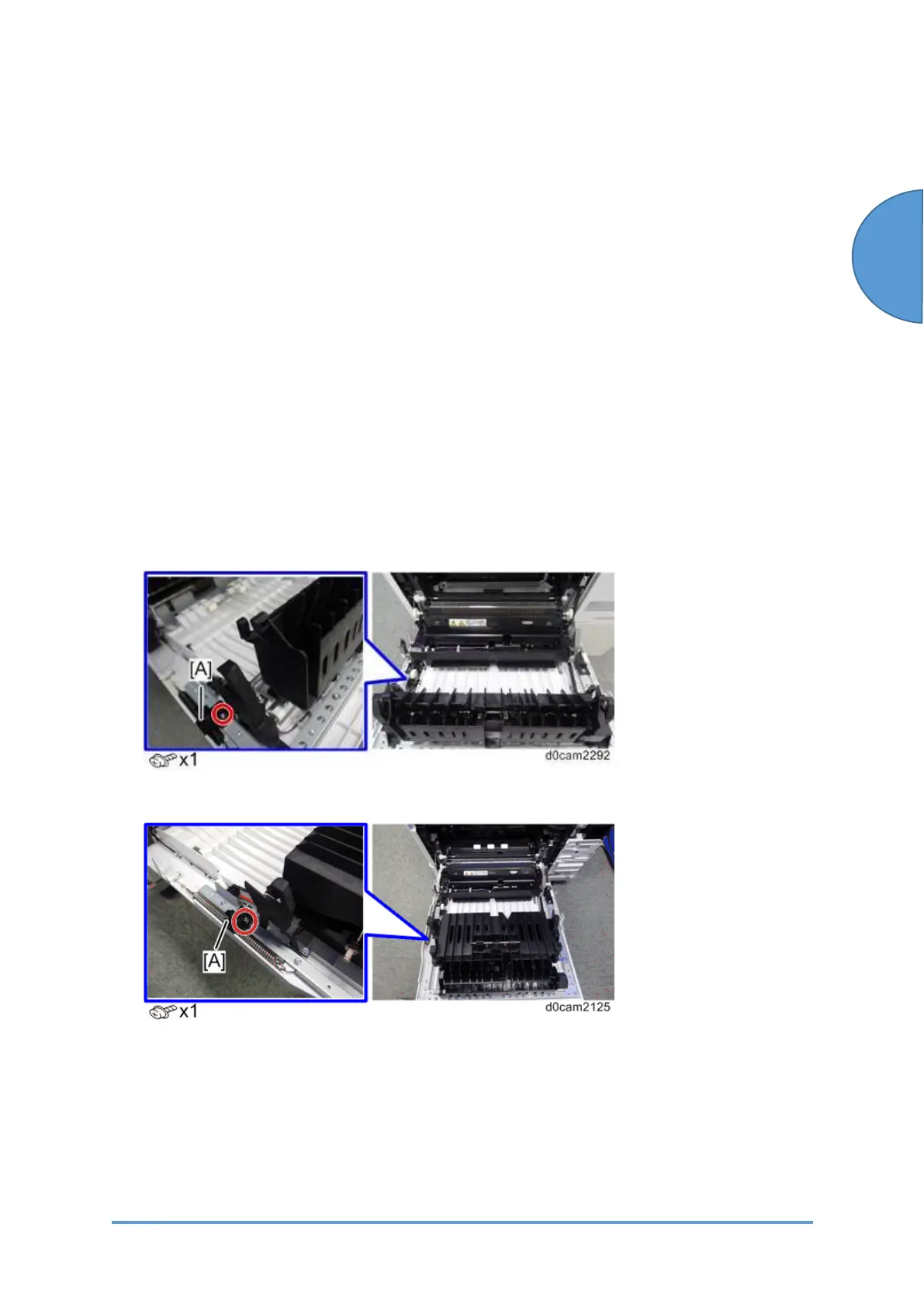

1. Remove the tension spring cover [A].
IM C300 series/IM C400F
IM C400SRF
2. Release the tension spring [A].
IM C300 series/IM C400F
To Next Page
