7. Press [Start Scanning].
The machine starts the ACC.
- Printer mode -
1. Then, Press [Start Auto Calibration] for "Printer Function".

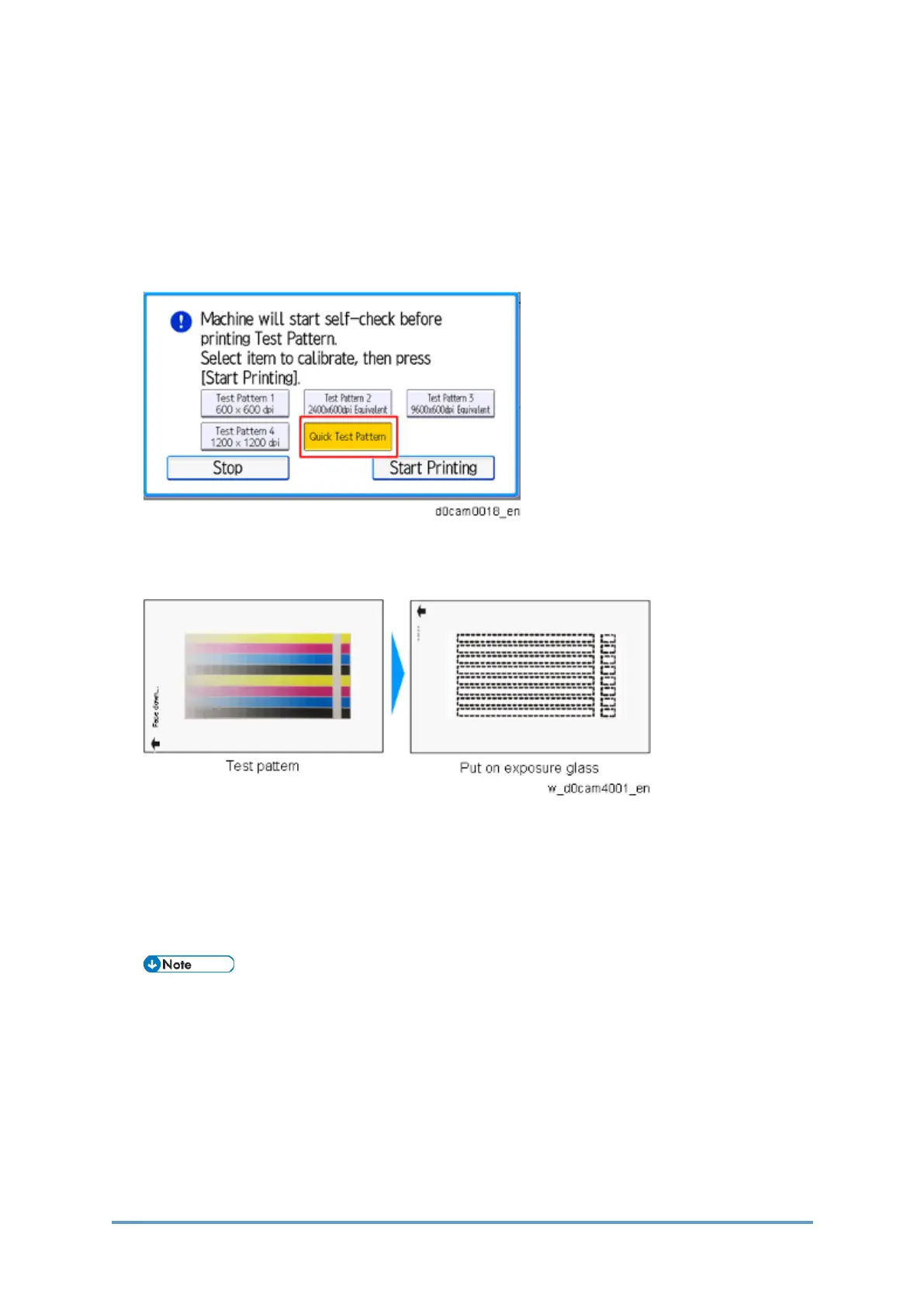

2. Press [Quick Test Pattern], then press [Start Printing] to print the test pattern.
The test pattern is printed after self-checking.
3. Place the test pattern on the exposure glass, then close the ADF.
Put 10 sheets of white paper on the test chart. This ensures the precise ACC adjustment.
4. Press [Start Scanning].
The machine starts the ACC.
5. Confirm that the execution result is displayed.
For the Quick Test Pattern, the execution result is recorded with all resolutions (patterns 1
to 4).
• If the printed image is not adjusted properly after executing Quick Mode, perform
ACC in normal mode (test pattern in applicable resolution) again.
Color Registration (Color Skew Adjustment)
Execute SP2 -111 -004 (Forced Line Position Adj.: Mode d) and check whether the value for
each color is within the range of ± 5 on the SP below.
• SP2-117-004 (K)
• SP2-117-002 (C)
