Paper Feed and Registration (IM C400 Series)
D0CA/D0C9/D0C8/D0CB 7-90 SM
7.13.6 TRAY AUTO-CLOSE MECHANISM
No. Part name No. Part name
1 Paper Feed Tray 4 One-way Clutch
2 Draw-in pin 5 Draw-in lever
3 Oil Damper 6 Tray draw-in unit

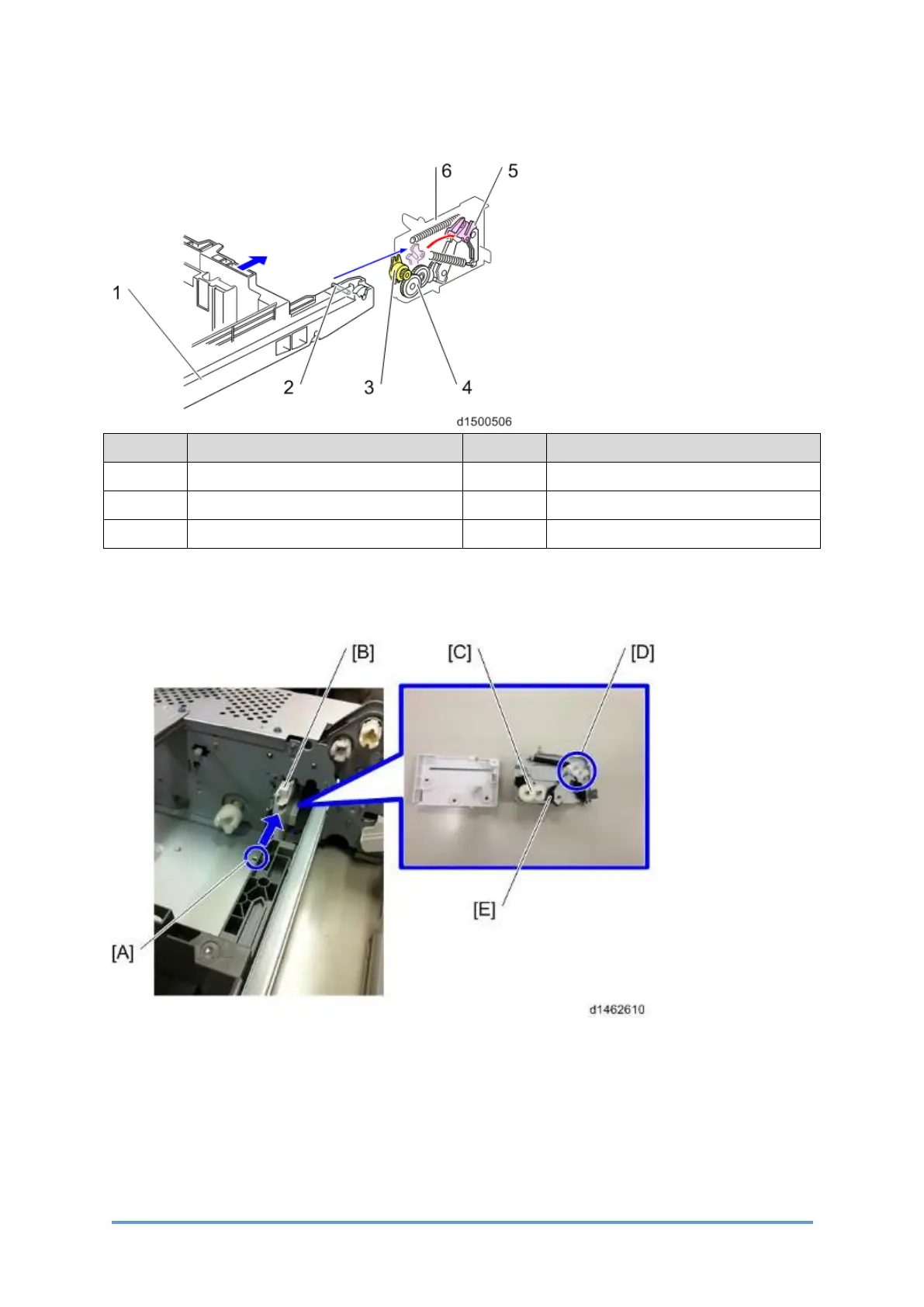

To enhance operability, a tray draw-in mechanism is used.
The tray is drawn in by a one-way clutch in the draw-in unit. To draw the tray out, an oil damper
is released.
The pin [A] of the paper supply tray is drawn in by the tray draw-in unit [B].
[A]: Paper supply tray pin
[B]: Tray draw-in unit
[C]: One-way clutch
[D]: Tray draw-in lever
[E]: Oil damper
