PCDU
D0CA/D0C9/D0C8/D0CB 7-46 SM
7.6 PCDU
7.6.1 OVERVIEW

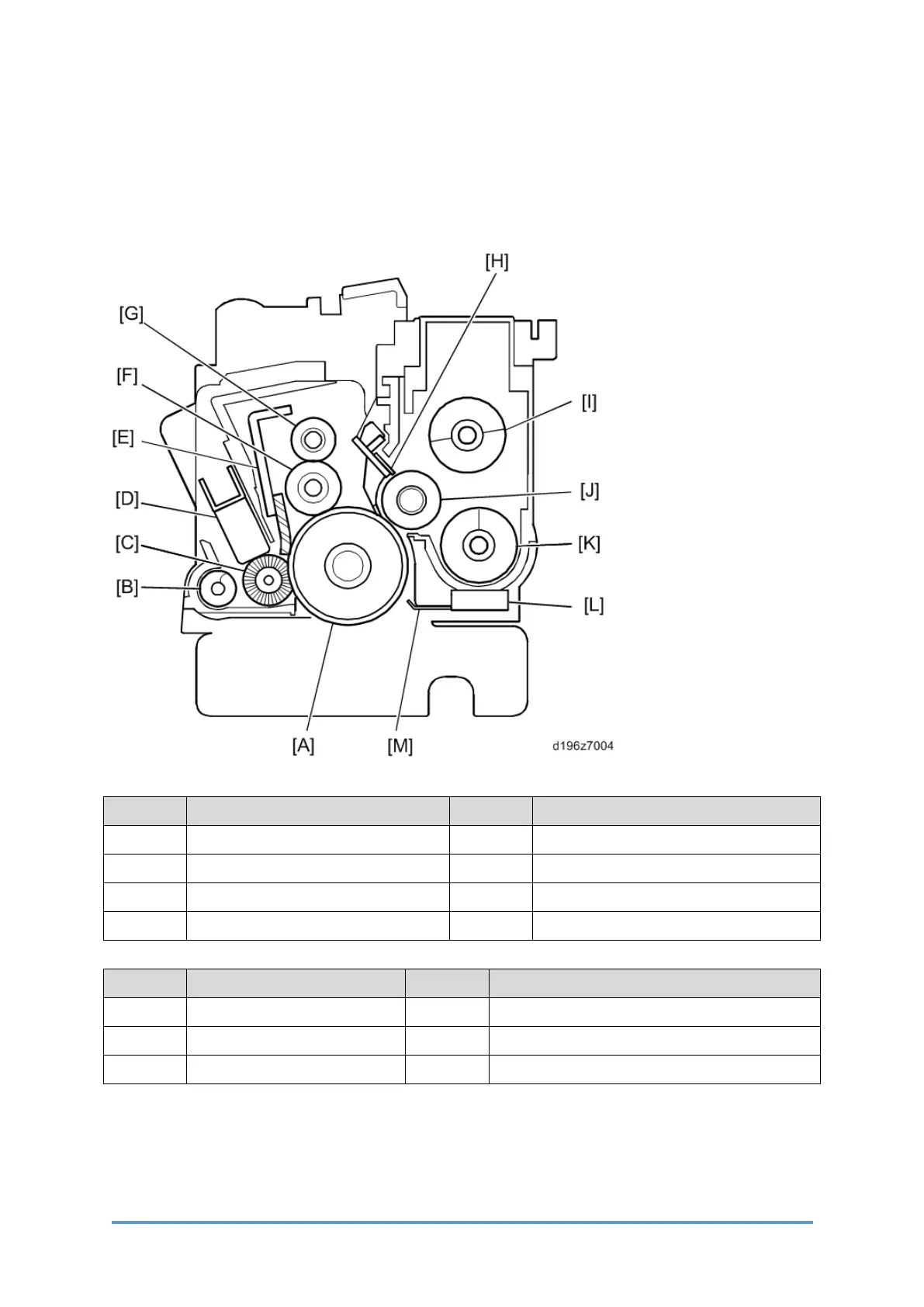

Callout Item Callout Item
[A] OPC Drum [E] Cleaning Blade
[B] Waste Toner Transport Coil [F] Charge Roller
[C] Lubricant Brush Roller [G] Charge Roller Cleaning Roller
[D] Lubricant - -
Callout Item Callout Item
[H] Doctor Blade [K] Transport Coil (Lower)
[I] Transport Coil (Upper) [L] TD sensor (S14) (S15) (S16) (S17)
[J] Development Roller [M] Toner Catching Mylar
The OPC drum section and the development section are joined by plates at the front and rear of
the unit.
