SD Card Options
D0CA/D0C9/D0C8/D0CB 2-158 SM
8. Follow the messages shown on the operation panel.
9. Turn OFF the power.
10. Remove the source SD card from SD card slot 2 (lower).
11. Attach the slot cover.
12. Turn ON the power.
13. Check that the application programs run properly.
14. Make sure that the machine can recognize the option (see Check All Connections at the
end of this section).
Undo Exec
"Undo Exec" (SP5-873-002) lets you move application programs from an SD card in SD card
slot 1 (upper) back to the original SD card in SD card slot 2 (lower). This program could be
used if a mistake was made when using Move Exec (SP5-873-001).
• Do not turn ON the write protect switch of the system SD card or application SD card
on the machine. If the write protect switch is ON, a download error (e.g. Error Code 44)
occurs during a firmware upgrade or application merge.
1. Turn OFF the power.

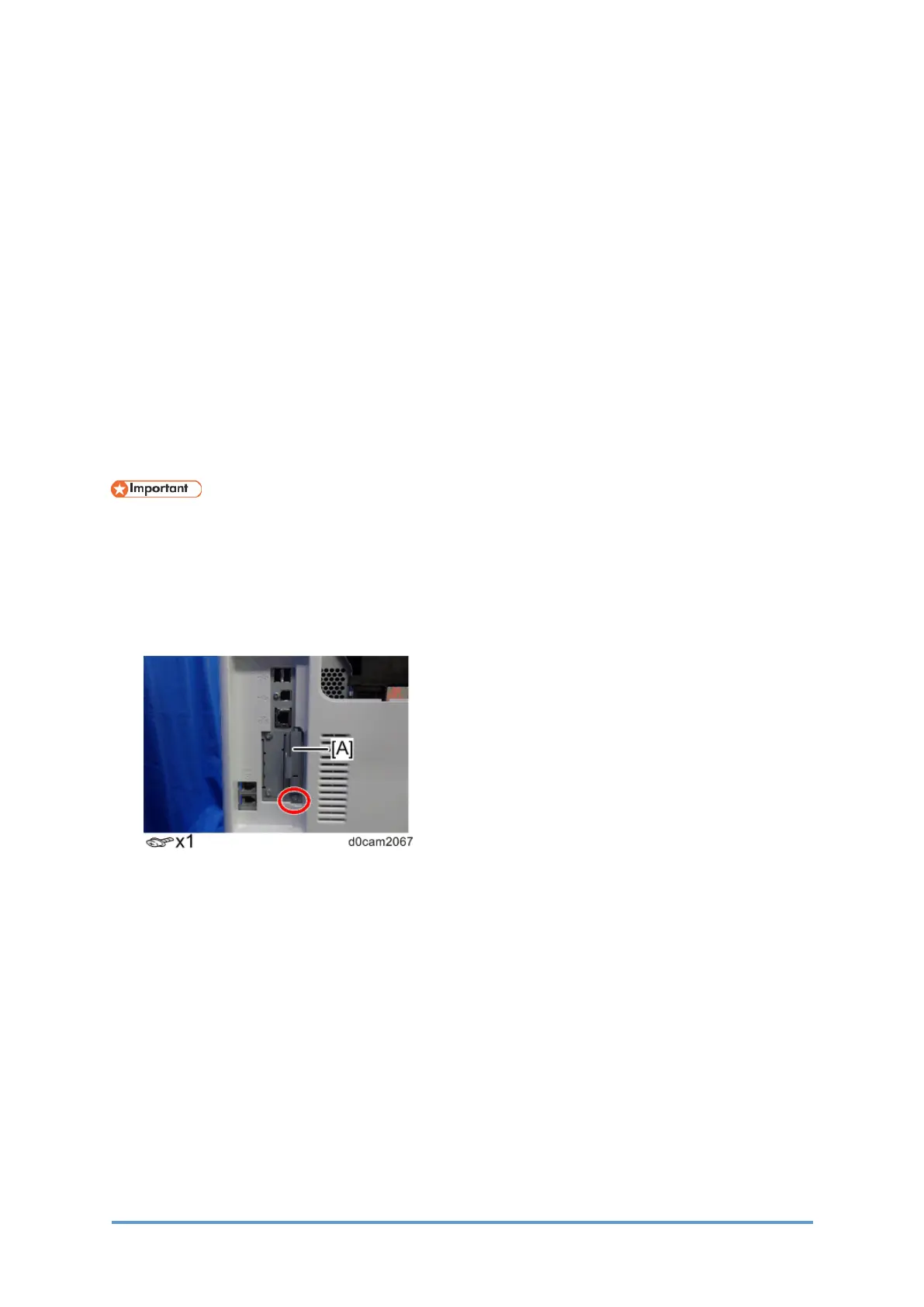

2. Remove the SD card slot cover [A].
3. Insert the original SD card in SD card slot 2 (lower). The application program is copied
back into this card.
4. Insert the SD card with the application program in SD card slot 1 (upper). The application
program is copied back from this SD card.
5. Turn ON the power.
6. Start the SP mode.
7. Select SP5-873-002 "Undo Exec."
8. Follow the messages shown on the operation panel.
9. Turn OFF the power.
10. Reattach the SD card slot cover.
