Image/Paper Transfer
D0CA/D0C9/D0C8/D0CB 4-130 SM
• ID sensor(front) (S27)
• ID sensor(center) (S28)
• ID sensor(rear) (S29)

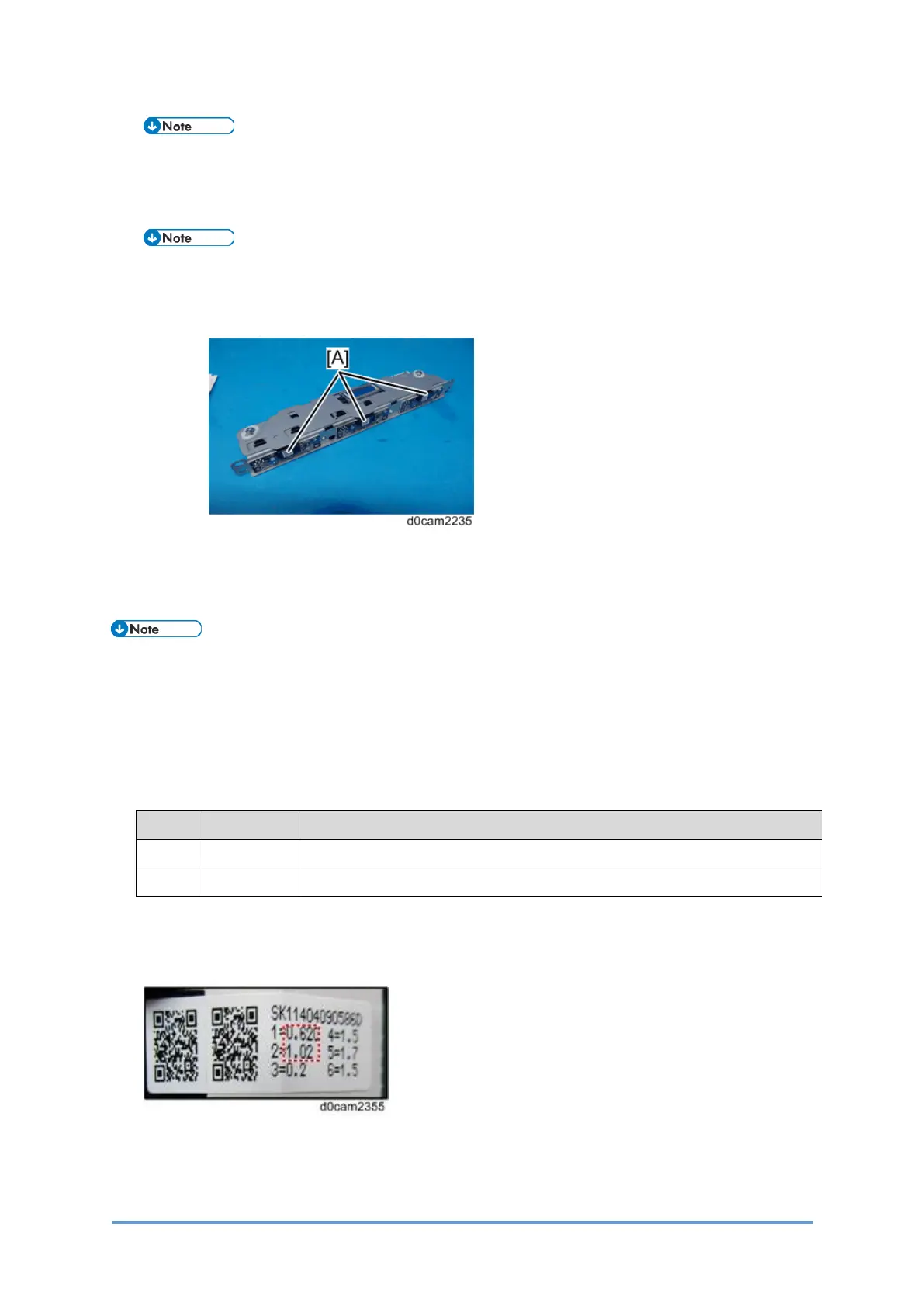

• When cleaning the ID sensor, wipe the parts [A] with a damp cloth.
• Do not wipe it with a dry cloth, or the ID sensor may attract dirt because of static
electricity. Let it dry naturally if necessary.
Before Installing a New ID Sensor Board
Do the following adjustment before installing a new ID sensor board.
The correction coefficients must be entered before replacement.
Enter correction coefficients into ID sensor(center) (S28) only.
1. Plug in and turn ON the main power.
2. Enter the SP mode.
3. Enter two correction coefficients in the dotted square in the photo for the ID sensor with the
SP modes, referring to the barcode sheet provided with the new ID sensor board.
Value SP No. Category
1 3-331-021 ID Sen. Sensitivity Coef.: Set K2: Check
2 3-331-031 ID Sen. Sensitivity Coef.: Set Diffuse Ratio Correction Coef.
To Next Page
