Dehumidification Heater (PFU)
D0CA/D0C9/D0C8/D0CB 2-130 SM

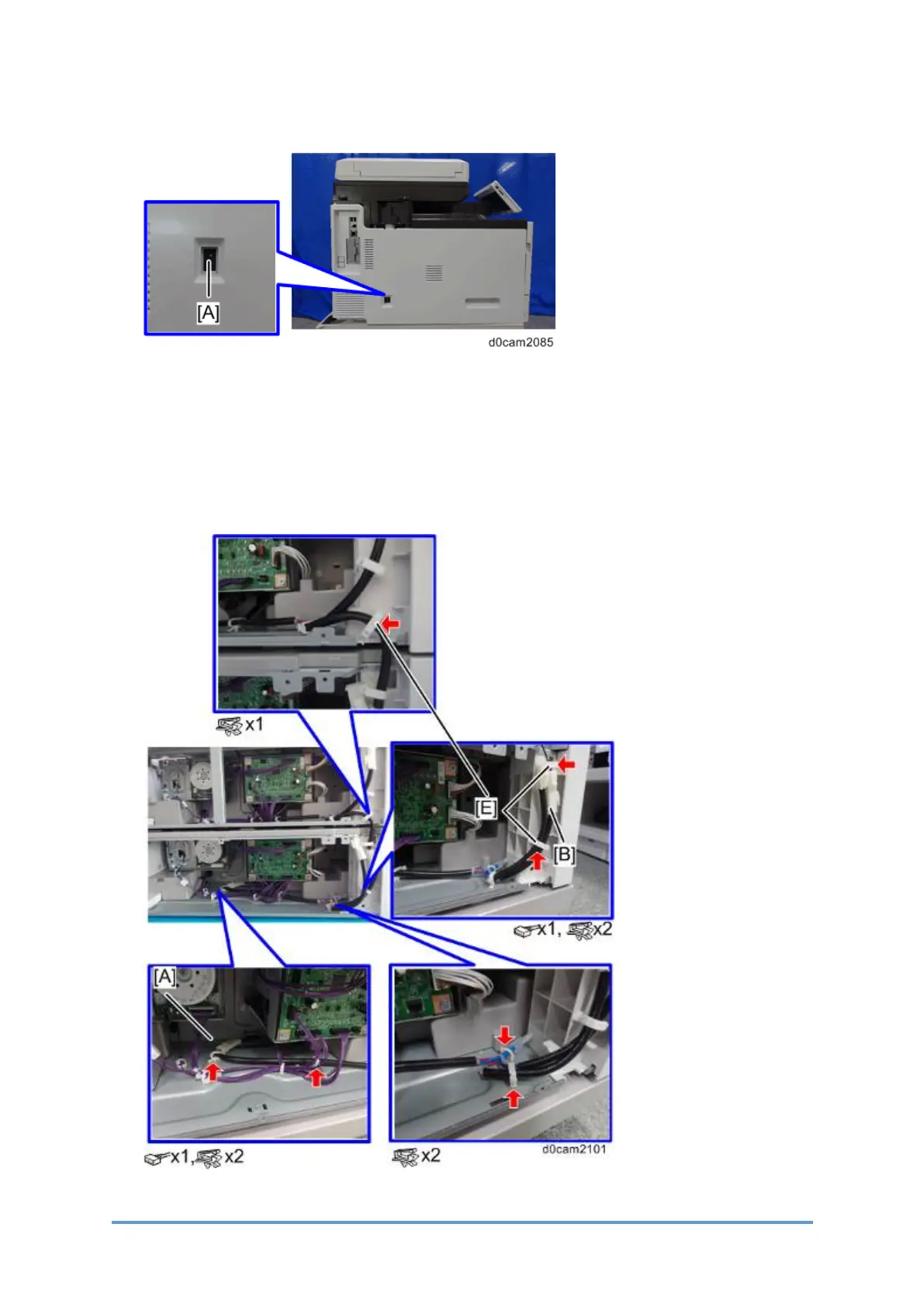

21. Turn ON the switch [A].
For Installing the Tray Heater on the 2nd Optional Paper Feed Unit
1. Do the same procedure for the 1st optional paper feed unit from step 1 to step 19.
2. Connect the harness [A] and heater connector for the 2nd tray.
3. Remove the cap on the 1st tray harness and connect the 2nd tray harness [B].
4. Attach three clamps [E] and route the harness through them.
To Next Page
