Dehumidification Heater (PFU)
SM 2-129 D0CA/D0C9/D0C8/D0CB

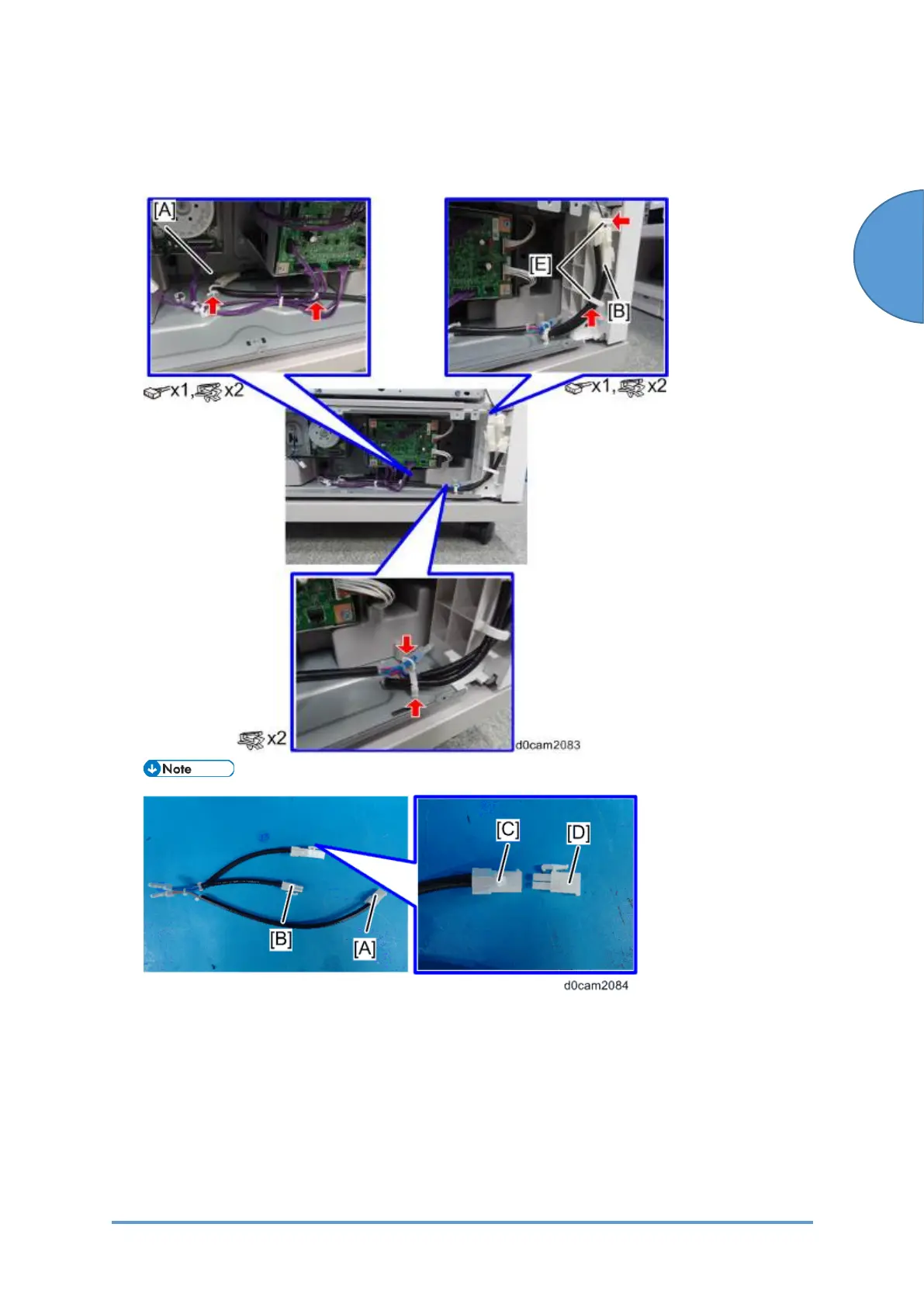

17. Connect the connector [A] to the tray heater connector (attached in step 15).
18. Connect the harness [B] to the junction harness (mainframe).
19. Attach two clamps [E] and route the harness through them.
• A: For this tray heater
• B: For the junction harness of the mainframe
• C: For another optional tray heater
• D: Isolation cap (uncap if installing the heater for 2nd paper tray)
20. Reattach all the covers removed.
