Replacement and Adjustment
SM 8-1 D0CA/D0C9/D0C8/D0CB
8. SMART OPERATION PANEL
8.1 REPLACEMENT AND ADJUSTMENT
8.1.1 MAIN CONTROLLER BOARD

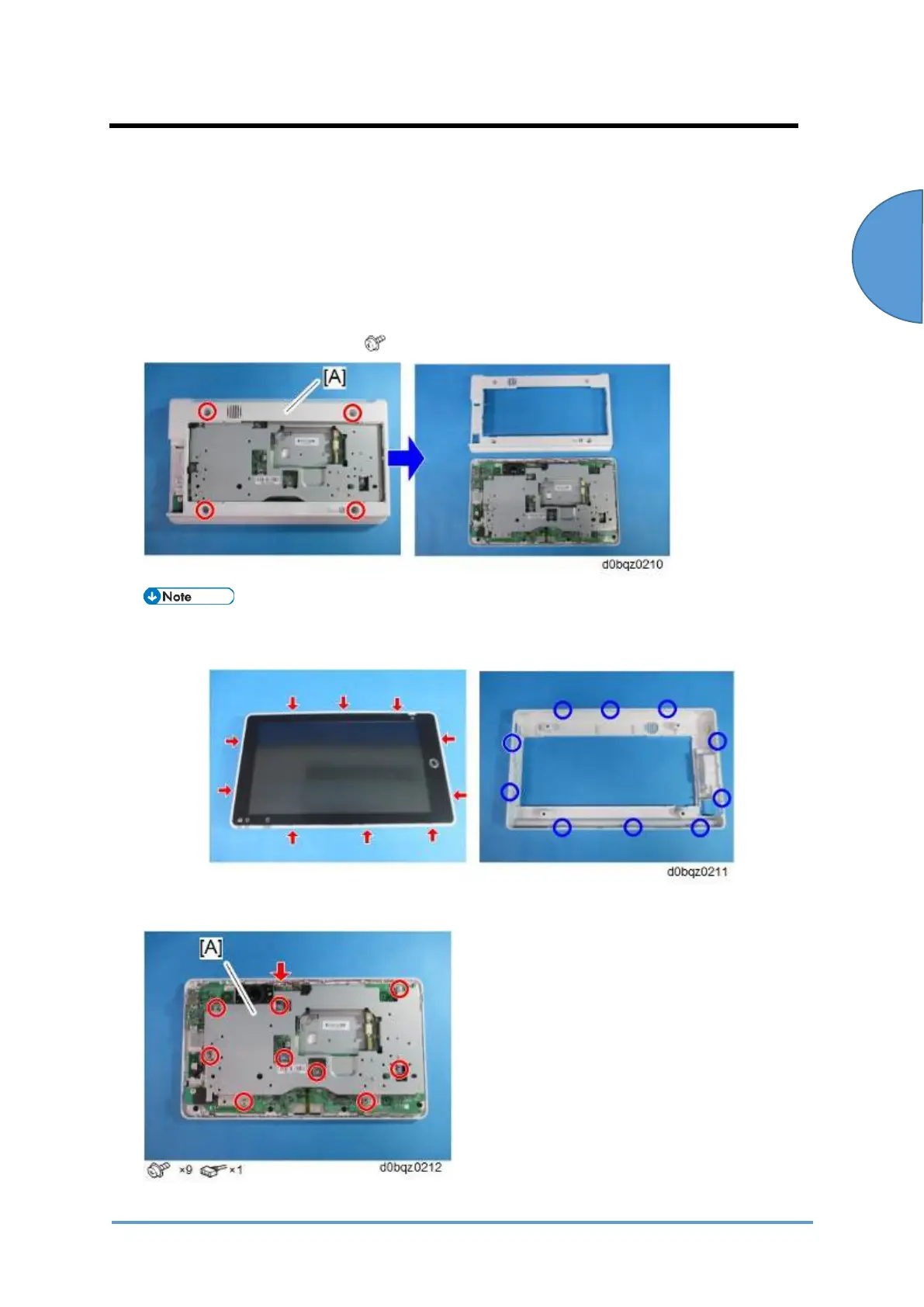

1. Remove the operation panel unit. (Operation Panel)
2. Remove the bottom cover [A] ( ×4).
• There are ten hooks inside the operation panel unit. Before removing the
operation panel bottom cover, check the photos below.
3. Remove the base bracket [A].
