Ricoh IM C300

ADF Unit
D0CA/D0C9/D0C8/D0CB 7-22 SM

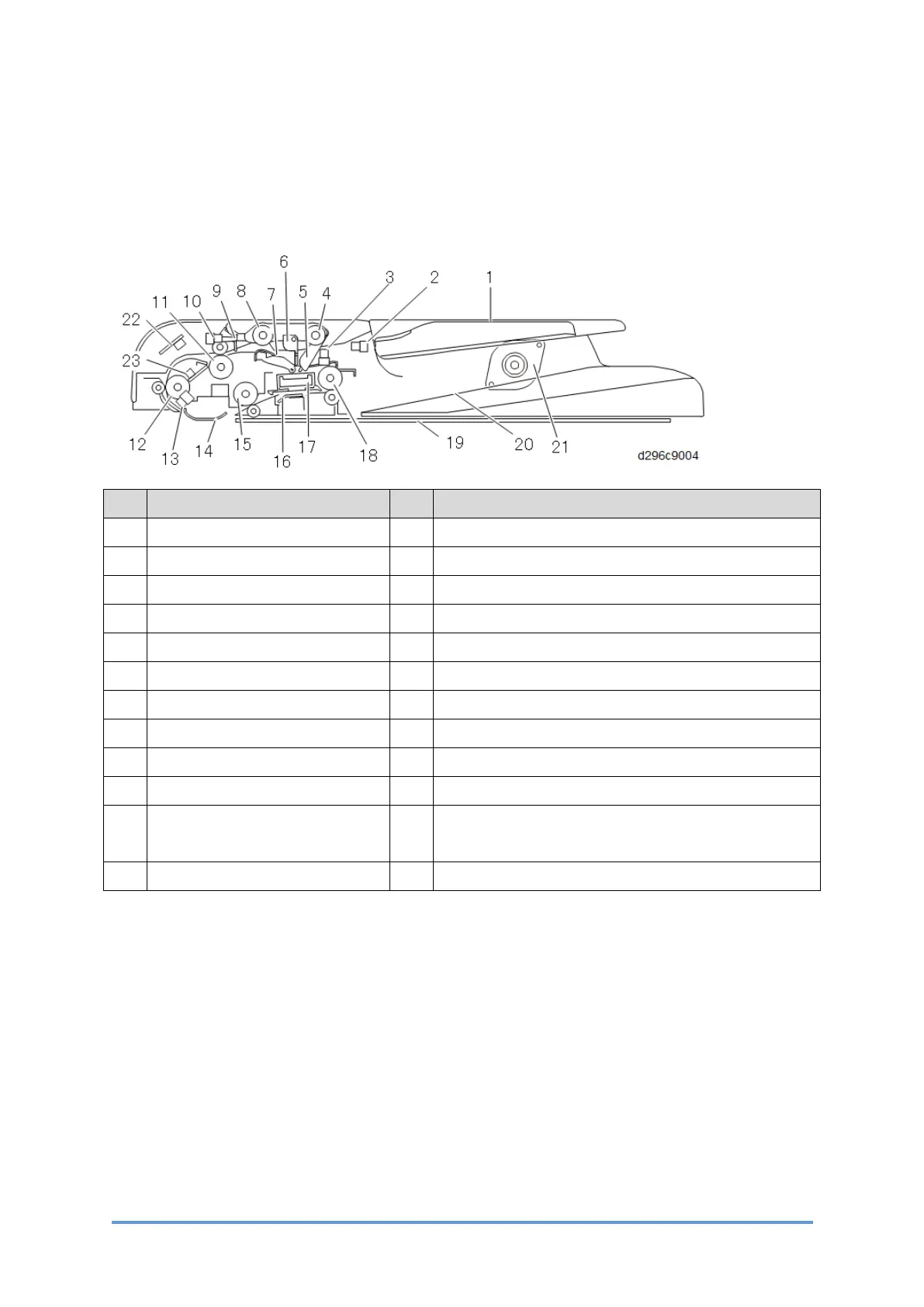

7.2 ADF UNIT
7.2.1 OVERVIEW
No. Name No. Name
1 Original tray 13 Registration sensor (S24)
2 ADF top cover sensor (S23) 14 Scanning guide plate (front side)
3 Original set sensor (S22) 15 Pre-scanning roller (rear side)
4 Pick-up roller 16 Scanning guide plate (rear side)
5 Original set sensor actuator 17 CIS (S21)
6 Stopper 18 ADF exit roller
7 Friction pad 19 Platen
8 Feed roller 20 Original exit tray
9 Original feed sensor actuator 21 ADF motor (M8)
10 Original feed sensor (S25) 22 Double-feed sensor (URRB)*1 (receiver) (PCB15)
11 ADF entrance roller 23 Double-feed sensor (MFTB)*1 (emitter) (PCB14)
12 Pre-scanning roller (front side) - -
*1 Option
