Ricoh IM C300

Duplex
D0CA/D0C9/D0C8/D0CB 4-198 SM
4.18 DUPLEX
4.18.1 DUPLEX UNIT

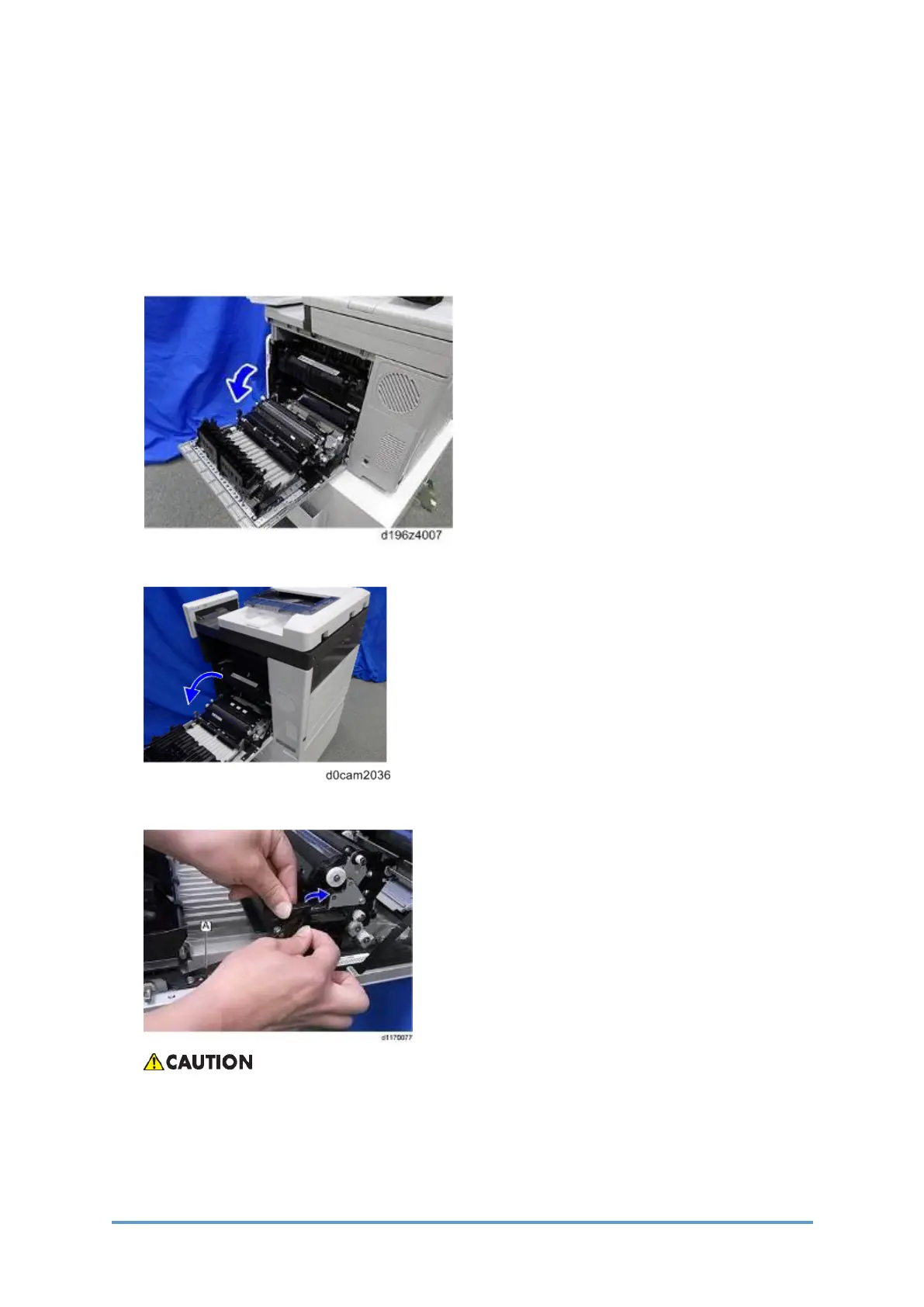

1. Open the right door.
IM C300 series/IM C400F
IM C400SRF
2. Push the lever and reduce the tension of the belt [A], then remove the belt.
When reattaching the duplex unit, make sure that the belt [A] is attached firmly. If the belt is
not attached, the right door will not be opened even if the opening/closing lever is operated.
For details, please refer to When You Cannot Open the Right Door
3. Remove the two screws on the paper transport unit [A].
