Ricoh IM C300

Paper Feed
SM 4-171 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
Draw-in Unit
1. Remove the following parts.
• Rear Cover
• Upper Left Cover
• Left Cover
• PSU Exhaust Fan (FAN4)

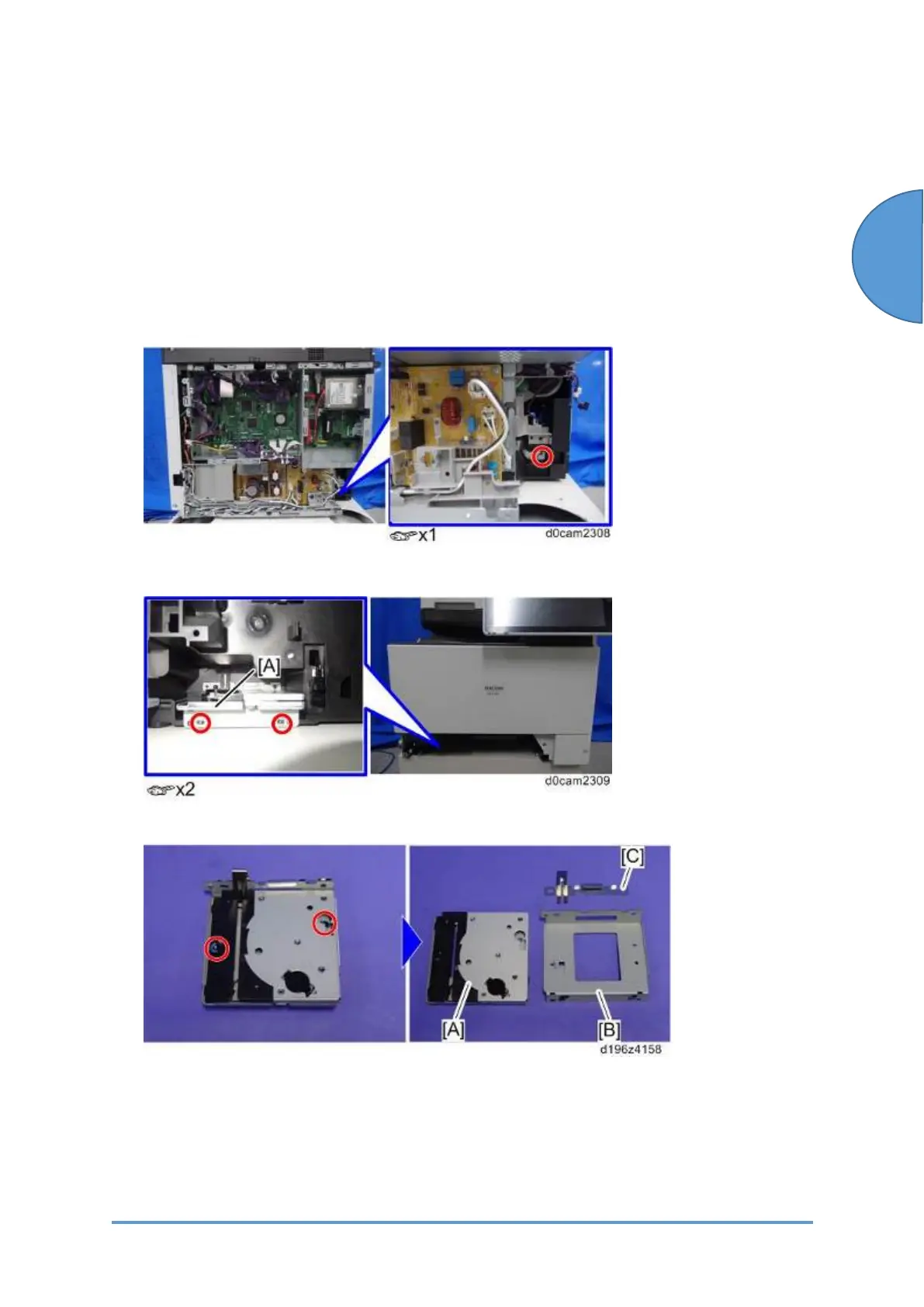

2. Remove the screw.
3. Remove the draw-in unit [A] with bracket.
4. Remove the bracket [B] and grounding plate [C] from the draw-in unit [A].
