Laser Unit
SM 7-43 D0CA/D0C9/D0C8/D0CB
7.5.3 LINE SCANNING MECHANISM

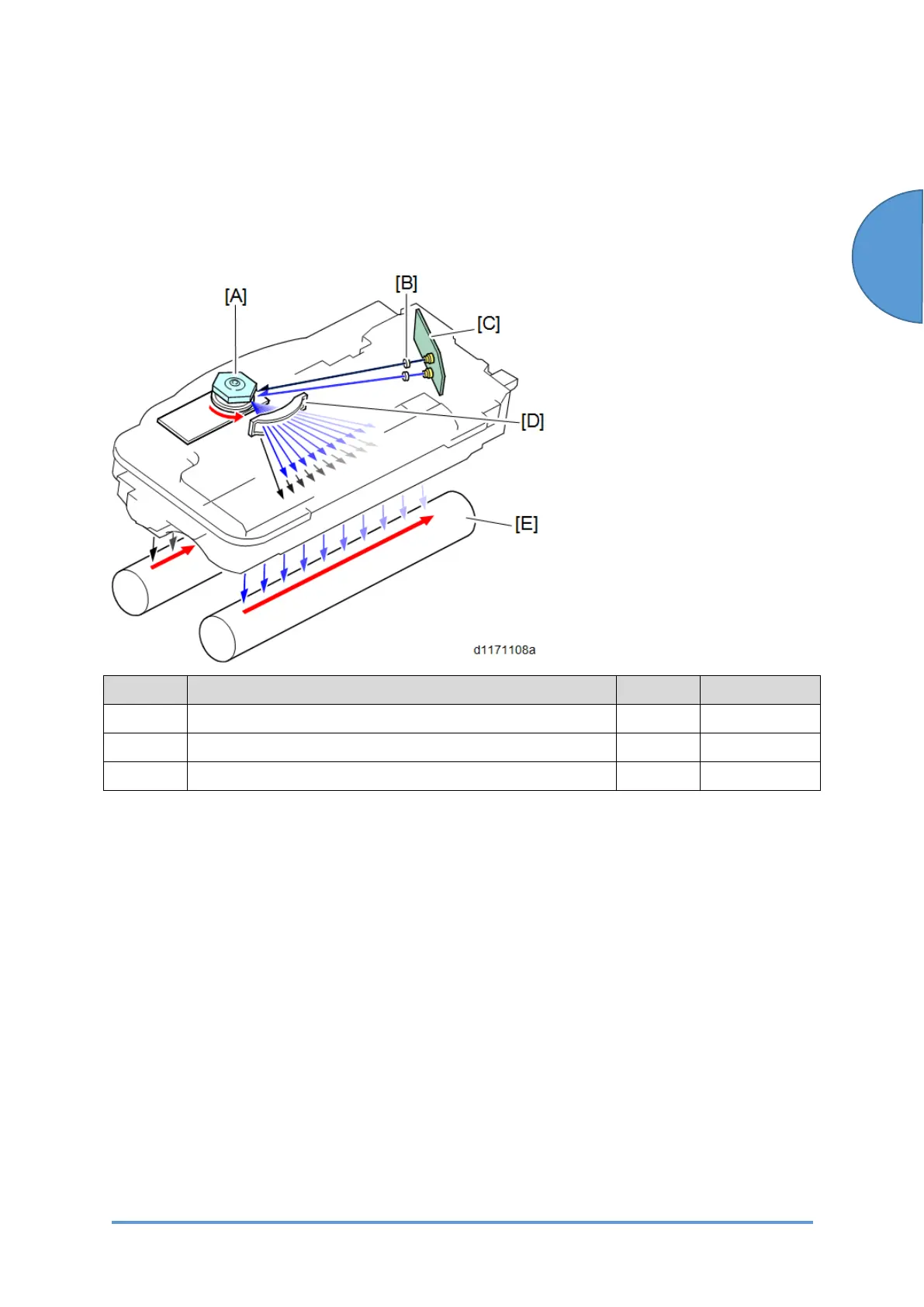

The image read by the scanner is written on the OPC drum [E] with the laser beams. The
direction of main scanning is from the front to the rear of the machine. The polygon motor
(M5,M6) [A] rotates counterclockwise.
Callout Item Callout Item
[A] Polygon Motor (M5,M6) (With Polygon Mirror) [D] Lens (L1)
[B] Collimating Lens [E] OPC Drum
[C] LD Drive Board (PCB8)(PCB9) - -
