ADF
D0CA/D0C9/D0C8/D0CB 4-56 SM
4.6.4 ORIGINAL FEED UNIT

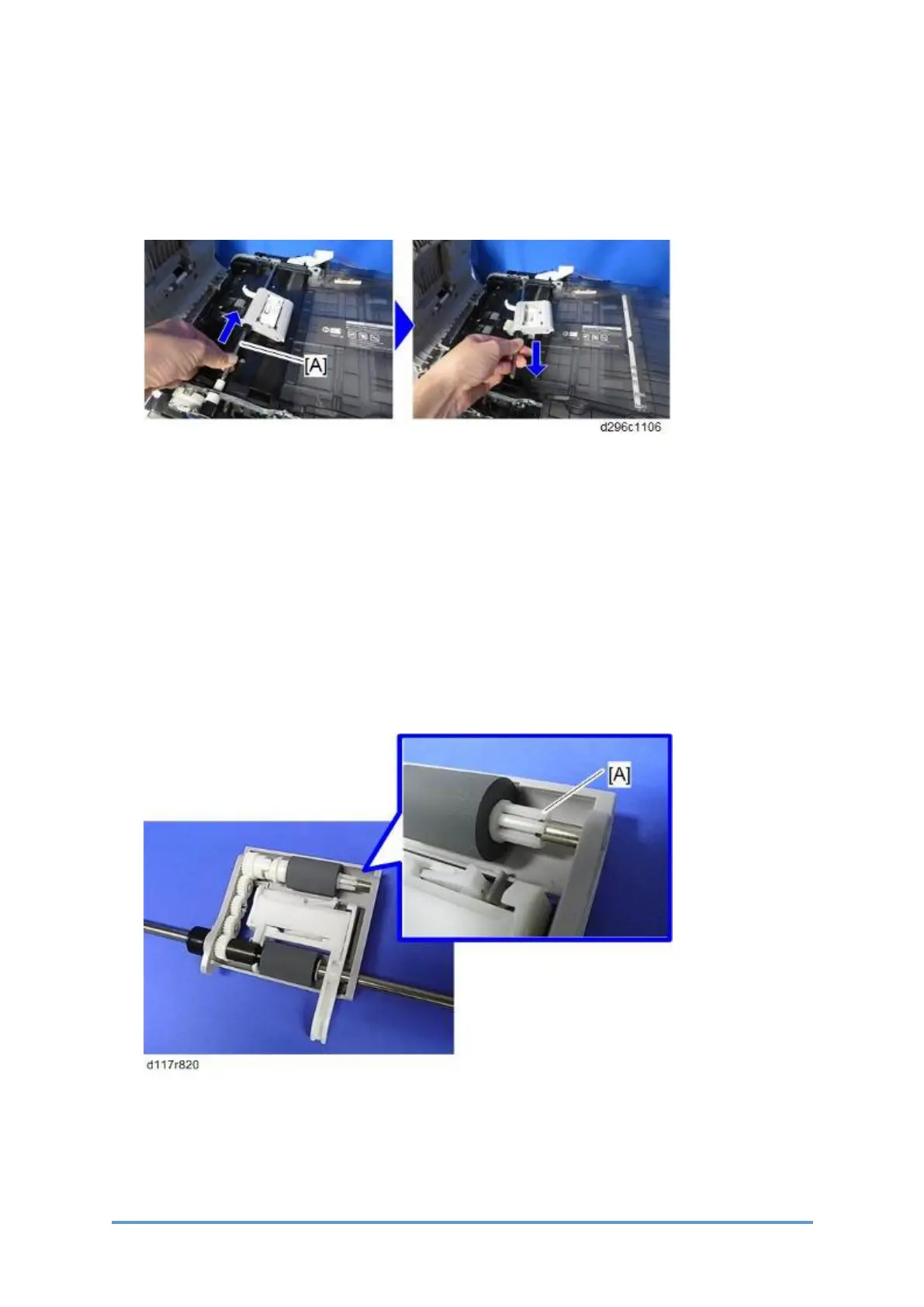

1. Open the ADF top cover.
2. Slide the shaft [A] of the original feed unit toward the rear to remove it.
4.6.5 PICKUP ROLLER, FEED ROLLER
Before replacing the pickup roller and feed roller, reset the PM counter.
1. Turn the power ON.
2. Reset the PM counter. (Refer to Replacement Procedure of the PM/Yield Parts)
3. Turn the power OFF.
Remove the original feed unit. (Original Feed Unit)
1. Release the hook [A].
To Next Page
