ITB/ Paper Transfer
D0CA/D0C9/D0C8/D0CB 7-64 SM

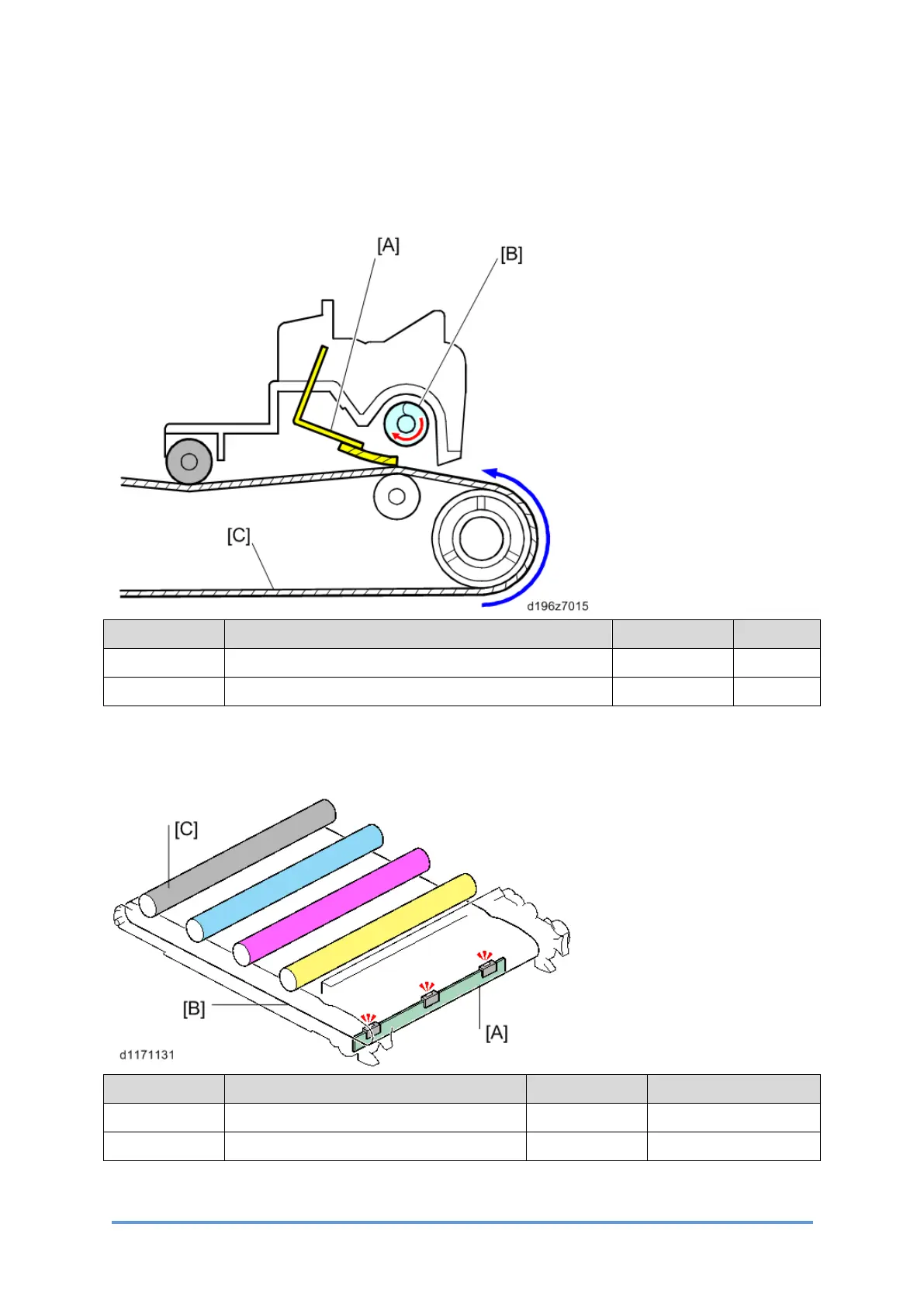

7.9.5 ITB CLEANING
The cleaning blade [A] cleans the ITB [C]. The waste toner collection coil [B] transports the
waste toner removed by the ITB cleaning blade towards the front of the machine.
Callout Item Callout Item
[A] ITB Cleaning Blade [C] ITB
[B] Waste Toner Collection Coil - -
7.9.6 IMAGE POSITION CORRECTION
The image position adjustment is done by the three ID sensors (S27-S29)[A].
Callout Item Callout Item
[A] ID Sensor (S27-S29) [C] OPC Drum
[B] ITB - -
