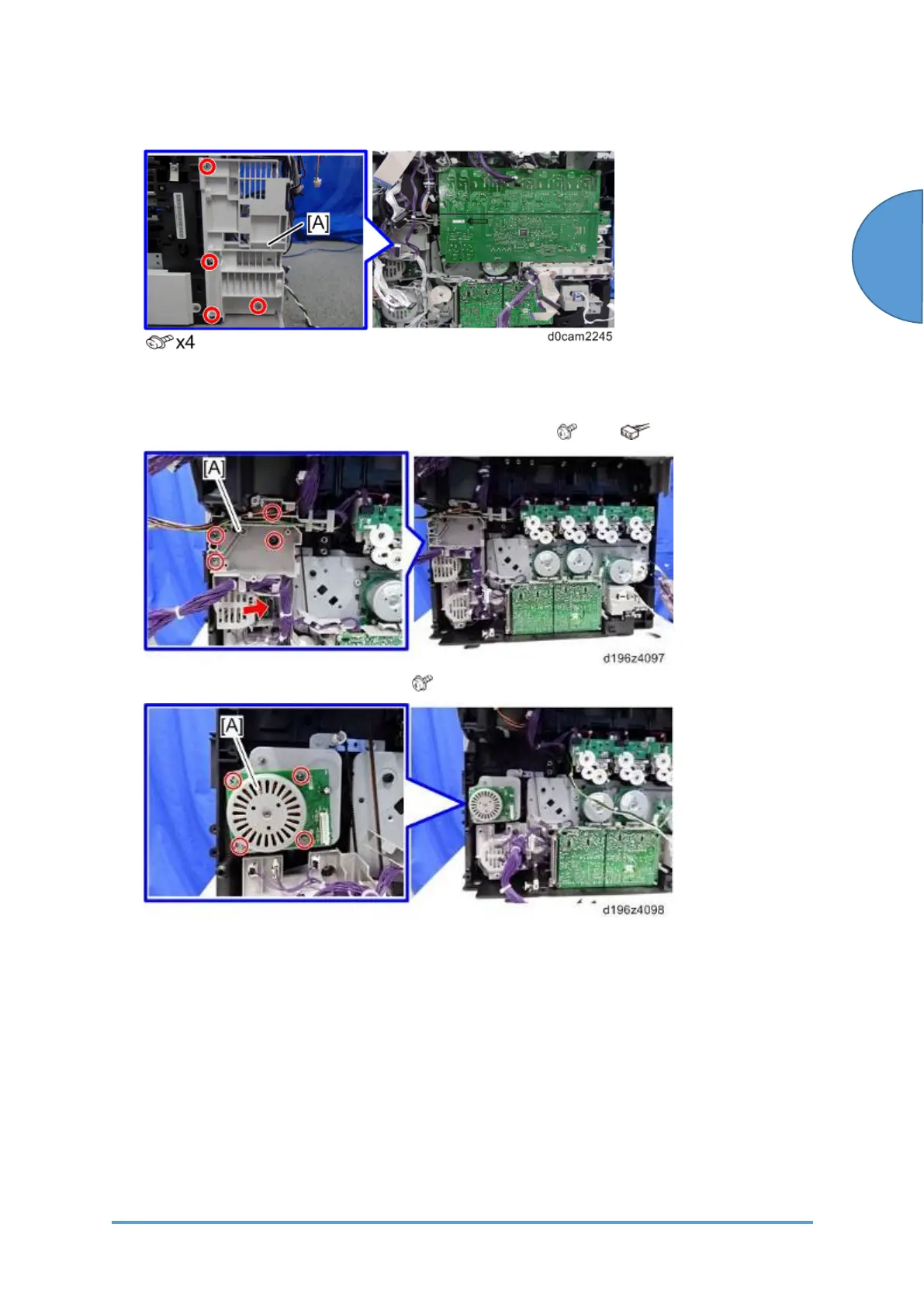

3. Remove the high-voltage power supply (Development). (High-Voltage Power Supply
(Development) (PCB22))
4. Release the harness and remove the harness guide [A]. ( × 4, × 1)
5. Remove the fusing motor (M13) [A]. ( × 4)
4.13.9 PAPER TRANSPORT MOTOR (M12)
1. Remove the following parts.
• Right Rear Cover
• Rear Cover
• Upper Left Cover
• Left Cover
• Controller Box
• PSU Exhaust Fan (FAN4)
• PSU (AC) (PCB17), PSU (DC) (PCB16)
To Next Page
