Ricoh IM C300

Drive
D0CA/D0C9/D0C8/D0CB 4-146 SM
• High-Voltage Power Supply (Development) (PCB22)
• Fusing Motor (M13)

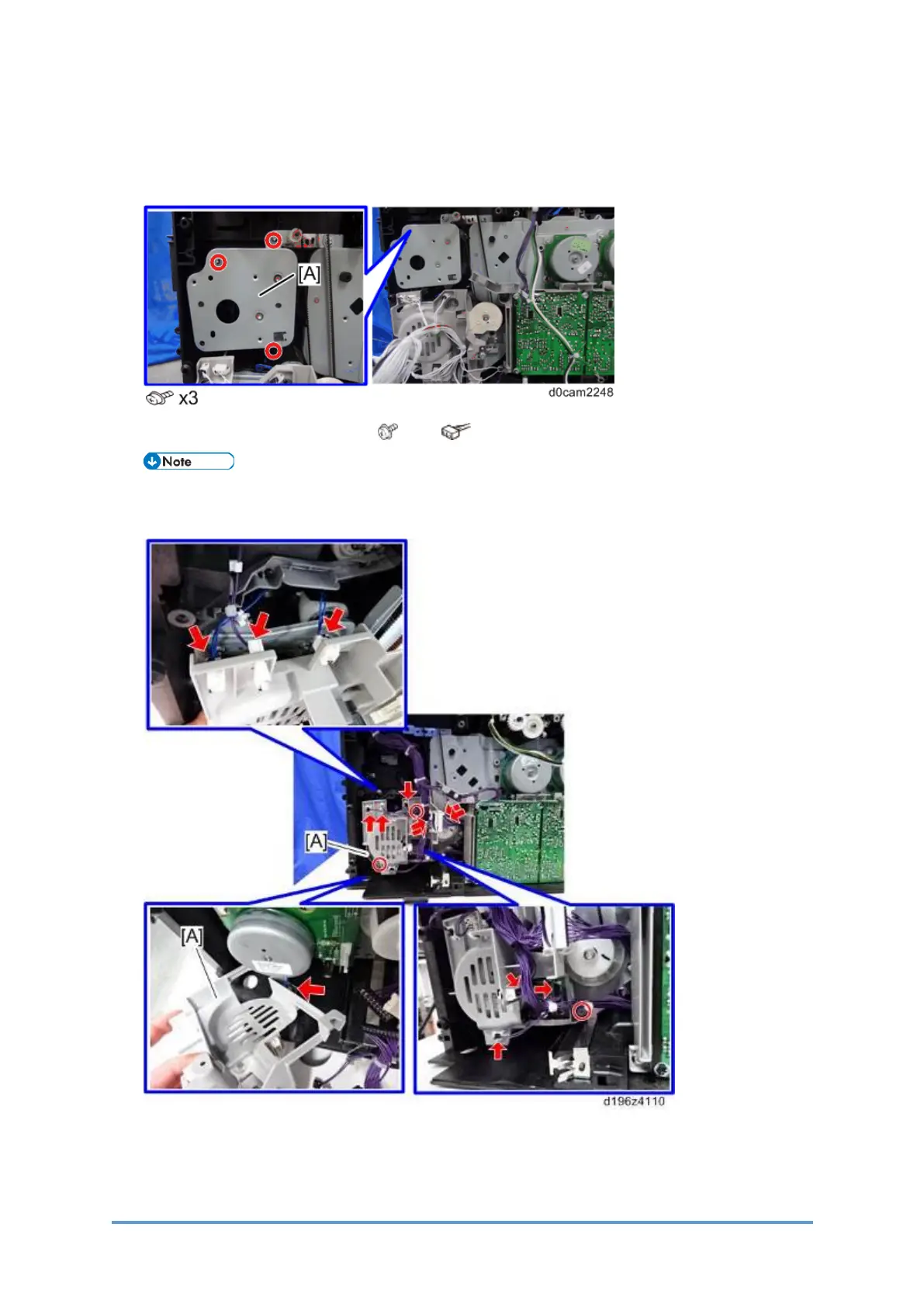

2. Remove the fusing motor bracket [A].
3. Remove the harness guide [A]. ( × 3, × 14)
• There are connectors behind the harness guide. Remove the guide carefully.
