Drive
SM 4-147 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
IM C400 series

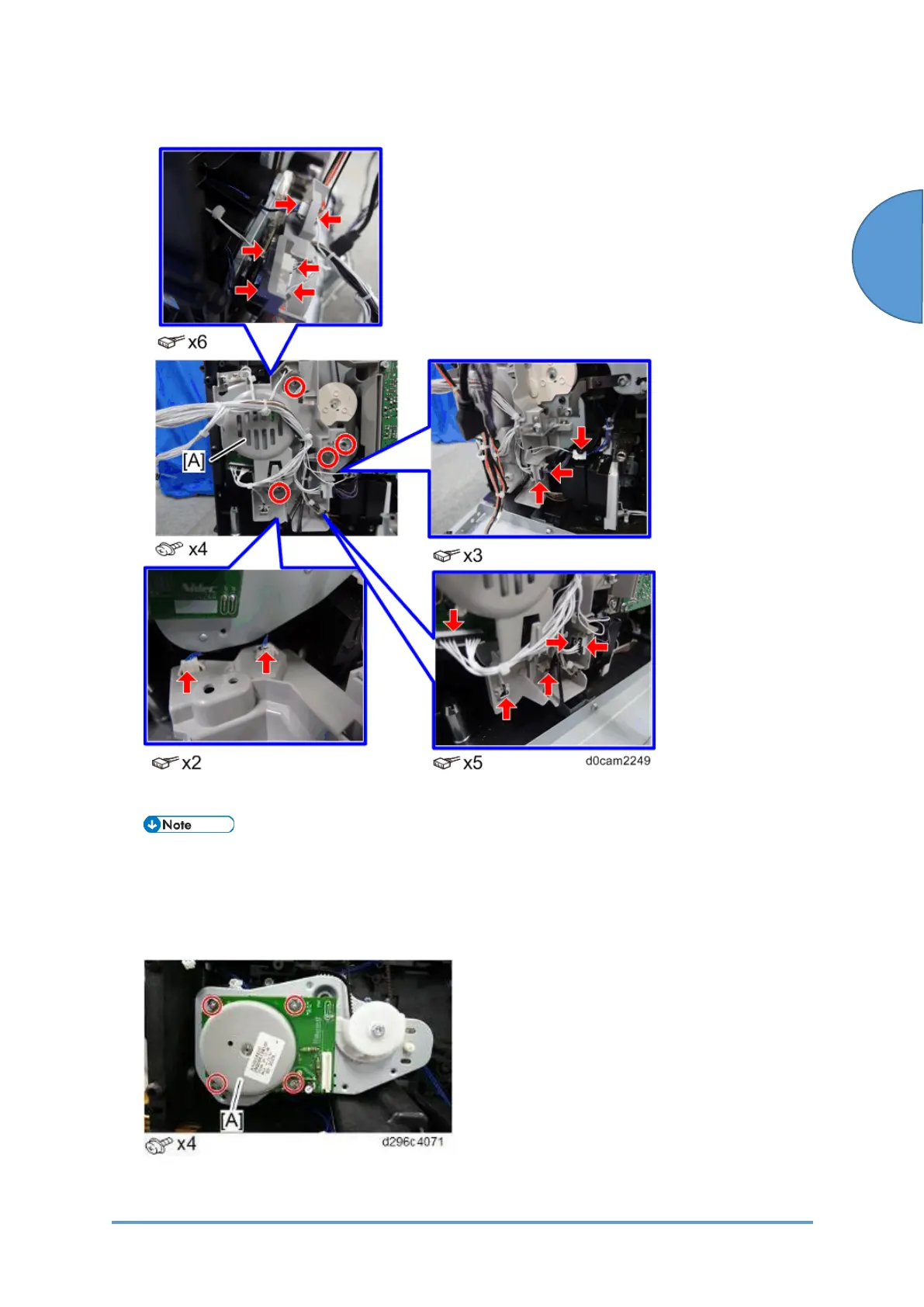

4. Remove the paper transport motor (M12) [A].
The motor with the white label is for the IM C300 series.
The motor with the green label is for the IM C400 series.
IM C300 series
