Ricoh IM C300

ADF
SM 4-57 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment

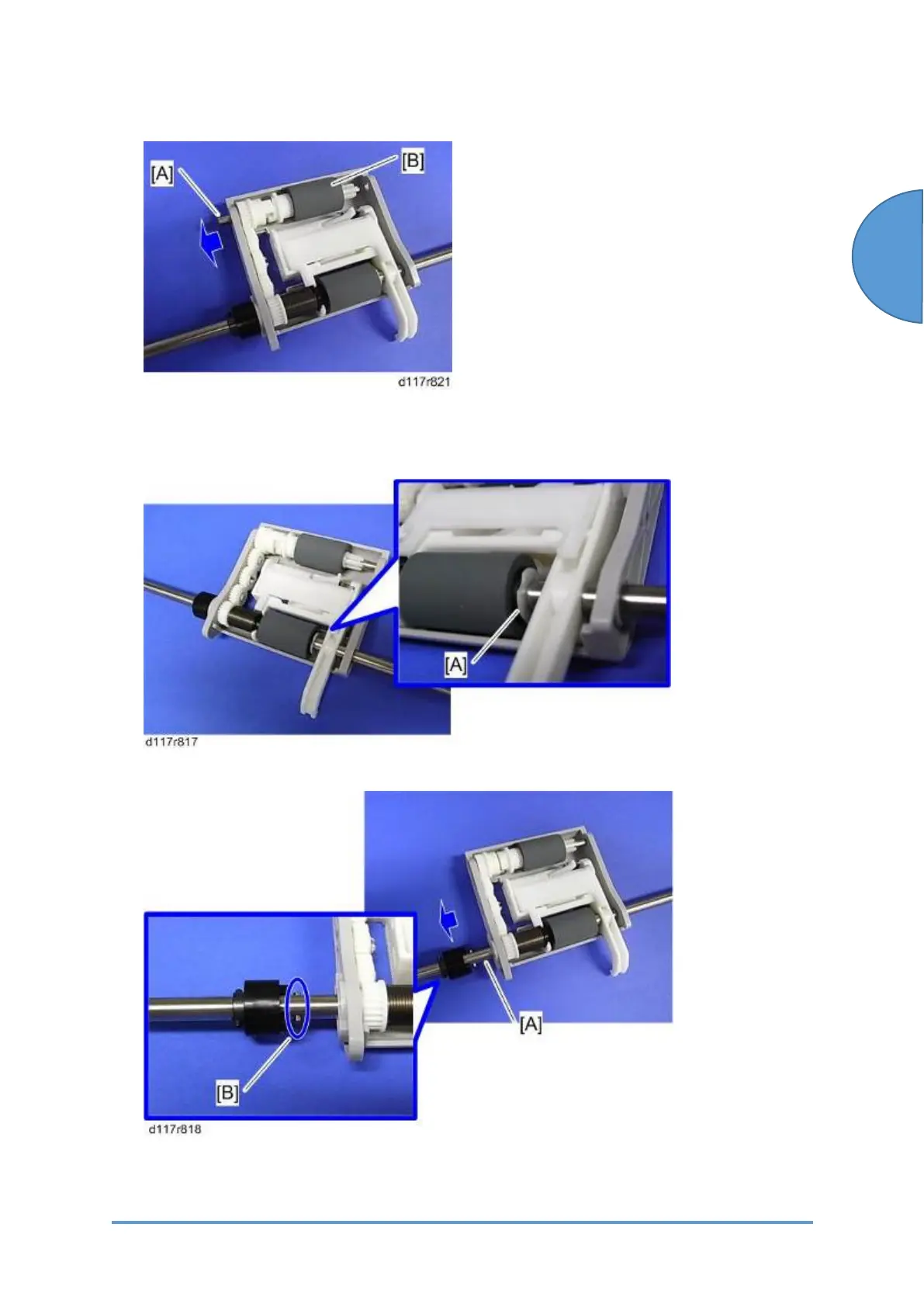

2. Slide the shaft [A], and then remove the pickup roller [B].
Remove the original feed unit. (Original Feed Unit)
1. Remove the clip [A].
2. Slide the shaft [A], and then remove the pin [B].
