Ricoh IM C300

ADF
D0CA/D0C9/D0C8/D0CB 4-64 SM
4.6.13 CIS UNIT (S21)
1. Remove the following parts
• ADF Rear Cover
• ADF Front Cover
• Original Feed Unit

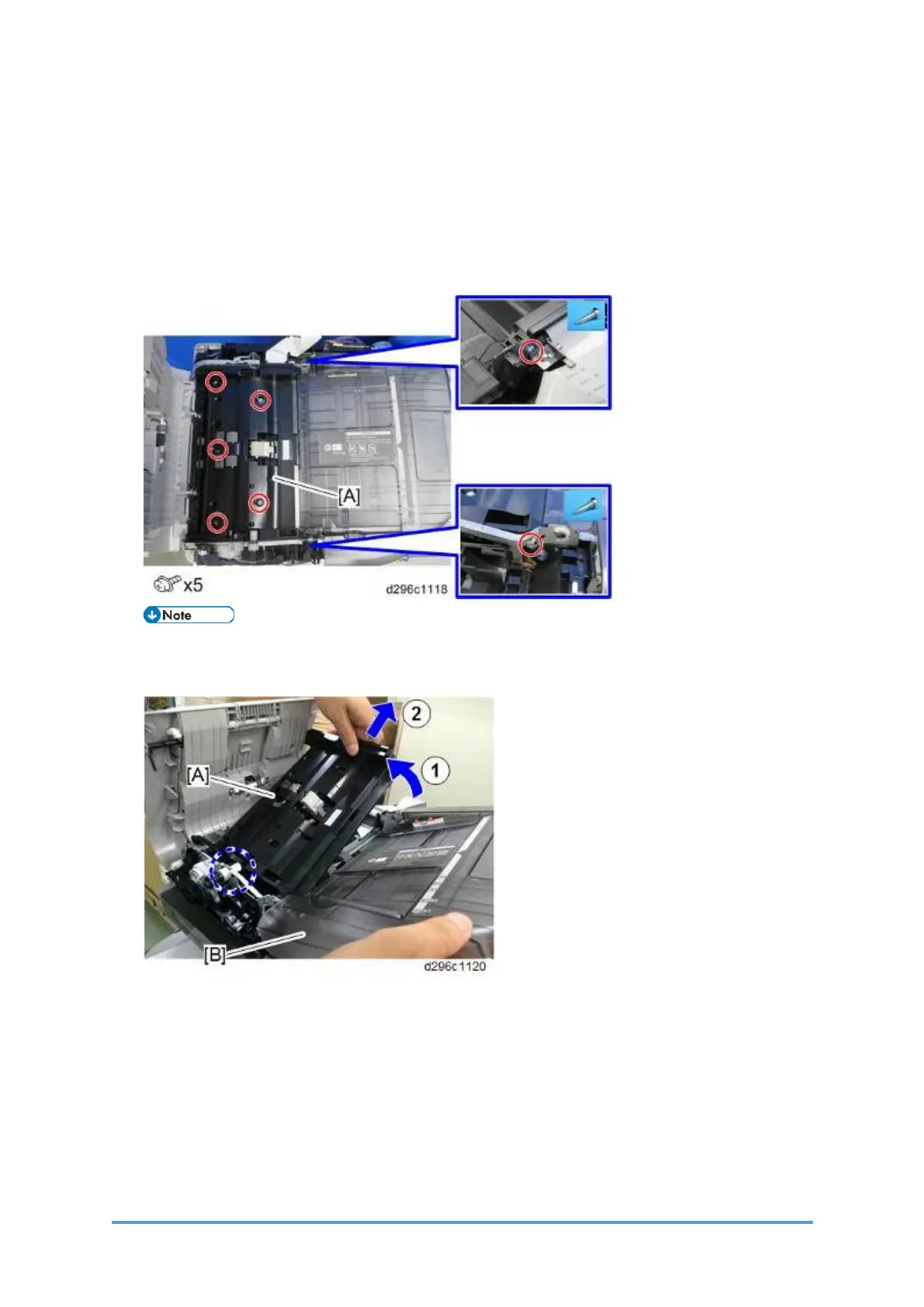

2. Remove the ADF inner cover [A].(Pivot Screws × 2)
Lift the back of the ADF inner cover [A] while swinging up the original tray [B], and then
slide the ADF inner cover toward the back of the ADF unit.
