Ricoh IM C300

ADF
SM 4-63 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment

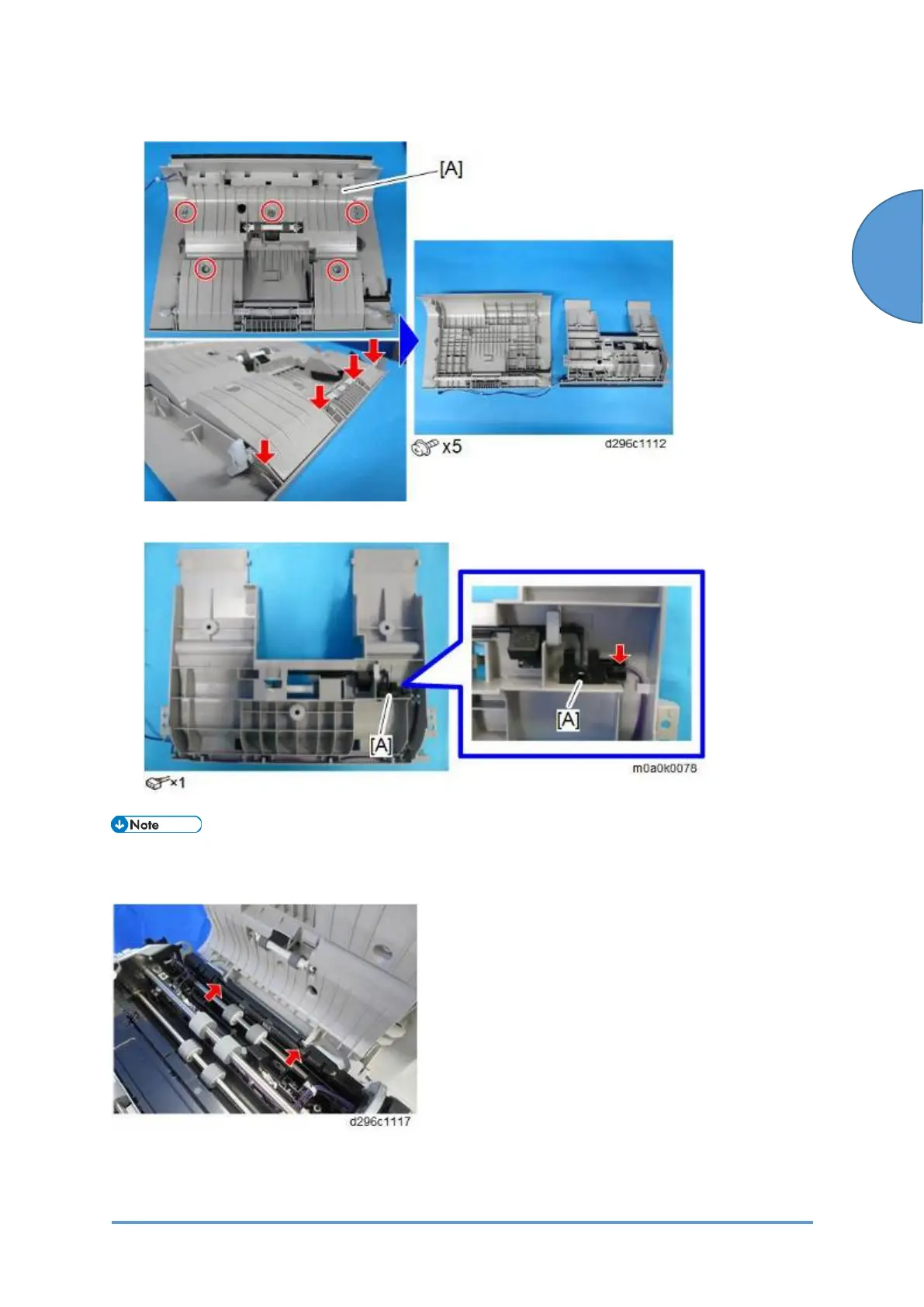

5. Remove the five screws and release the four tabs, and then remove the inner cover [A].
6. Remove the original feed sensor (S25) [A].
• When reattaching the ADF top cover, make sure it is set correctly so that the two tabs
fit into the holes.
