Fusing
D0CA/D0C9/D0C8/D0CB 4-164 SM

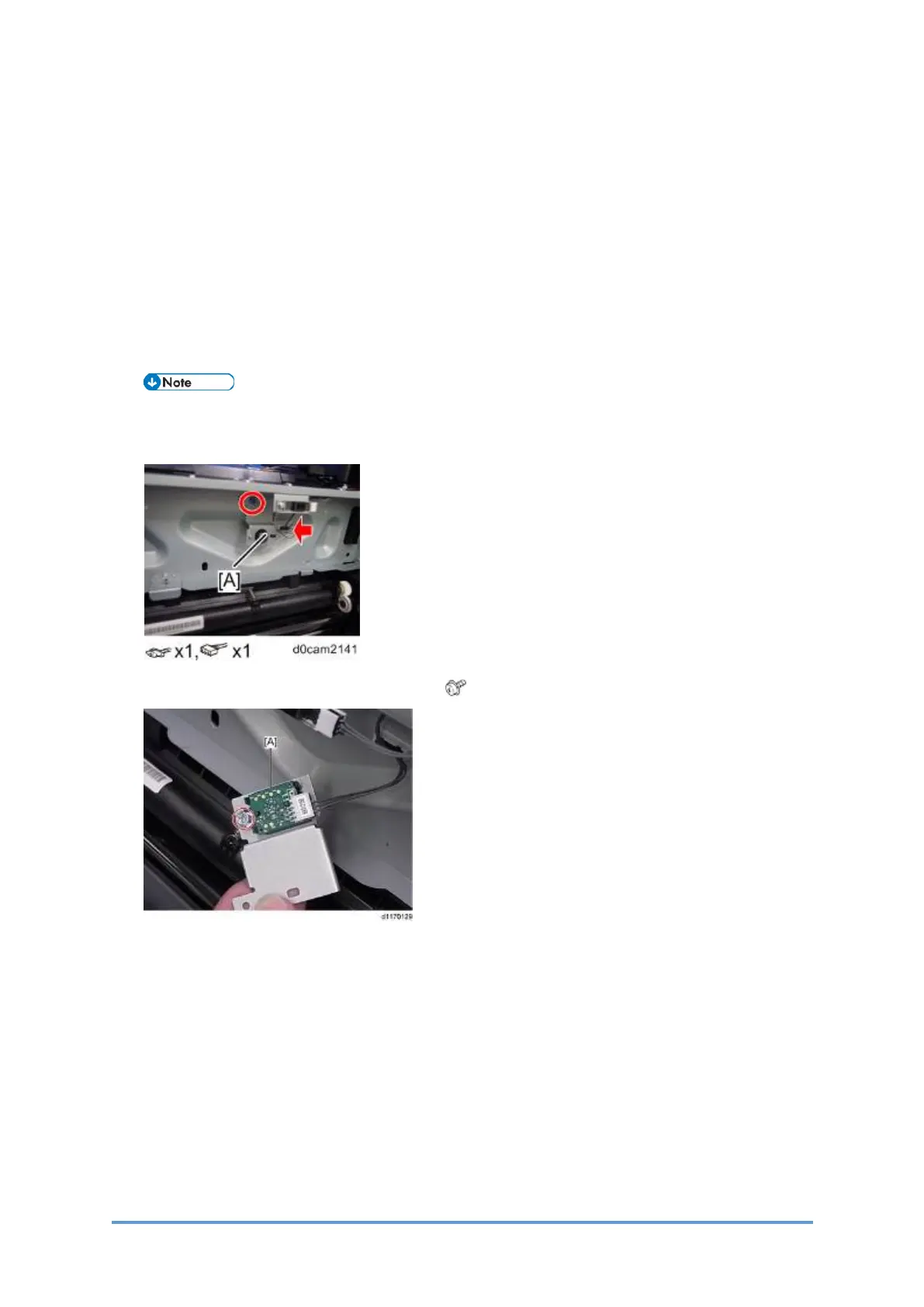

4.14.12 FUSING THERMOPILE (TH1)
1. Remove the following parts.
• Fusing Unit
• Scanner Unit with the ADF
• Operation Panel
• Scanner Inner Cover
• Paper Exit Tray
• Paper Exit Unit
Remove just the fusing unit and paper exit unit for IM C400SRF
2. Remove the fusing thermopile (TH1) with the bracket [A].
3. Remove the fusing thermopile (TH1) [A]. ( × 1)
To Next Page
