1-Bin Tray BN1040 (D574-59)
D0CA/D0C9/D0C8/D0CB 2-80 SM

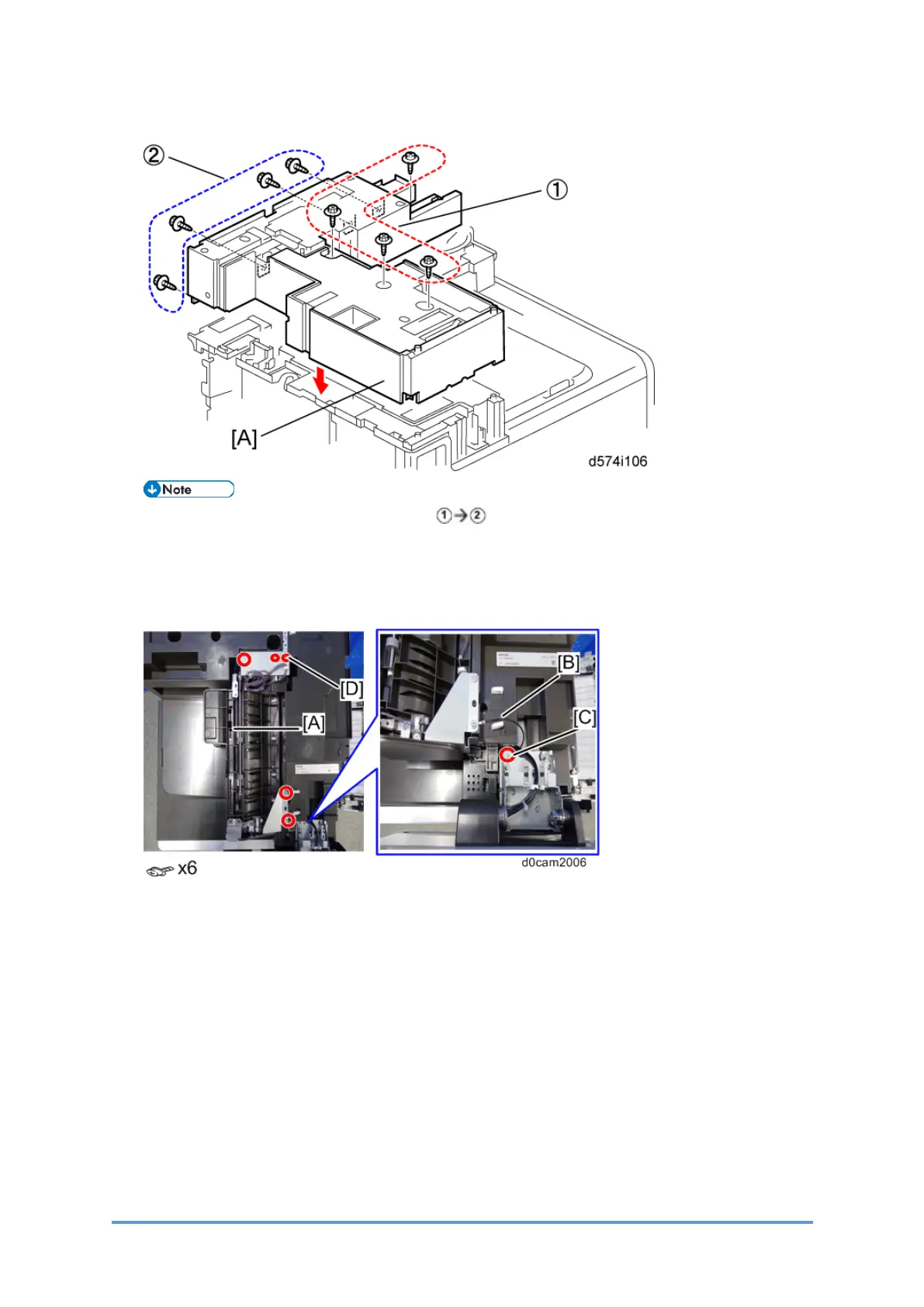

2. Attach the mounting frame [A].
• Install the screws in this order:
.
3. Attach the 1-bin tray unit [A]. (M3x10: 4 screws, and M3×6: 1 binding screw [D])
Fasten the grounding wire [B] included in this kit with one screw as shown below. Fasten
the other end of the grounding wire with the screw [C].
4. Connect the connector of the 1-bin tray unit to CN527 on the BiCU (PCB1), and then fasten
the harness [A].
Route the harness with the hook (marked by the dashed circle).
To Next Page
