Page Keeper Type M28 (D3DQ-17)
D0CA/D0C9/D0C8/D0CB 2-92 SM

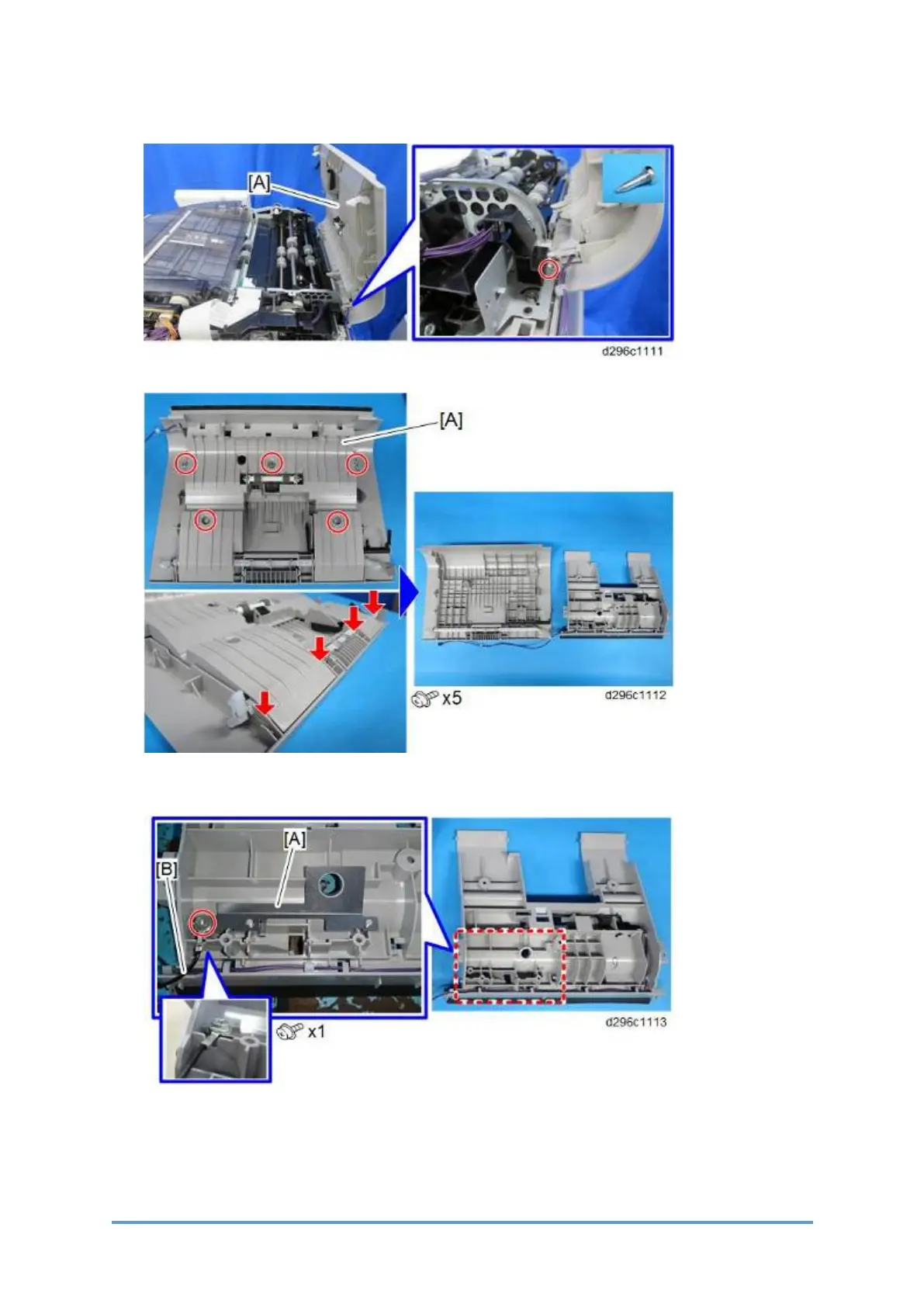

2. Remove the ADF top cover [A].(Pivot Screw x 1)
3. Remove the five screws and release the four tabs, and then remove the inner cover [A].
4. Attach the grounding plate [A] and the grounding wire [B], and insert the grounding wire in
the notch. (Tapping Screw: 3x10)
To Next Page
