Fax Option Type M41 (D0CK02)
D0CK 6 SM
If the battery jumper switch is not at the correct position, registering the fax unit will fail.

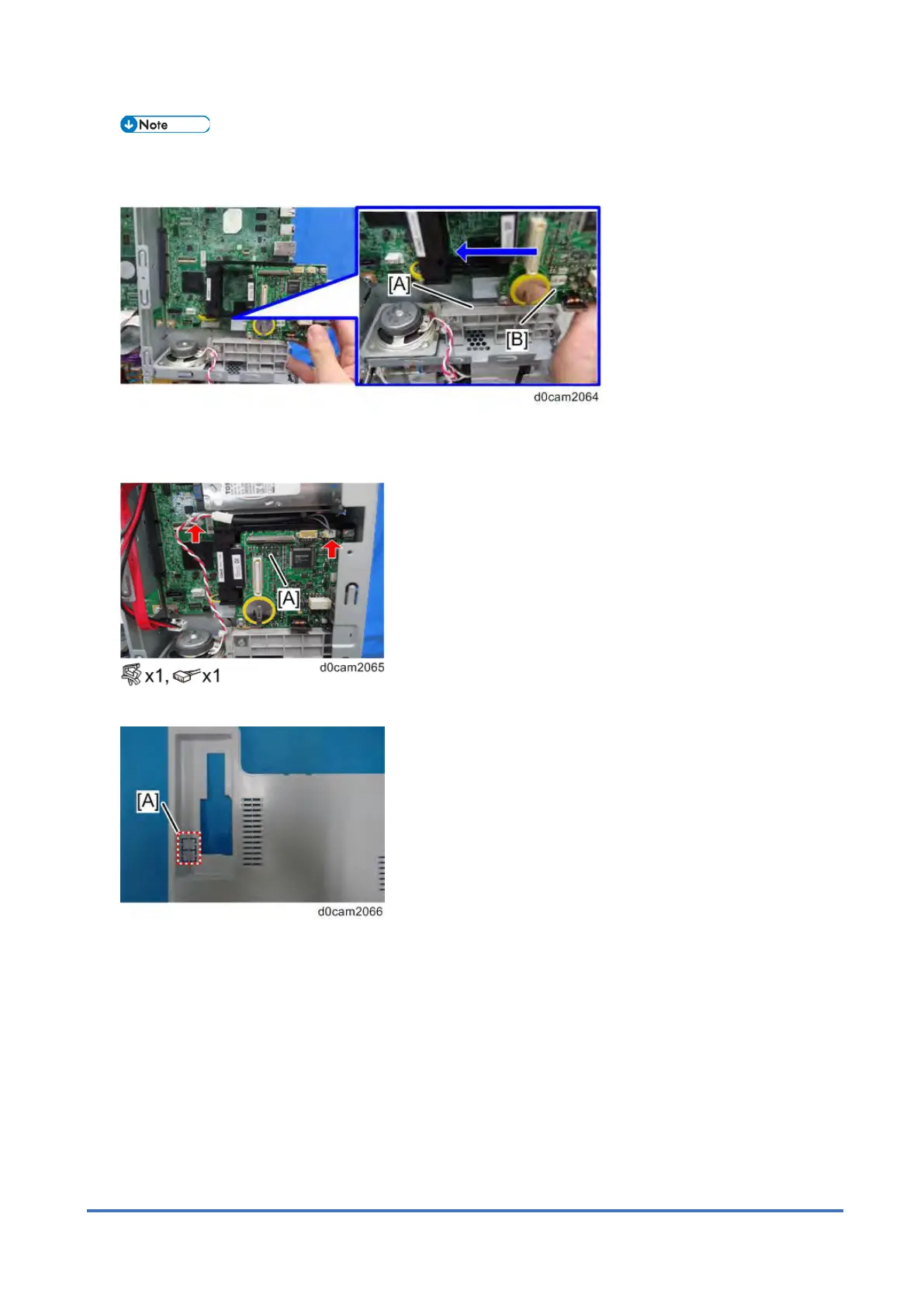

8. Slide the FCU (PCB2) [B] into the slot along the guide rails [A].
9. Attach the controller cover with the HDD removed in step 5.
10. Connect the harness to the FCU (PCB2) [A].
11. Open the line and telephone connector covers [A] with a flat-head screw driver.
12. Attach the left cover, upper left cover and rear cover.
