Ricoh IM C300

Anti-condensation Heater
D0CA/D0C9/D0C8/D0CB 2-110 SM

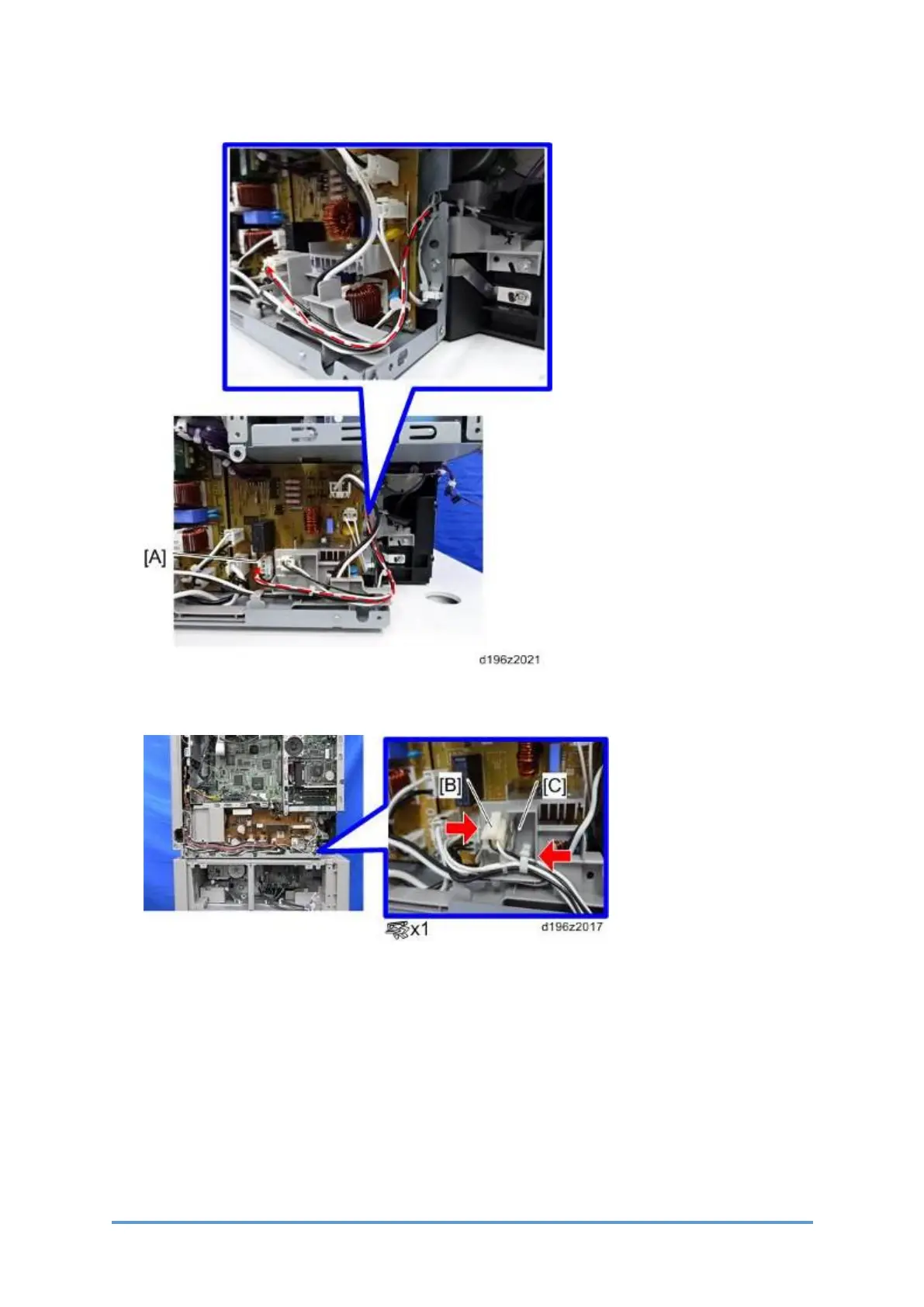

16. Connect the connector [A] shown in step 13 to CN600.
17. Connect the connector [B] in the holder [C].Do not attach the holder [C] to the PSU
(PCB17), when the dehumidification heater will be installed
