Controller Options
SM 2-143 D0CA/D0C9/D0C8/D0CB
Installing the antennae
1. Peel off the double-sided tapes on the hook and loop fasteners [A], and then attach them
[A] to the antennae.
Attach the fasteners to the lower half of the antennae (The side of cable).
You can attach the fasteners to either side of the antenna.

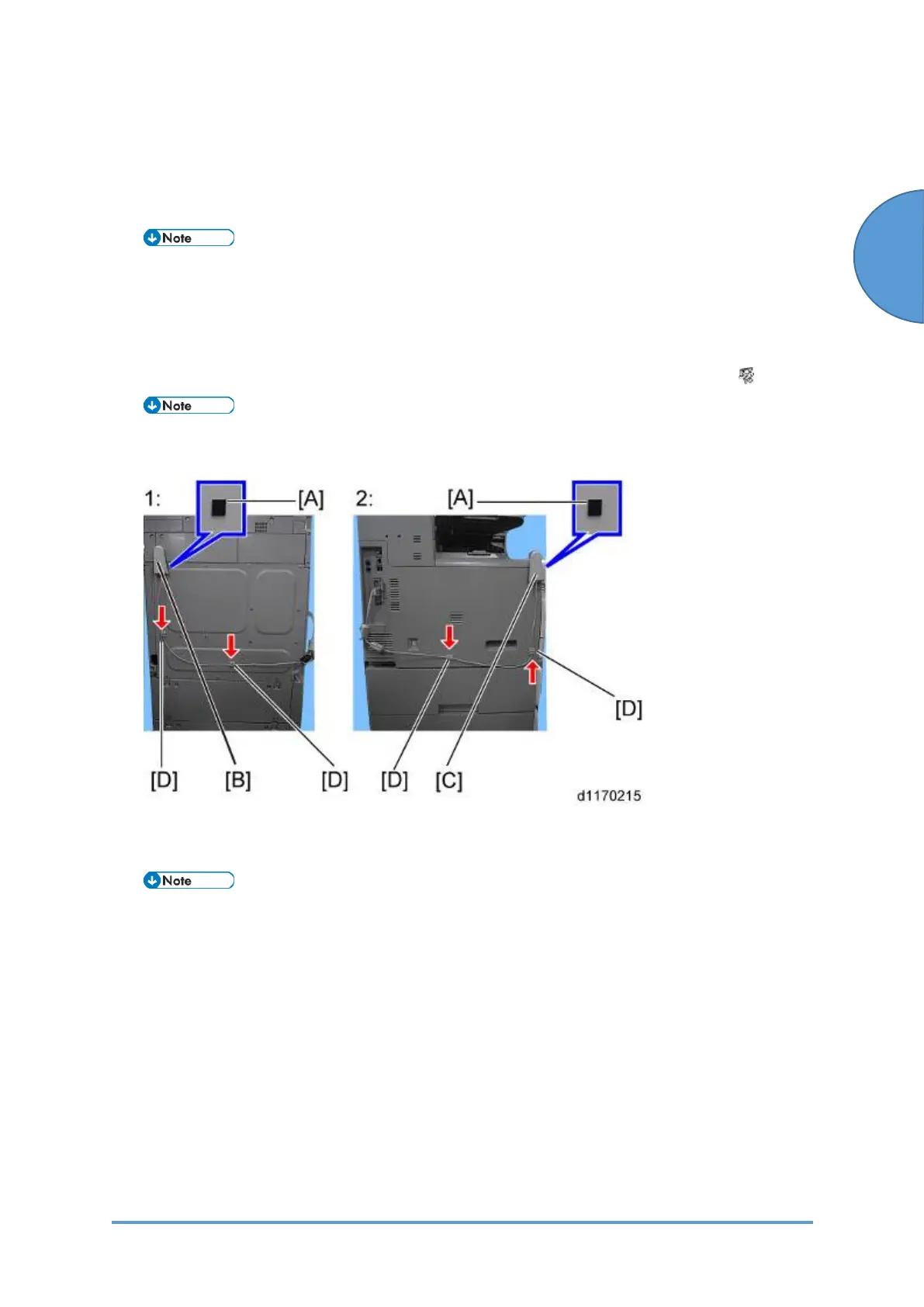

2. Attach "ANT1" (having a black ferrite core) [B] to the rear of the machine, and then attach
"ANT2" (having a white ferrite core) [C] to the front left (forward) of the machine.
3. Attach the clamps [D] as shown below, and then wire the cables and clamp them. ( × 4)
• "ANT1" is a transmission/reception antenna and "ANT2" is a reception antenna.
Do not attach them at the wrong places.
1: Rear
2: Left
Make sure that the cables are not slack. Keep them wired tightly along the covers.
4. Turn ON the power.
5. Make sure that the machine can recognize the option (see Check All Connections at the
end of this section).
You may have to move the machine if the reception is not clear.
• Make sure that the machine is not located near an appliance or any type of equipment that
generates strong magnetic fields.
• Put the machine as close as possible to the access point.
