Controller Options
SM 2-147 D0CA/D0C9/D0C8/D0CB

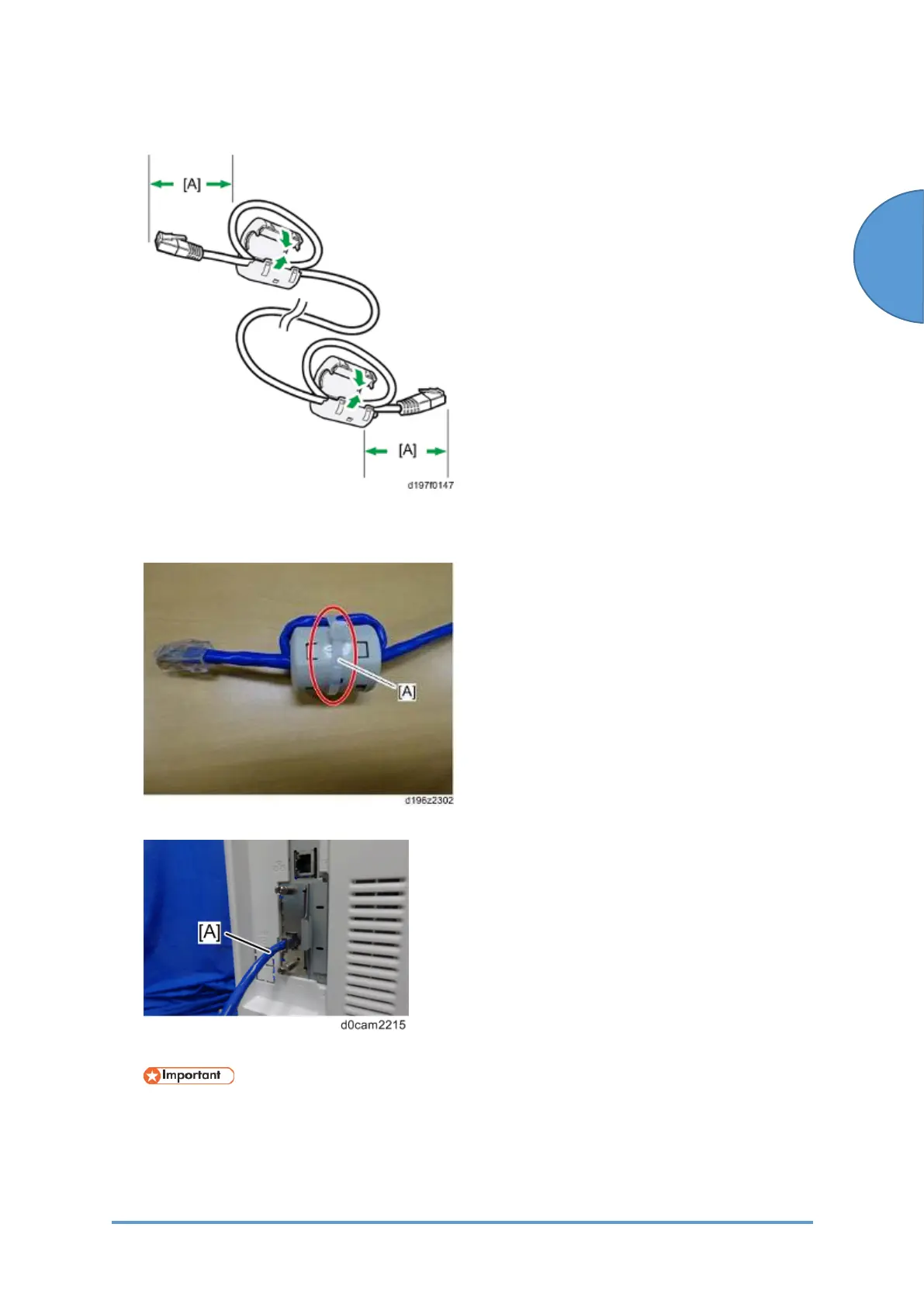

inch) [A] from each end of the cable.
4. Only for installing this option in North America, bind both cores with cable ties [A] as shown
below.
5. Insert the Ethernet cable [A] into the Ethernet port on this option.
6. Insert the other end of the Ethernet cable to a PC for network setting.
When you install this option on the main machine for the first time, the interface board must
be connected directly to the PC to set up the IP address and other network settings.
7. Plug the power cord and turn ON the power.
8. Make sure that the machine recognizes this option correctly by doing one of the following:
