Special Tool s
D0CA/D0C9/D0C8/D0CB 4-14 SM
Do NOT apply grease on the tips of the studs.

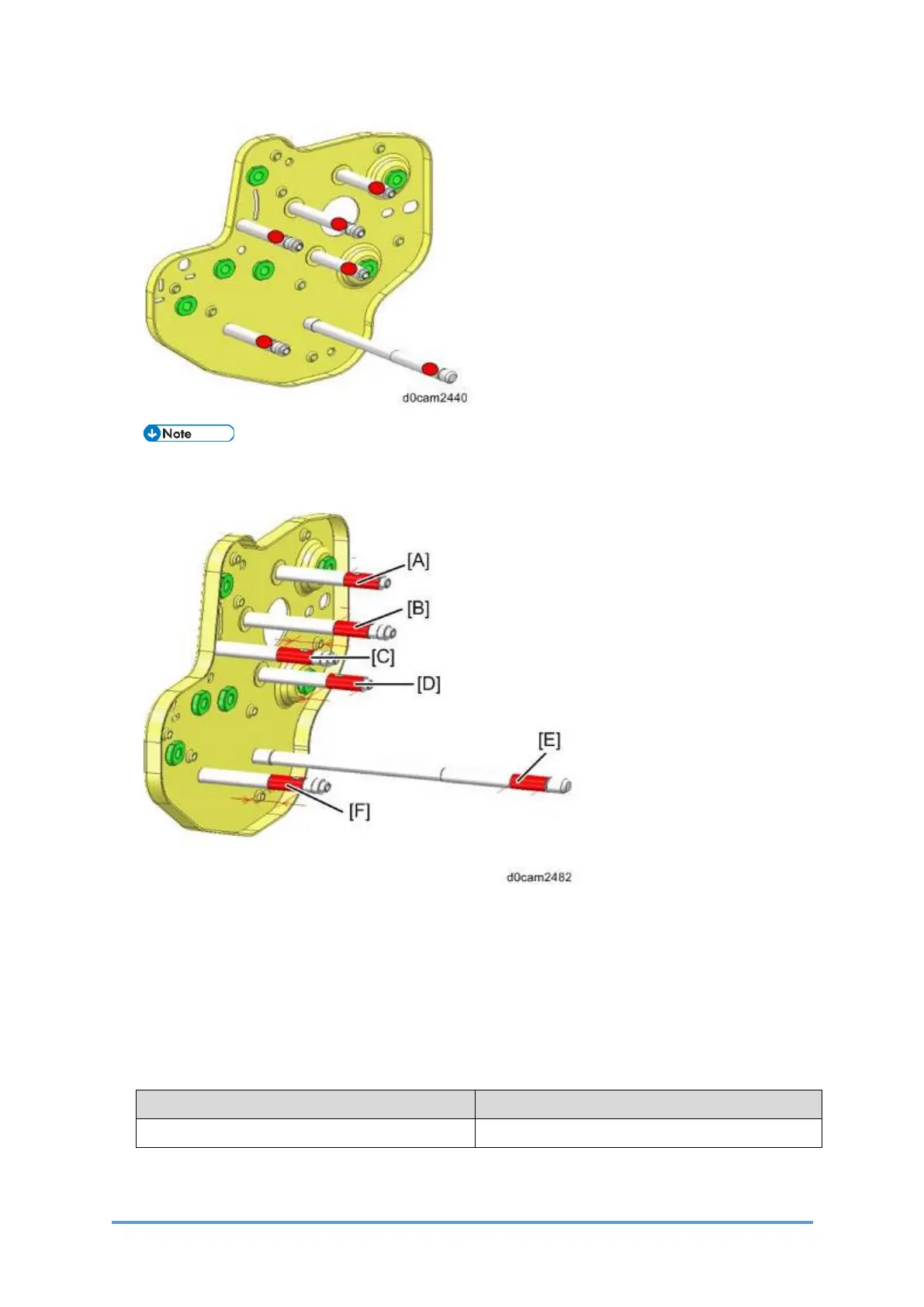

Apply grease in the range indicated in red in the following diagram.
• [A] The area 0-10 mm from the stepped part of the stud
• [B] The area 0-10 mm from the groove of the stud
• [C] The area 0-10 mm from the groove of the stud
• [D] The area 0-10 mm from the stepped part of the stud
• [E] The area 0-10 mm from the E-ring of the stud
• [F] The area 0-10 mm from the groove of the stud
• Transport Gear 01
Lubrication parts Lubrication spots
1 gear 4 spot
