Fusing
SM 4-161 D0CA/D0C9/D0C8/D0CB
&
Adjustment

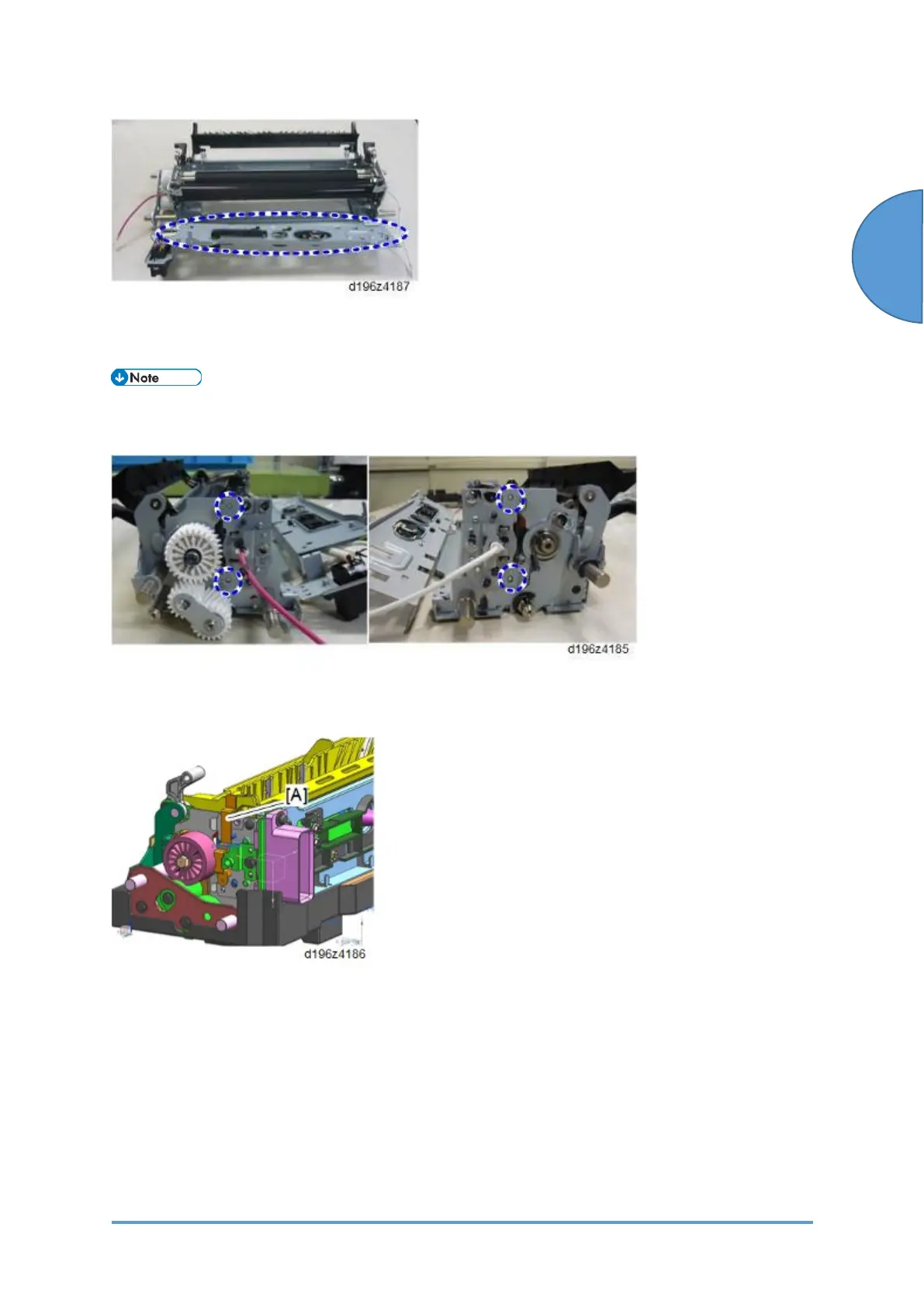

When reattaching the fusing sleeve belt assembly, do not let the fusing sleeve belt assembly hit
the projection of the sensor or the screws on the stay.
Make sure that both side plates fit right into the positioning bumps on the frame before securing
the screws.
The new fusing sleeve belt assembly has a jig [A] that must be removed. Set the fusing sleeve
belt assembly first, tighten the screws, and then remove the jig.
