Electrical Components
D0CA/D0C9/D0C8/D0CB 4-242 SM

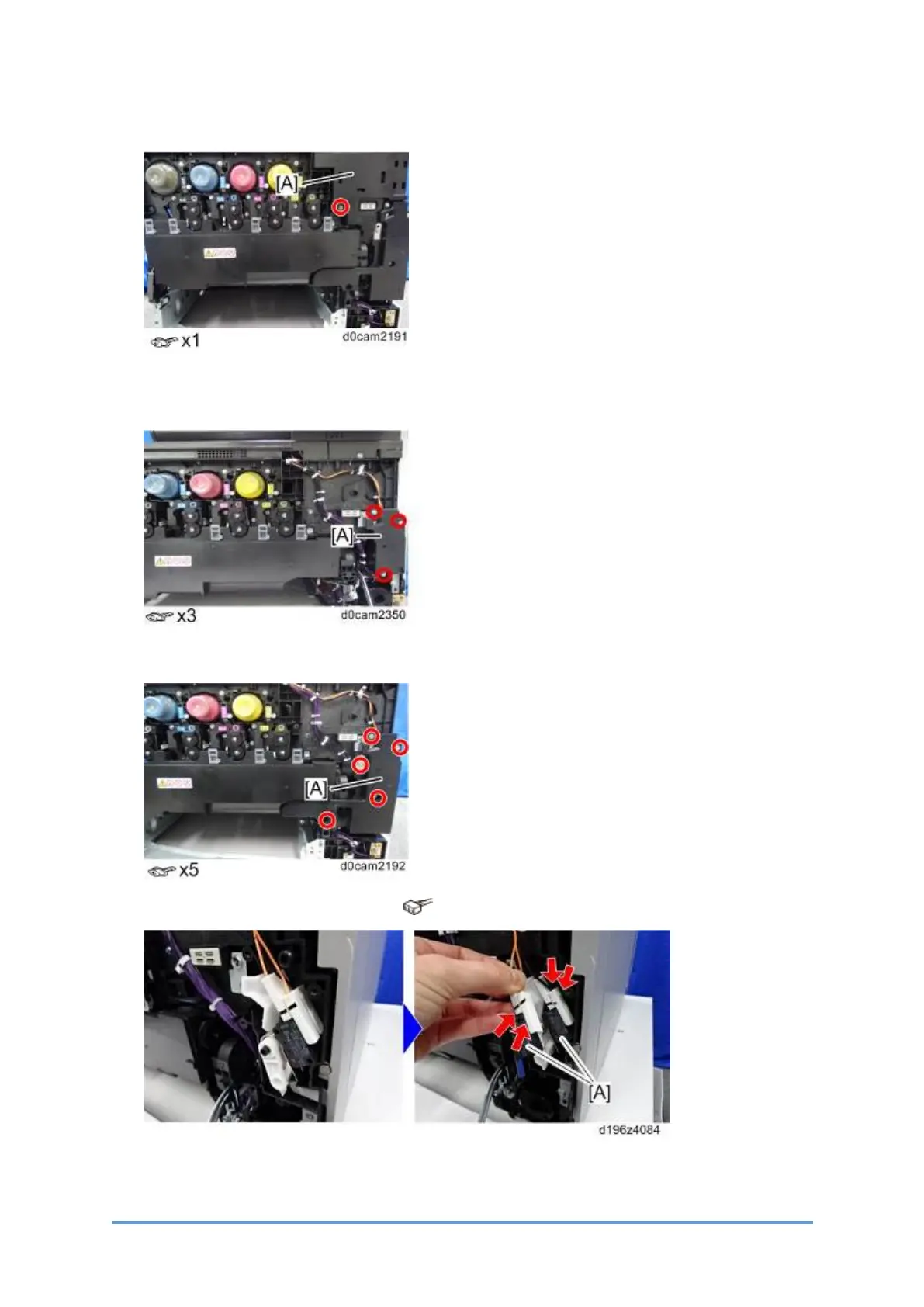

3. Remove the cover [A].
4. Remove the interlock switch cover [A].
IM C300 series
IM C400 series
5. Remove the Interlock switches [A]. ( × each 2)
