Electrical Components
D0CA/D0C9/D0C8/D0CB 4-244 SM

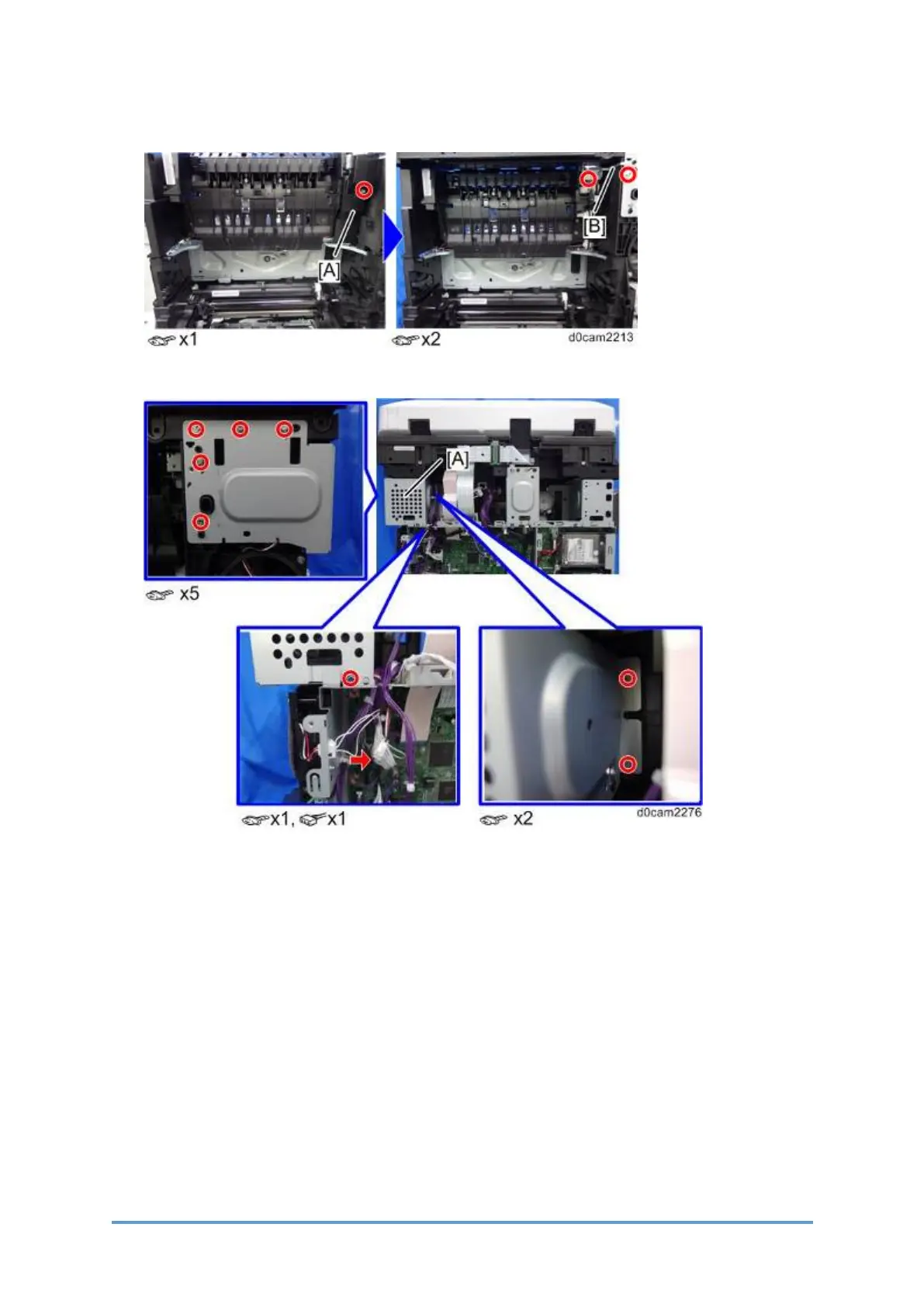

8. Remove the grounding plate [B].
9. Remove the paper exit exhaust fan (FAN5) with the bracket [A].
