The specified bandwidth indicates the range of frequencies that the instrument can
acquire and display accurately with less than 3dB attenuation. The probe has also a
limited bandwidth and thus affects the resulting system bandwidth.
See also: Chapter 5.1.1.3, "Bandwidth", on page 133
"Full"
At full bandwidth, all frequencies in the specified range are acquired
and displayed. Full bandwidth is used for most applications.
"20 MHz, 200 MHz, 800 MHz"
Frequencies above the selected limit are removed to reduce noise at
different levels.
Remote command:
CHANnel<m>:BANDwidth on page 1202
Effective bandwidth
Displays the effective bandwidth.
5.5.3 Probes settings
See Chapter 5.6, "Probes", on page 164.
5.5.4 Other settings

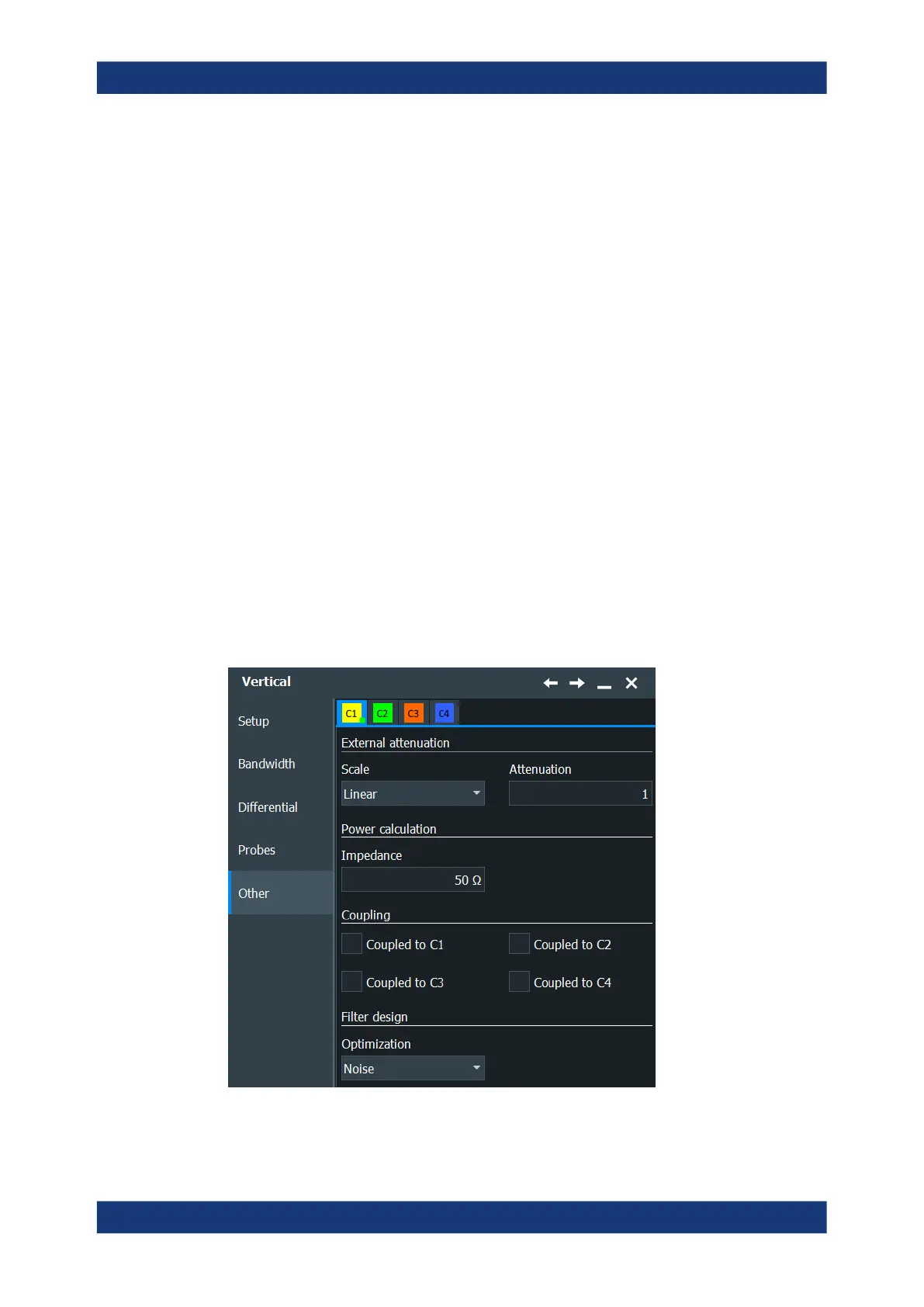

Access: "Menu" > "Vertical" > "Other"
