Protocol analysis
R&S
®
RTP
544User Manual 1337.9952.02 ─ 12

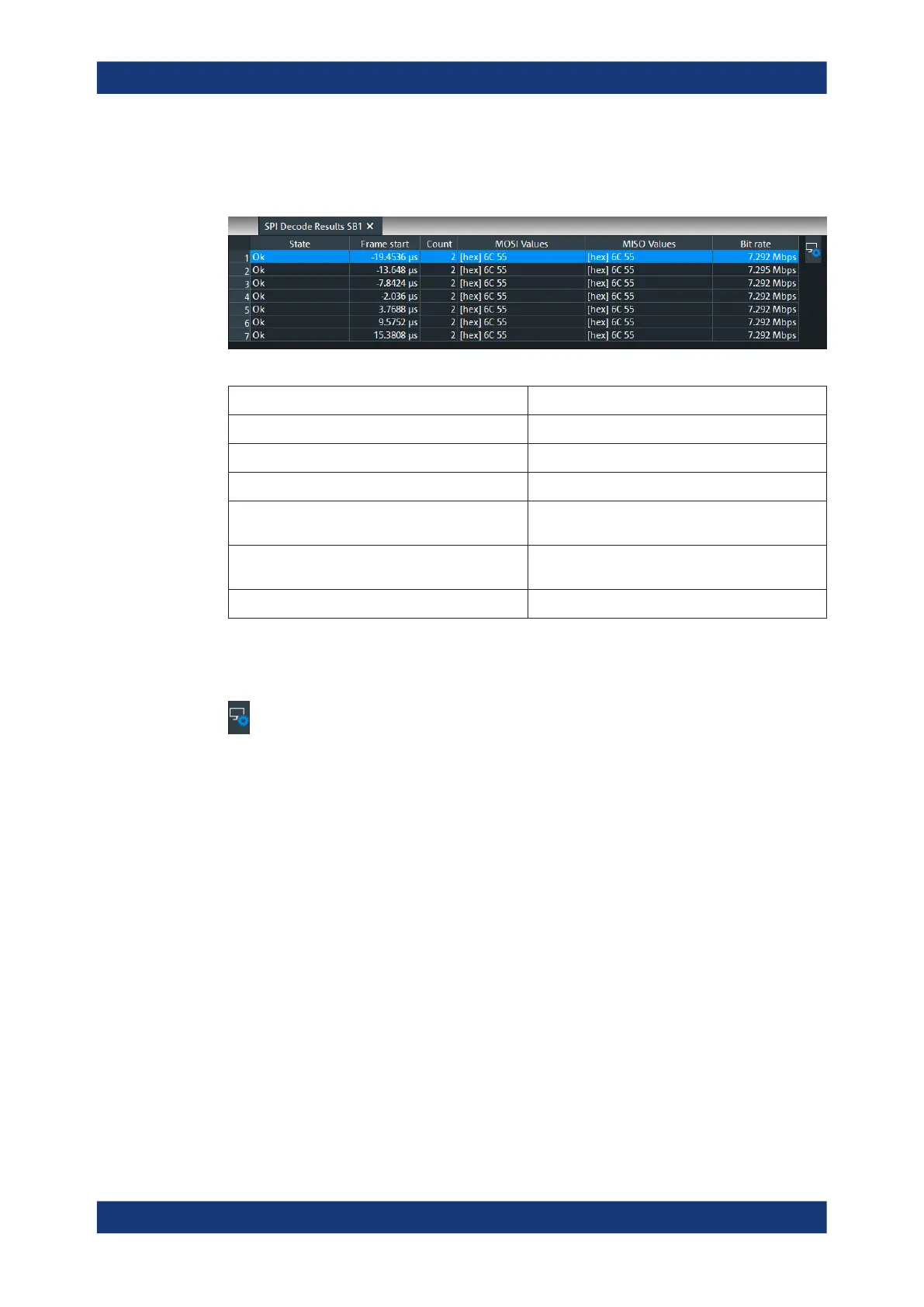

Decode Results Table
The "Decode results" table contains information about all decoded frames.
Table 13-4: Content of the "Decode results" table
Column Description
State Overall state of the frame
Frame start Times of frame start and frame end
Count Number of words in the frame
MOSI values Value of the MOSI data words. The data format is
selected below the table.
MISO values Value of the MISO data words. The data format is
selected below the table.
Bit rate Value of the bit rate
Tools
Press "Display settings" in the "Deode Reults" table, to access the "Display" tab.
Remote commands
Remote commands to retrieve decode results are described in Chapter 22.17.4.3, "SPI
decode results", on page 1593.
13.3.5 Search on decoded SPI data
Using the search functionality, you can find various events in the decoded data, the
same events which you also can trigger on. Before you can start the search, you have
to configure the bus correctly and acquire decoded data.
To search on decoded data, set the search "Source" to the serial bus that is configured
for the protocol to be analyzed.
See also Chapter 11, "Search functions", on page 448.
13.3.5.1 SPI search setup
Access: [Protocol] > "Shortcuts" tab > "Setup search"
SPI bus (option R&S
RTP-K1)
