Labels
For each waveform, the "Labels" table shows the assigned texts and their positions.
Enter the label text and the horizontal and vertical positions for each label.
"Add"
Adds a line at the end of the list.
"Copy"
Copies the selected line in a new line.
"Remove"
Deletes the selected line. Only single lines can be removed.
You can also delete a label by using the toolbar: Tap the "Delete" icon
and then the label.
Remote command:
DISPlay:SIGNal:LABel:ADD on page 1169
DISPlay:SIGNal:LABel:REMove on page 1171
DISPlay:SIGNal:LABel:TEXT on page 1172
DISPlay:SIGNal:LABel:HORizontal:ABSolute:POSition on page 1173
DISPlay:SIGNal:LABel:VERTical:ABSolute:POSition on page 1173
DISPlay:SIGNal:LABel:HORizontal:RELative:POSition on page 1173
DISPlay:SIGNal:LABel:VERTical:RELative:POSition on page 1173
4.3.6 Dialogs appearance settings

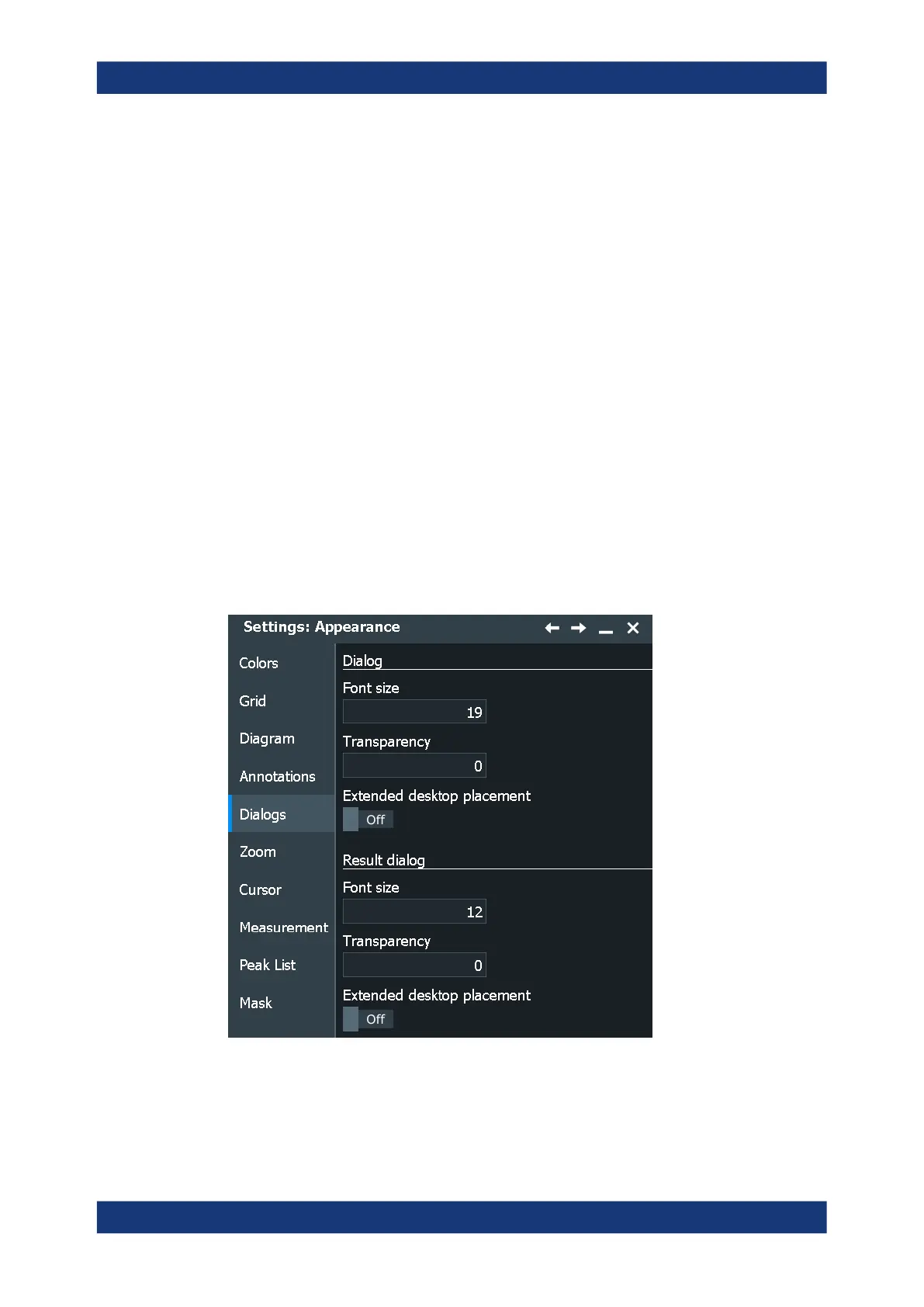

Access: "Settings" > "Appearance" > "Dialogs" tab
Dialog
With these settings, you can change the appearance of the dialogs.
Appearance settings
