13.10.5 Search on decoded 100BASE-T1 data
Using the search functionality, you can find various events in the decoded data. You
can find the same events that you can trigger on, and even many more, since several
event types can also be combined.
Before you can start the search, you have to configure the bus correctly and acquire
decoded data.
To search on decoded data, set the search source to "SerBus" for the configured proto-
col.
For general information on how to handle the search functionality, see Chapter 11,
"Search functions", on page 448.
13.10.5.1 100BASE-T1 search setup

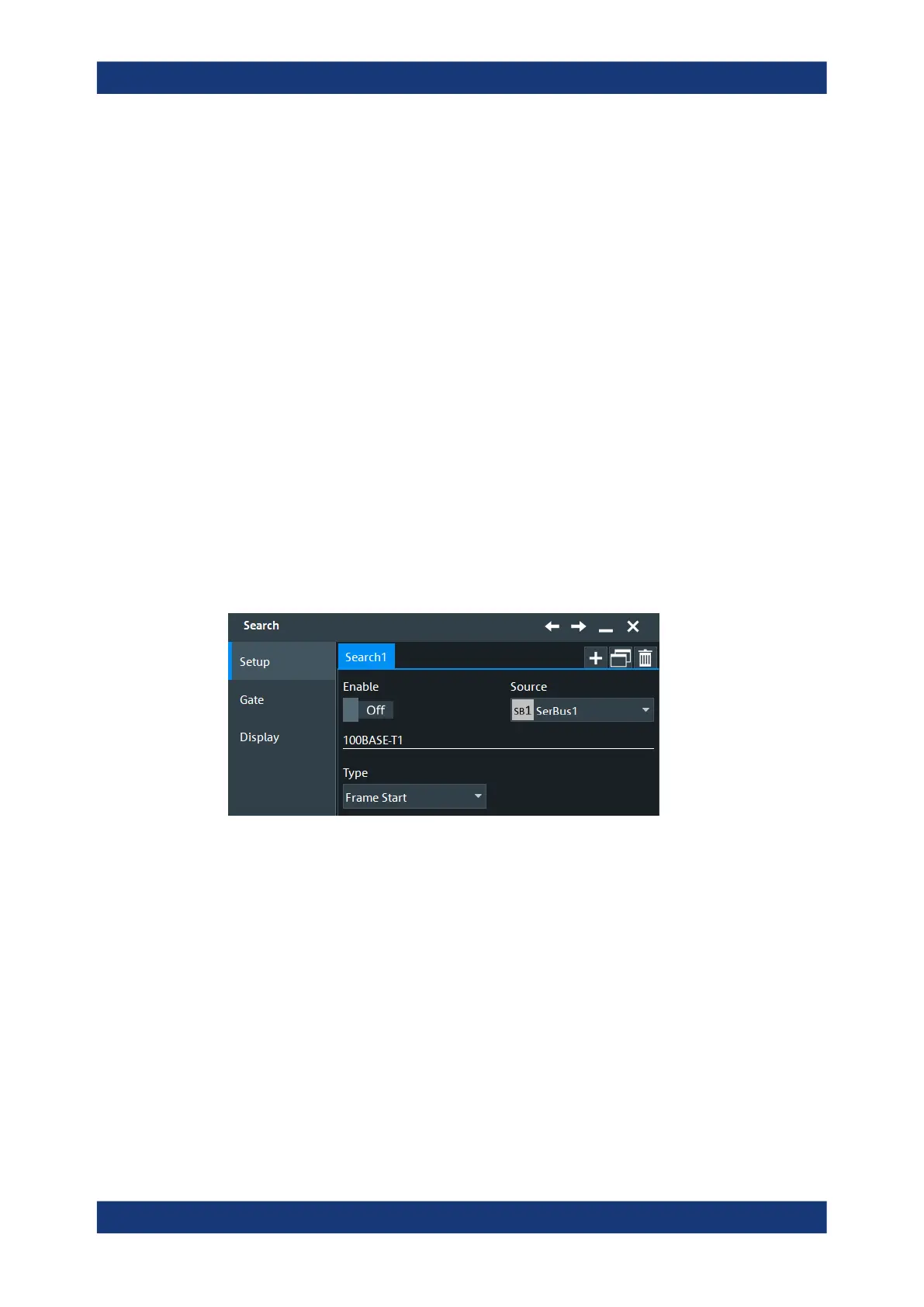

Access: [Protocol] > "Shortcuts" tab > "Setup search"
Enable
Enables the search for 100BASE-T1.
Type
Selects the search type for 100BASE-T1 analysis.
Remote command:
SEARch:TRIGger:HBTO:TYPE on page 1768
Frame Start ← Type
Searches for the start of frame.
MAC Frame ← Type
Searches for a Media Access Control (MAC) frame that matches the specified Destina-
tion address, Source address, Length/Type, Frame check, Data or Index condition.
Ethernet 100BASE-T1 (option R&S
RTP-57)
