Rohde & Schwarz RTP Series - Triggering on Digital Signals and Parallel Buses; Measurements on Digital Channels

Mixed signal option (MSO, R&S RTP-B1)
R&S
®
RTP
950User Manual 1337.9952.02 ─ 12
Remote command:
TRIGger<m>:PARallel:SPATtern:PATTern on page 2217
14.3.2 Triggering on digital signals and parallel buses
For a detailed description of the settings, see Chapter 14.3.1, "Trigger settings for digi-
tal signals and parallel buses", on page 938.
1. Open "Menu">"Trigger" > "Setup" tab
2. Select the trigger "Source":
● One of the digital channels "D0" ... "D15"
D2
D0 D1
● A logic combination of digital channels: "Logic"
● One of the parallel buses "Par. bus1" ... "Par. bus4"
PB
3
PB
2
PB
1
3. Select the trigger "Type".
4. Under "Trigger type dependent settings", configure the trigger.

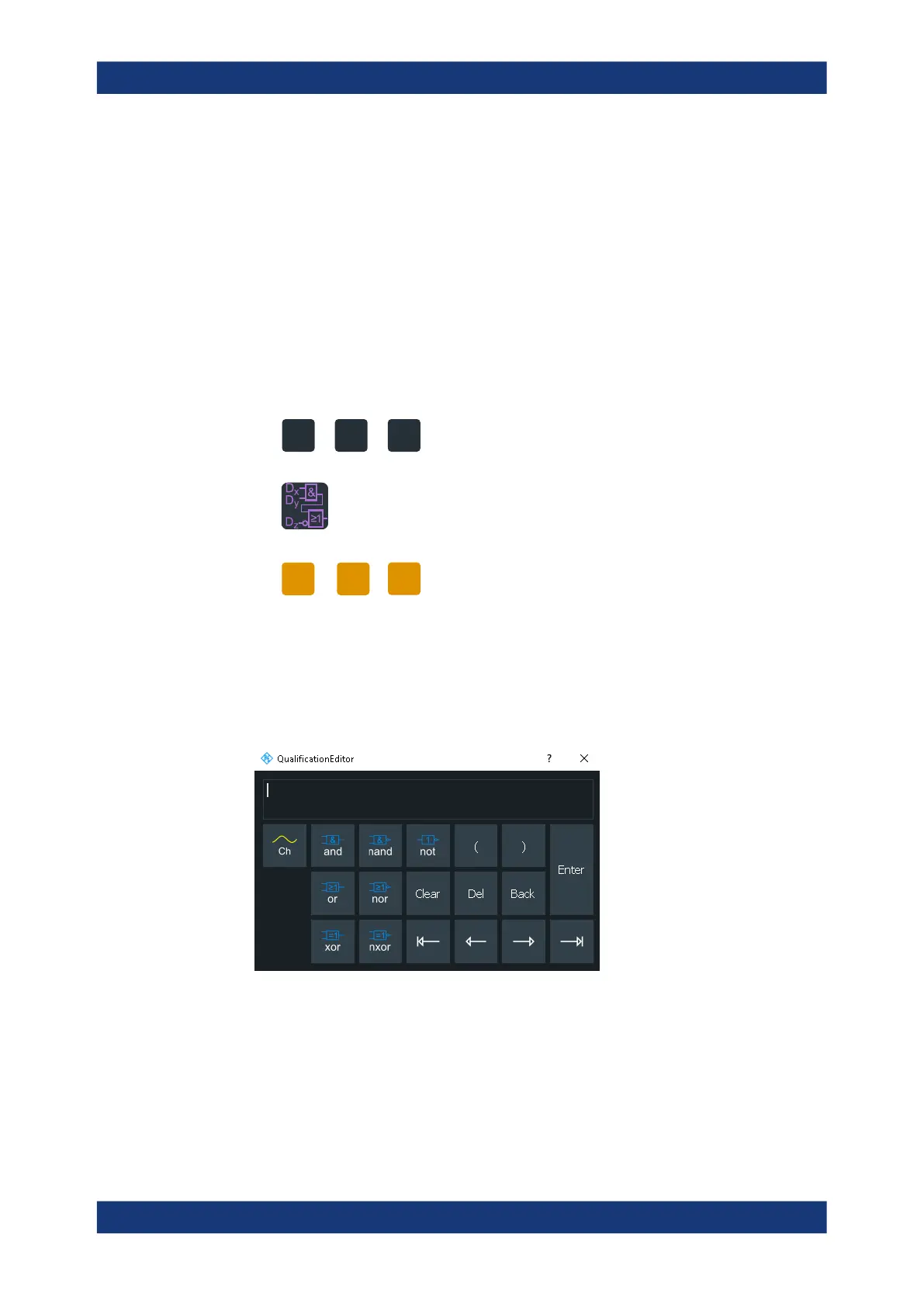

5. For trigger source "Logic", enter the logical expression of the digital channel combi-
nation. Tap and hold the "Logical expression" field until the "Qualification Editor"
opens. It provides all logic operators that can be used in the expression.
14.4 Measurements on digital channels
For measurements on digital channels, the number of measurement categories and
types is reduced to applicable measurement.
Measurements on digital channels
