13.11.3.2 Triggering on 1000BASE-T1
Prerequisite: A bus is configured for the 1000BASE-T1 signal to be analyzed.
For the basic trigger settings, proceed in the following way:
1. Press the [Protocol] key and selet the "Shortcuts" tab.
2. Press "Setup trigger".
3. Tap the "Source" button and select the "Serial bus" trigger source.
4. Select the serial bus that is set to 1000BASE-T1.
5. Tap "Type" and select the trigger type to be used for 1000BASE-T1 protocol analy-
sis.
6. To refine the trigger settings, configure additional settings, which are available for
some trigger types.
For details, see Chapter 13.11.3, "1000BASE-T1 trigger", on page 664.
13.11.4 1000BASE-T1 decode results
When the configuration of the serial bus is complete, the signal can be decoded:
1. In the "Serial Bus" dialog > "Setup" tab, enable "Decode".
2. In the "Serial Bus" dialog > "Display" tab, select additional result display settings:
"Show table" and "Show binary".
3. If required, enable "Zoom coupling"
For a description of the display settings, see also Chapter 13.1.3, "Display",
on page 514.
The instrument captures and decodes the signal according to the standard definition
and the configuration settings.
The color-coding of the various protocol sections and errors simplifies the interpretation
of the visual display. The decode information condenses or expands, depending on the
horizontal scale. Various data formats are available to show the result values.
Decode Results Table

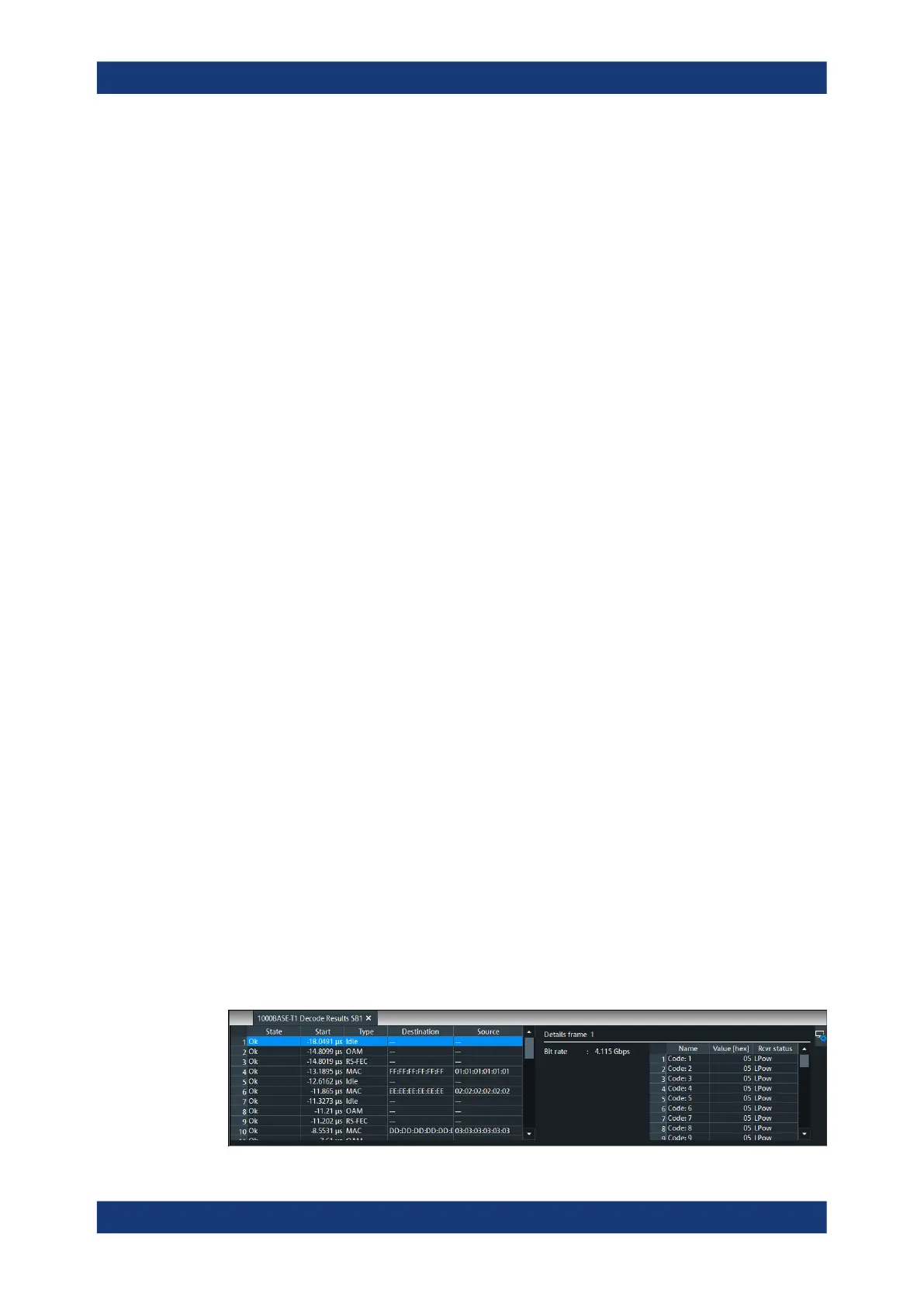

The example shows decoded signals in 1000BASE-T1.
Ethernet 1000BASE-T1 (option R&S
RTP-K58)
