Protocol analysis
R&S
®
RTP
623User Manual 1337.9952.02 ─ 12
# ----------------------------------------------------------------------------
# Labels for ARINC 429 protocol
# Column order: Arinc Label, Symbolic Label
# ----------------------------------------------------------------------------
# ----Definition----
001o, Distance to Go
002o, Time to Go
010o, Present Position - Latitude
011o, Present Position - Longitude
014o, Magnetic Heading
015o, Wind Speed
075o, Gross Weight
125o, Universal Time Coordinated
# ----------------------------------------------------------------------------
s
See also: Chapter 13.1.4, "Content and format of the PTT file", on page 515.
Remote command:
●
BUS<m>:ARINc:WORD<n>:SYMBol? on page 1721
13.8.5 ARINC 429 decode results
When the configuration of the serial bus is complete, the signal can be decoded:
1. In the "Protocol" dialog > "Setup" tab, enable "Decode".
2. In the "Protocol" dialog > "Display" tab, select additional result display settings:
"Show decode table" and "Show binary signals".
For a description of the display settings, see also Chapter 13.1.3, "Display",
on page 514.
The instrument captures and decodes the signal according to the standard definition
and the configuration settings.
The color-coding of the various protocol sections and errors simplifies the interpretation
of the visual display. The decode information condenses or expands, depending on the
horizontal scale. Various data formats are available to show the result values.

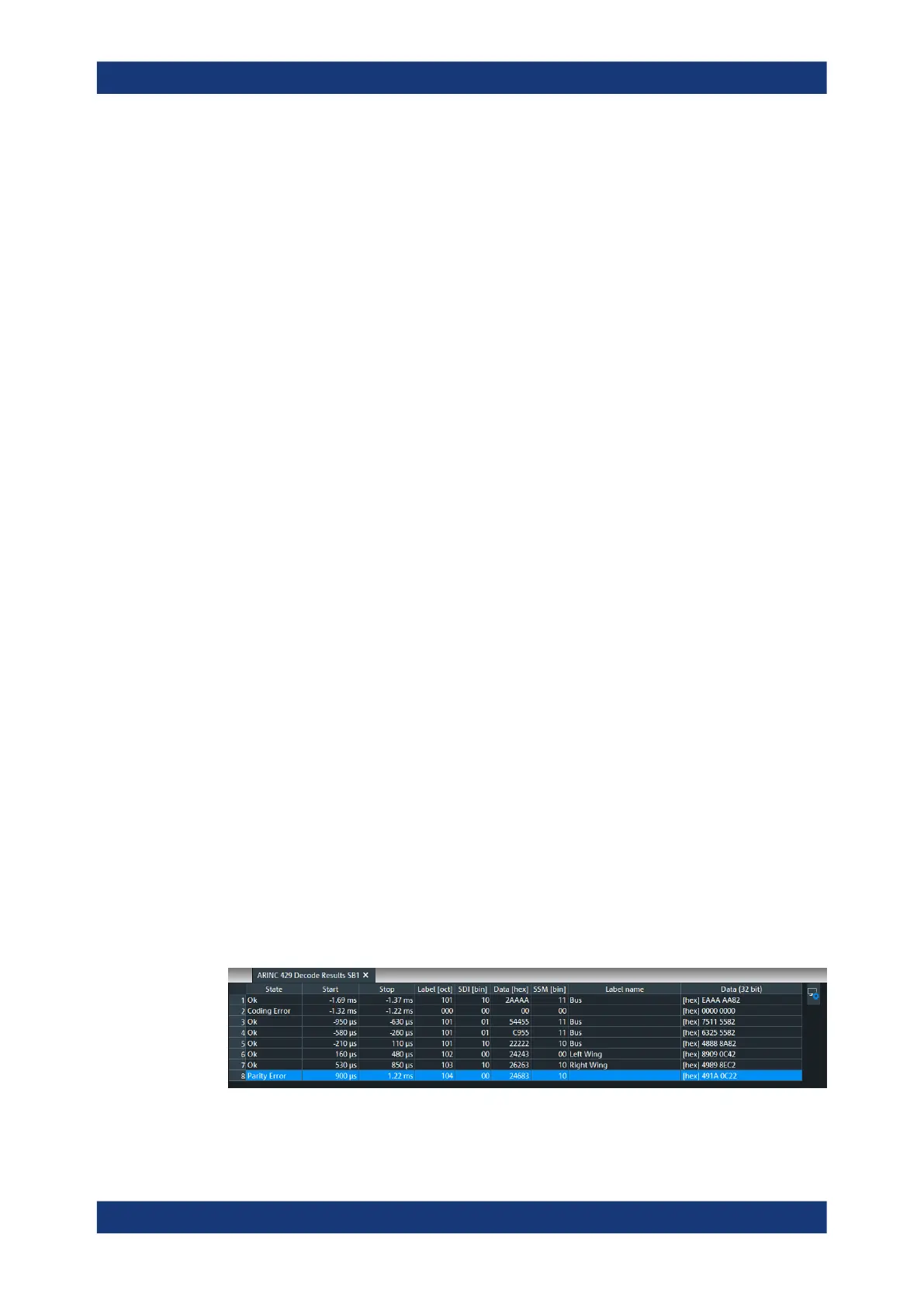

Decode Results Table
The "Decode results" table contains information about all decoded frames.
ARINC 429 (option R&S RTP-K7)
