Rohde & Schwarz RTP Series User Manual

Waveform generator (Option R&S RTP-B6)
R&S
®
RTP
981User Manual 1337.9952.02 ─ 12

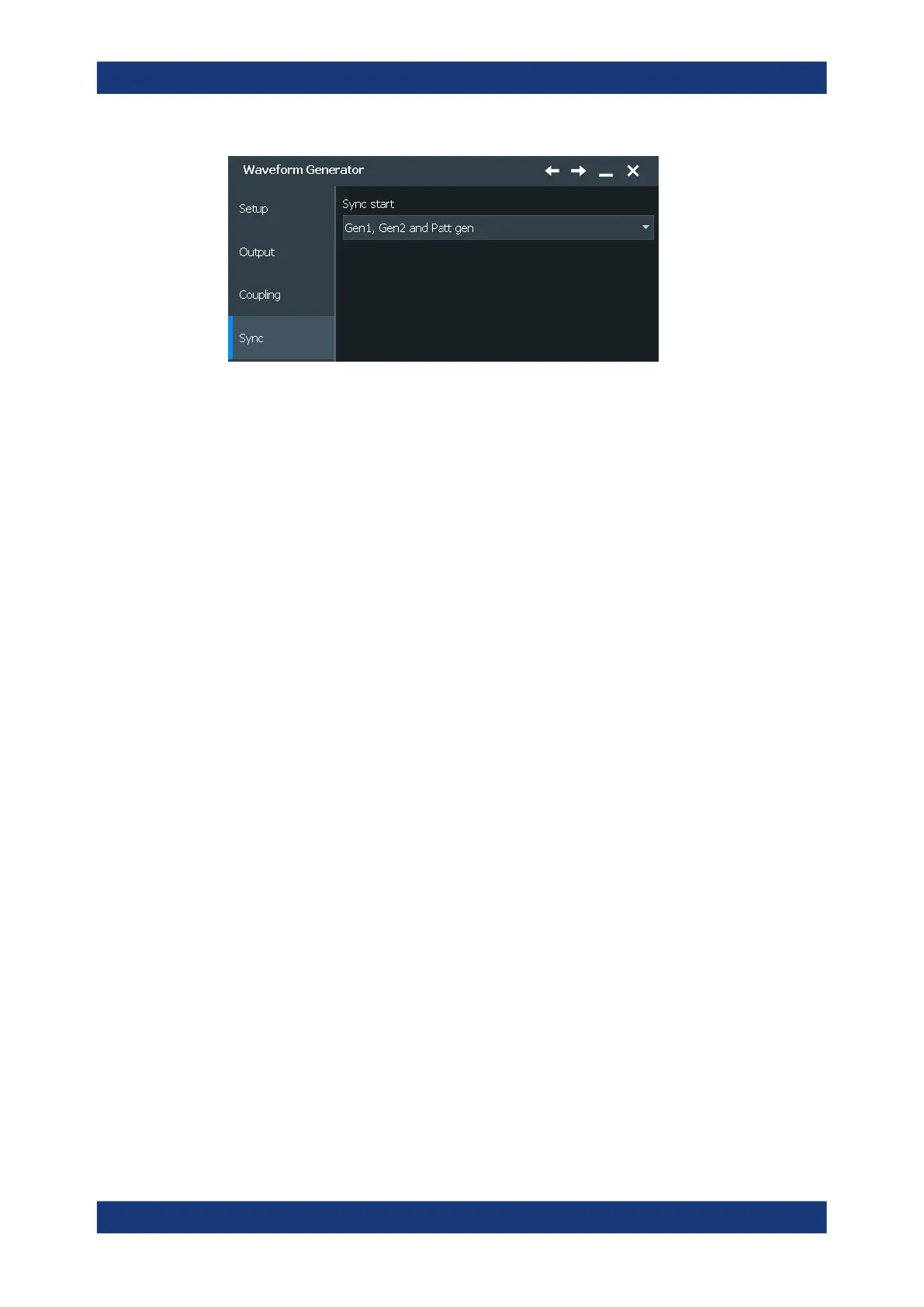

Sync start
Selects, which signals generated from the waveform generator are synchronized.
Selecting one of the sync options indicates that the first samples of those signals are
generated at the same time, irrespective of if the generators are on or off. Selecting
one of the coupling options automatically syncs the signals generated by the two wave-
form generators.
Remote command:
GENerator:SYNC[:COMBination] on page 2240
15.6 Configuring the waveform generator
This chapter explains step-by-step how to configure the waveform generator.
● Configuring a function waveform...........................................................................981
● Configuring a modulation waveform......................................................................982
● Configuring a sweep waveform.............................................................................983
● Configuring an arbitrary waveform........................................................................983
● Configuring a pattern generator waveform............................................................984
15.6.1 Configuring a function waveform
1. Open "Menu" > "Apps" > "Generators" > "Gen1".
2. Select the "Setup" tab.
3. Under "Operation mode", enable the "Function Gen." button.
4. Select the "Function type" that you want to generate, e.g. "Sine".
5. Depending on the selected "Function type", configure the settings of the waveform
like "Frequency" and "Period".
6. If necessary, change the "Output" settings or add "Noise" to the waveform.
Configuring the waveform generator

Rohde & Schwarz RTP Series Specifications

General

Memory Depth	Up to 2 Gsample
Input Impedance	50 Ω, 1 MΩ
Operating System	Windows 10
Channels	4
Maximum Sample Rate	20 Gsample/s
Display Type	Touchscreen
Protocols	I2C, SPI, UART, CAN, LIN, FlexRay, USB, Ethernet
Trigger Types	Edge, Pulse
Protocol Analysis	Yes
