Data and file management
R&S
®
RTP
473User Manual 1337.9952.02 ─ 12
The R&S RTP provides the following types of saving and restoring settings:
●
Savesets contain the complete instrument and measurement configuration except
for user-specific display settings.
●
One File contains the saveset and active reference waveform files in a ZIP file.
●
User preferences contain the user specific display settings.
●
User-defined presets contain the complete instrument setup including display set-
tings, except for transparency and intensity. These settings can be restored by
pressing the [Preset] key. See Chapter 4.6, "Preset setup", on page 120.
● Savesets............................................................................................................... 473
● One File.................................................................................................................474
● User preferences...................................................................................................476
● Saveset with preview function...............................................................................477
● Saving and loading settings.................................................................................. 478
12.1.1 Savesets
Savesets contain the complete instrument and measurement configuration including a
screenshot of the current display, but except for user-specific display settings stored as
user preferences. You can save an unlimited number of setting files.
The waveform generator/pattern generator and the pulse source state is saved as
"Off".
To load a saveset quickly, you can use the "Load saveset" function on the toolbar. A
graphical preview helps you to find the required settings file.

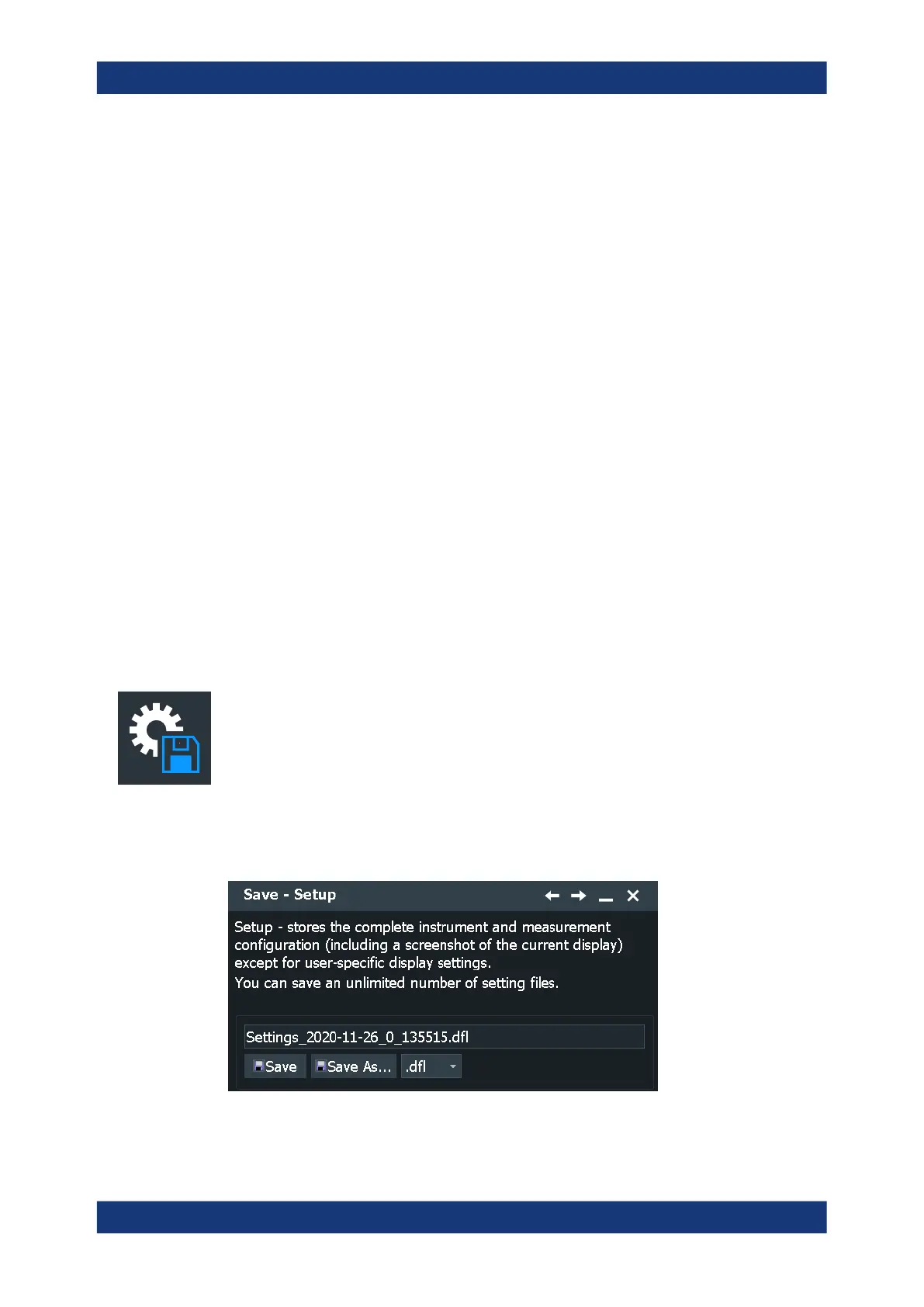

If you need to store the instrument settings often, you can add the " Save settings" icon
to the toolbar and use the icon to store the saveset file.
12.1.1.1 Save saveset settings
Access: "Menu" key > "Save/Recall" key > "Save" tab > "Savesets"
Save and recall user settings
