6.11.1 Probe setup: Extern tab

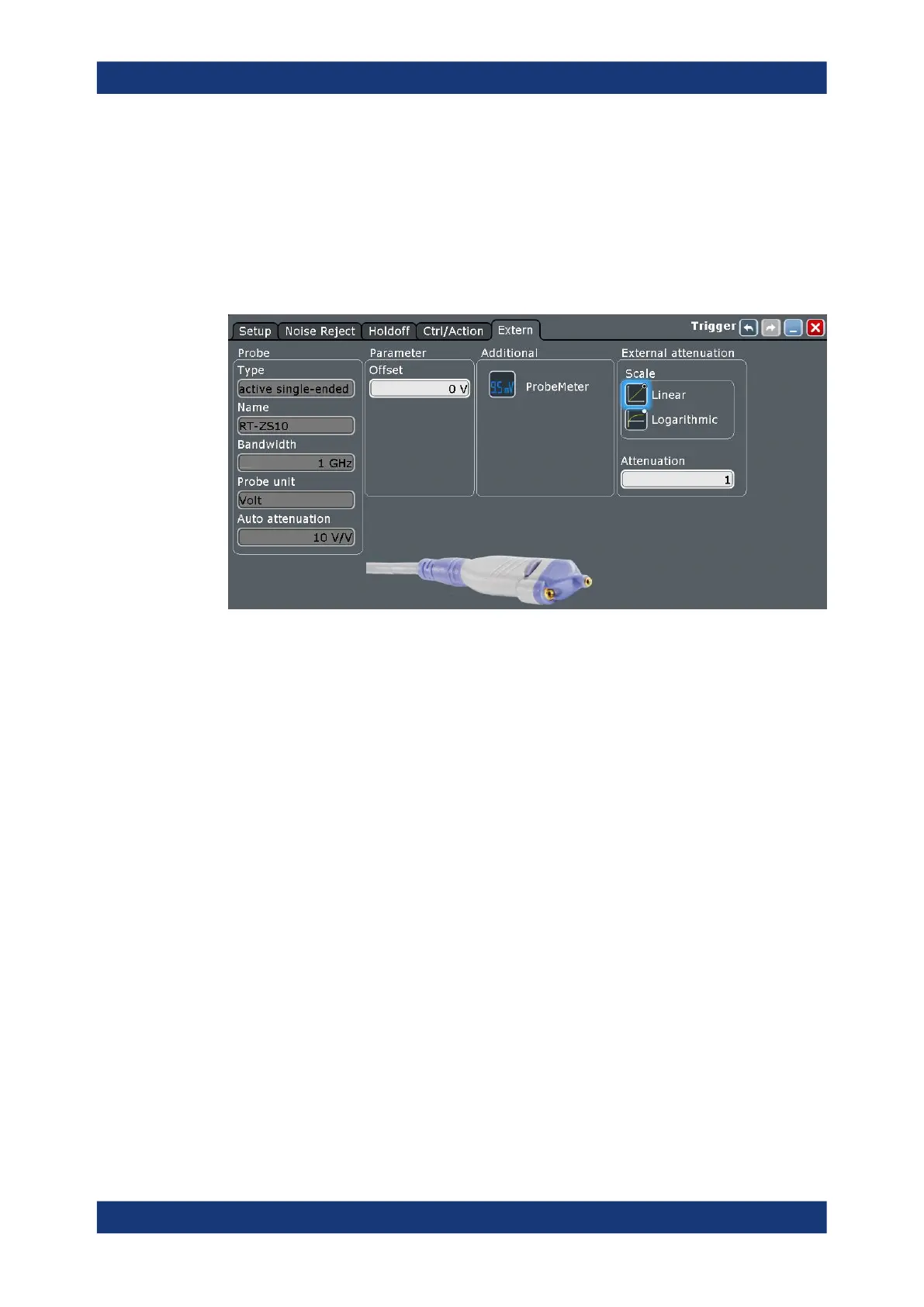

The "Trigger" > "Extern" tab provides all settings that are relevant for the probe that is
connected to the external trigger input. The functionality on the tab changes according
to the type of the attached probe. They are the same as for probe setup of input chan-
nels: see Chapter 5.6, "Probes", on page 164.
If the external trigger input is overloaded, a message informs you.
Remote commands:
●
TRIGger<m>:EXTern:OVERload on page 1317
●
TRPRobe:ID:PARTnumber? on page 1227
●
TRPRobe:SETup:STATe? on page 1206
●
TRPRobe:SETup:TYPE? on page 1207
●
TRPRobe:SETup:ATTenuation:DEFProbe on page 1224
●
TRPRobe:SETup:ATTenuation:MANual on page 1214
●
TRPRobe:SETup:ATTenuation:MODE on page 1214
●
TRPRobe:SETup:ATTenuation:UNIT on page 1214
●
TRPRobe:SETup:ATTenuation[:AUTO]? on page 1207
●
TRPRobe:SETup:NAME? on page 1207
●
TRPRobe:SETup:BANDwidth? on page 1207
●
TRPRobe:SETup:CMOFfset on page 1215
●
TRPRobe:SETup:GAIN:MANual on page 1215
●
TRPRobe:SETup:ZAXV on page 1216
R&S ProbeMeter: remote commands:
●
TRPRobe:SETup:DISPlaydiff on page 1211
●
TRPRobe:PMETer:VISibility on page 1211
●
TRPRobe:PMETer:RESults:COMMon? on page 1212
●
TRPRobe:PMETer:RESults:DIFFerential? on page 1212
External trigger input
