the CAN FD frame, the first enabling the new frame format with different data length
coding and the second optionally switching to a faster bit rate after the arbitration is
decided. New CRC polynomials are introduced to secure the longer CAN FD frames.
13.5.2 CAN and CAN FD configuration
13.5.2.1 CAN and CAN FD configuration settings
Access: [Protocol] key > "Setup" tab > "Protocol" = "CAN" or "CAN/CAN-FD"
Make sure that the tab of the correct serial bus is selected.

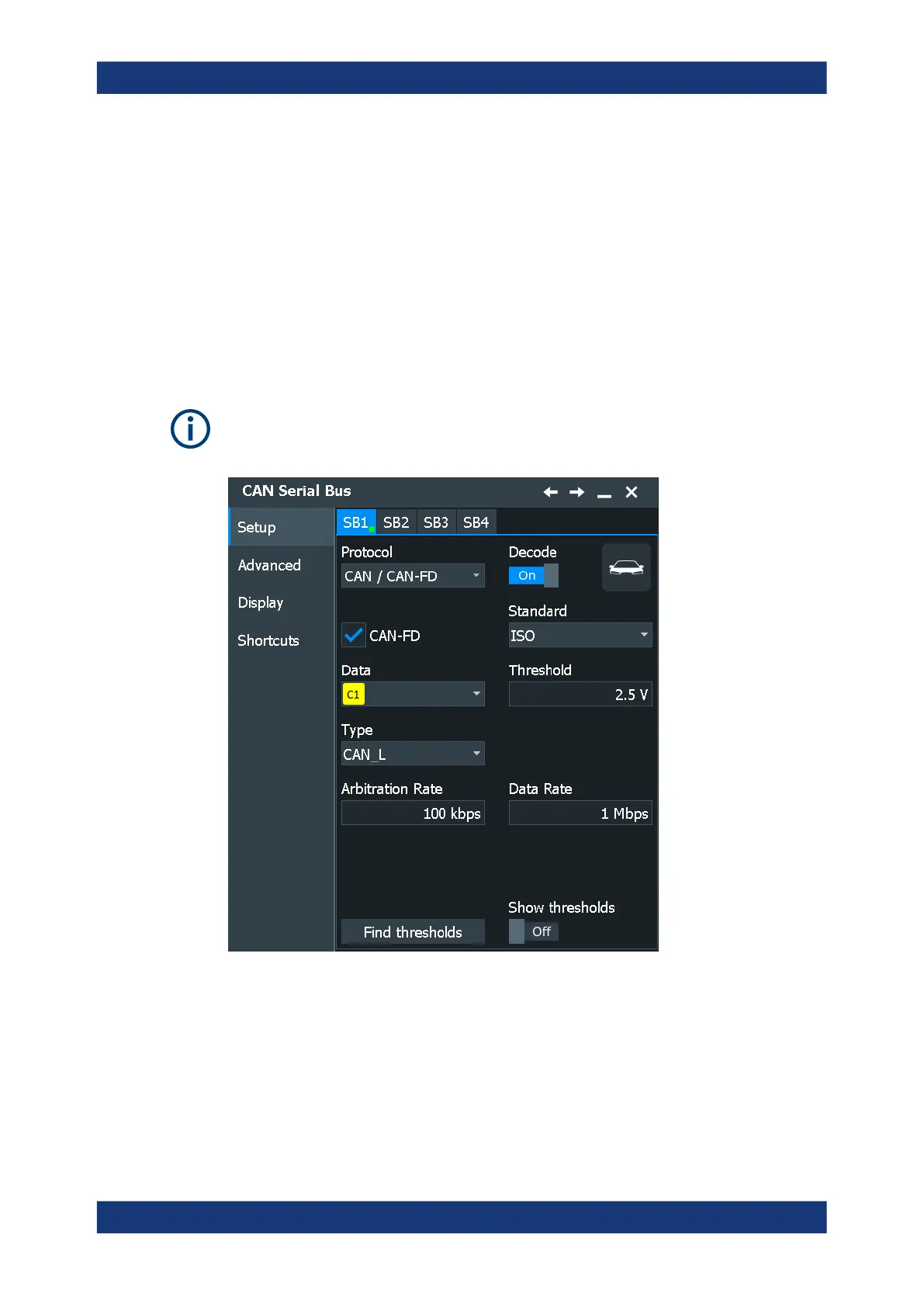

Figure 13-6: Configuration for CAN FD
CAN and CAN FD (option R&S RTP-K3/K9)
